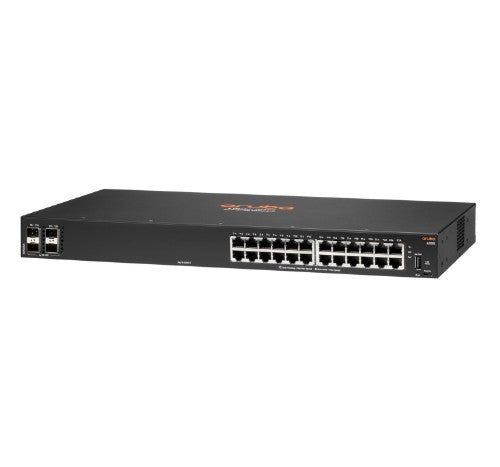

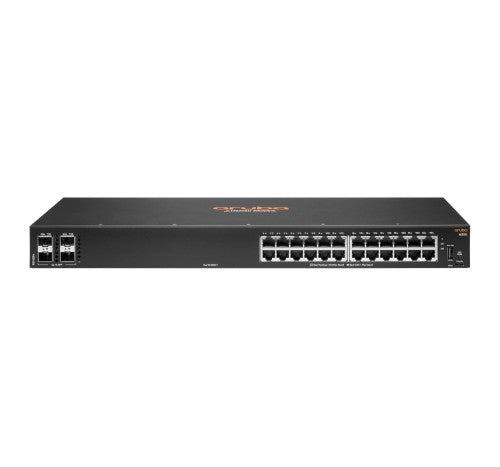

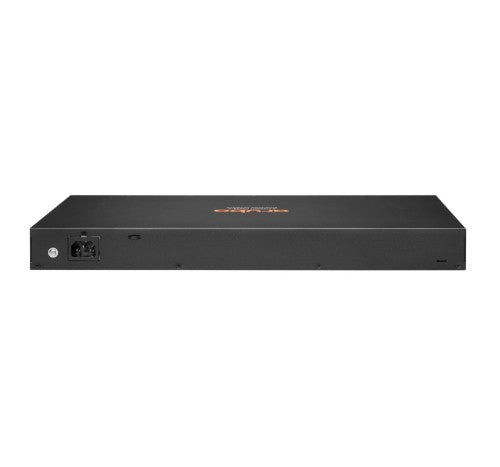

HPE Aruba Networking 6000 24G 4SFP, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
HPE
HPE Aruba Networking 6000 24G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U
Part number:
R8N88A#ABB
$522.38
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
HPE Aruba Networking 6000 24G 4SFP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| Data transmission | |
| Throughput | 41.6 Mpps |
| Latency (1 Gbps) | 1.5 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 8192 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 12.38 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 33 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.4" (442 mm) |
| Depth | 7.91" (201 mm) |
| Height | 1.73" (44 mm) |
| Weight | 5.73 lbs (2.6 kg) |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Technical details | |
| Form factor | 1U |
| Stackable | No |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 8192 MB |
| Flash memory | 16384 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
