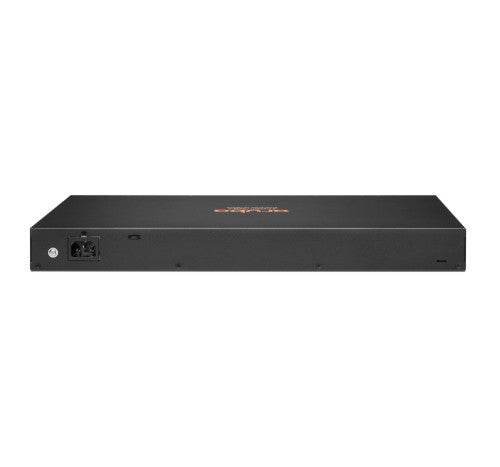

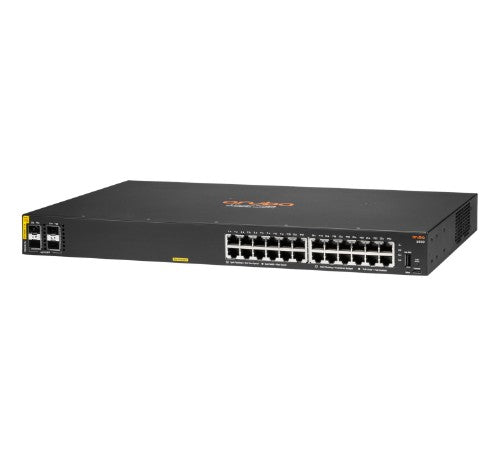

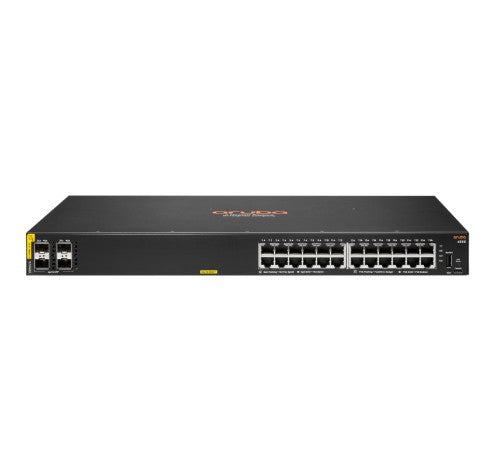

HPE Aruba Networking Aruba 6000 24G Class4 PoE 4SFP 370W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba 6000 24G Class4 PoE 4SFP 370W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: USB. MAC address table: 8192 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Management features
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Cloud-managed	Yes
Network
IGMP snooping	Yes
IPv6 FIB entries	128
IPv4 FIB entries	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features
VLAN support	Yes
IPv4 & IPv6 features
IPv6 FIB entries	128
IPv4 FIB entries	256
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Performance
Stackable	No
Processor frequency	1016 MHz
Memory type	DDR3-SDRAM
Internal memory	8192 MB
Flash memory	16384 MB
Built-in processor	Yes
Processor model	ARM Cortex-A9
Harmonized System (HS) code	85176990
Technical details
Form factor	1U
Stackable	No
Processor frequency	1016 MHz
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	USB
Data transmission
Throughput	41.6 Mpps
Latency (1 Gbps)	1.5 µs
MAC address table	8192 entries
Switching capacity	56 Gbit/s
Jumbo frames support	Yes
Security
Authentication	MAC-based authentication
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Protocols
IPv6 FIB entries	128
IPv4 FIB entries	256
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL)
Memory
Memory type	DDR3-SDRAM
Internal memory	8192 MB
Flash memory	16384 MB
Design
Form factor	1U
Stackable	No
Rack mounting	Yes
Power
Power consumption (max)	32.7 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	17.4" (442 mm)
Depth	10.6" (268 mm)
Height	1.73" (44 mm)
Weight	9.26 lbs (4.2 kg)
Logistics data
Harmonized System (HS) code	85176990
