26-Port Industrial Gigabit L2 Managed Rackmount Switch
This Industrial Gigabit L2 Managed Rackmount Switch provides an intuitive web-based management interface. Each TRENDnet industrial layer 2 rackmount switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together and increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS to prioritize traffic, port bandwidth controls, and SNMP monitoring.
Trendnet

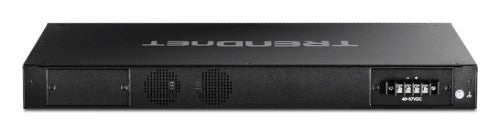

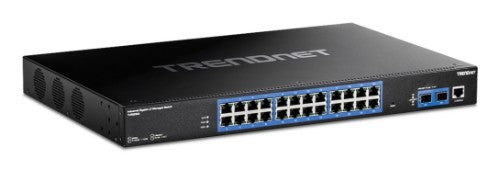

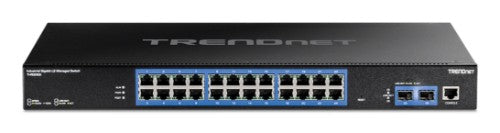

Trendnet TI-RG262I network switch Managed Gigabit Ethernet (10/100/1000) 1U Black
Part number:
TI-RG262I
$673.82
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 24 x Gigabit ports
- 2 x SFP ports
- Supports 100/1000Base-FX fiber SFP modules
- 52Gbps switching capacity
- Hardened IP30 rated metal housing
- Operating temperature range of -40° – 70° C (-40° – 158° F)
- Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
- IEEE 802.1p QoS with queue scheduling support
- CLI (Console / Telnet / SSH), Web (HTTP), SNMP v1 / 2c / 3 management
- IGMP Snooping / MVR support
- Bandwidth control per port
- Supports Ethernet Ring Protection Switching (ERPS)
- 19” rack mountable metal housing with included mounting kit
- Power supply sold separately (model: TI-S15052)
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s Industrial Gigabit L2 Managed Rackmount Switch offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today’s SMB networks. Each industrial layer 2 rackmount switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments. Our industrial layer 2 rackmount switch models feature copper gigabit ports for high-speed device connections, as well as SFP ports that support 100/1000Base-FX SFP modules for long distance fiber networking applications. This industrial layer 2 rackmount switch feature a fanless design that eliminates operating noise and lowers energy consumption.This Industrial Gigabit L2 Managed Rackmount Switch provides an intuitive web-based management interface. Each TRENDnet industrial layer 2 rackmount switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together and increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS to prioritize traffic, port bandwidth controls, and SNMP monitoring.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Multicast support | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| 10G support | No |
| Virtual LAN features | MAC address-based VLAN, Tagged VLAN |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 38.7 Mpps |
| Number of VLANs | 4094 |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| Design | |
| International Protection (IP) code | IP30 |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Certification | CE FCC |
| Performance | |
| Mean time between failures (MTBF) | 475352 h |
| Fanless | Yes |
| Packet buffer memory | 0.5 MB |
| Power | |
| Power consumption (max) | 20 W |
| DC input voltage | 48 - 57 V |
| Power source | AC/DC |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | MAC address-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 11.2" (284 mm) |
| Height | 1.73" (44 mm) |
| Weight | 7.63 lbs (3.46 kg) |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Mean time between failures (MTBF) | 475352 h |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Certificates | |
| Certification | CE FCC |
| Indication | |
| LED indicators | Yes |
