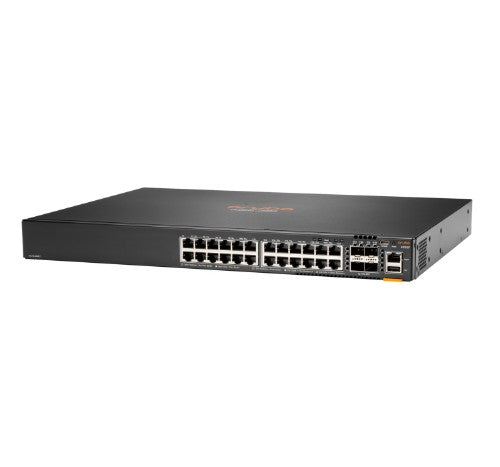

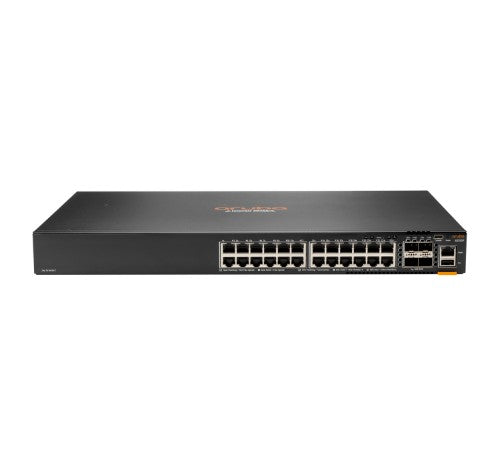

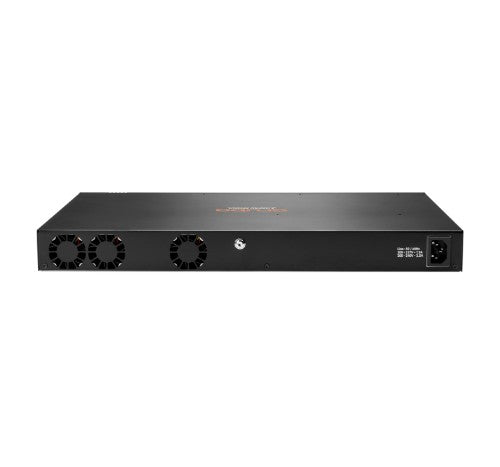

HPE Aruba Networking Aruba 6200F 24G Class4 PoE 4SFP+ 370W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking Aruba 6200F 24G Class4 PoE 4SFP+ 370W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Virtual LAN features
VLAN support	Yes
Performance
Stackable	Yes
Physical stacking (units)	8
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Built-in processor	Yes
Processor model	ARM Cortex-A72
Harmonized System (HS) code	85176990
Technical details
Physical stacking (units)	8
Form factor	1U
Product colour	Black
Stackable	Yes
Processor frequency	1800 MHz
Rack mounting	Yes
Built-in processor	Yes
Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Data transmission
Throughput	95.2 Mpps
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Jumbo frames support	Yes
Security
Access Control List (ACL)	Yes
Memory
Memory type	DDR4-SDRAM
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	65 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	17.4" (442 mm)
Depth	12.9" (327 mm)
Height	1.73" (43.9 mm)
Weight	10.8 lbs (4.9 kg)
Logistics data
Harmonized System (HS) code	85176990
