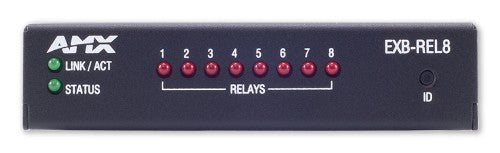

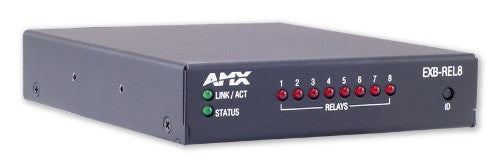

EXB-REL8, ICSLan Relay Interface, 8 Channels
ICSLan Device Control Boxes allow users to manage devices remotely from a Controller over an Ethernet network. This provides a beautifully simple method for a centralized control environment allowing users to share a controller among multiple smaller rooms versus controllers in every room. Ethernet has become the industry standard for connecting devices and the ICSLan Device Control Boxes make it easy to introduce control to equipment such as projectors located extended distances from a Controller. Additionally, the number of ports on an AMX Controller can be expanded when all ports are fully populated. Because they employ Native NetLinx technology, it is extremely simple to add an EXB to an AMX installation.
COMMON APPLICATIONS
Conference rooms, classroom or auditoriums where a single controller is used to manage multiple devices such as projectors spread throughout a facility or to add additional ports to an AMX Central Controller.
FEATURES
- Enable Ports over Ethernet – Provides a future proof solution to add ports anywhere
- Easy to Program – Programming is identical to any other device ports on the Controller
- Power over Ethernet – Eliminate the need for a power source at the install location
- Small Form Factor – Compact design makes it easy to hide for a clean installation
- NetLinx Studio Tools – Configuration tools make ICSLan Device Control Boxes easy to deploy
Harman/Kardon
AMX EXB-REL8 gateway/controller
Part number:
FG2100-20
$391.45
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
OVERVIEWICSLan Device Control Boxes allow users to manage devices remotely from a Controller over an Ethernet network. This provides a beautifully simple method for a centralized control environment allowing users to share a controller among multiple smaller rooms versus controllers in every room. Ethernet has become the industry standard for connecting devices and the ICSLan Device Control Boxes make it easy to introduce control to equipment such as projectors located extended distances from a Controller. Additionally, the number of ports on an AMX Controller can be expanded when all ports are fully populated. Because they employ Native NetLinx technology, it is extremely simple to add an EXB to an AMX installation.
COMMON APPLICATIONS
Conference rooms, classroom or auditoriums where a single controller is used to manage multiple devices such as projectors spread throughout a facility or to add additional ports to an AMX Central Controller.
FEATURES
- Enable Ports over Ethernet – Provides a future proof solution to add ports anywhere
- Easy to Program – Programming is identical to any other device ports on the Controller
- Power over Ethernet – Eliminate the need for a power source at the install location
- Small Form Factor – Compact design makes it easy to hide for a clean installation
- NetLinx Studio Tools – Configuration tools make ICSLan Device Control Boxes easy to deploy
Specifications
| Design | |
|---|---|
| LED indicators | Power |
| Certification | FCC Part 15 Class B C-Tick CISPR 22 Class B VCCI CISPR 22 Class B CE EN 55022 Class B CB Scheme IEC 60950-1 cULus UL 60950-1 |
| Product colour | Black |
| Network | |
| Wi-Fi | No |
| Wireless connection | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |

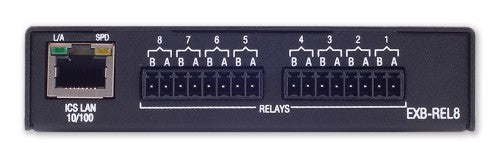

| I/O ports | 2 8-Pin 3.5mm captive-screw terminals |
| Power | |
| Power consumption (typical) | 1.9 W |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Weight | 16.3 oz (463 g) |
| Width | 5.12" (130 mm) |
| Height | 0.984" (25 mm) |
| Depth | 4.33" (110 mm) |
| Technical details | |
| Wi-Fi | No |
| Wireless connection | No |
| Indication | |
| LED indicators | Power |
| Certificates | |
| Certification | FCC Part 15 Class B C-Tick CISPR 22 Class B VCCI CISPR 22 Class B CE EN 55022 Class B CB Scheme IEC 60950-1 cULus UL 60950-1 |
| Performance | |
| Certification | FCC Part 15 Class B C-Tick CISPR 22 Class B VCCI CISPR 22 Class B CE EN 55022 Class B CB Scheme IEC 60950-1 cULus UL 60950-1 |
| Product colour | Black |
