x 8 RJ-45, 100m, 100Mbps, 43 x 120 x 84mm, IP30, 500g, 12 - 48VDC, 1,6Gbps
Advantech

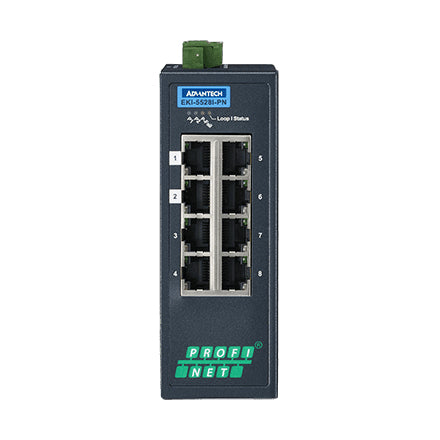

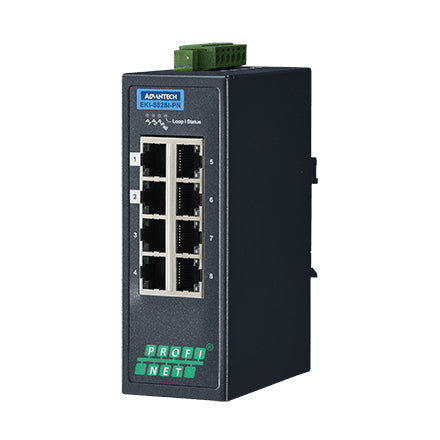

Advantech EKI-5528I-PN-AE network switch Managed Fast Ethernet (10/100) Black
Part number:
EKI-5528I-PN-AE
$407.40
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 ports Fast Ethernet RJ-45 (EKI-5528/I-PN)
- Entry-Level Managed Switch
- IXM function enables fast deployment
- Provides GSDML files
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
- Supports Media Redundancy Protocol (MRP Slaves)
Description
The EKI-5528-PN are new generation of entry-level managed switch products. They support media redundancy protocols and meet the PROFINET real time standard.The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.Specifications
| Technical details | |
|---|---|
| Product colour | Black |
| Mean time between failures (MTBF) | 4176861 h |
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Management features | |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 8000 entries |
| Switching capacity | 1.6 Gbit/s |
| Jumbo frames support | Yes |
| Design | |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Mean time between failures (MTBF) | 4176861 h |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 5.2 W |
| Input current | 0.1 A |
| DC input voltage | 12 - 48 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 1.69" (43 mm) |
| Depth | 4.72" (120 mm) |
| Height | 3.31" (84 mm) |
| Weight | 17.6 oz (500 g) |
| Sustainability | |
| Sustainability compliance | Yes |
