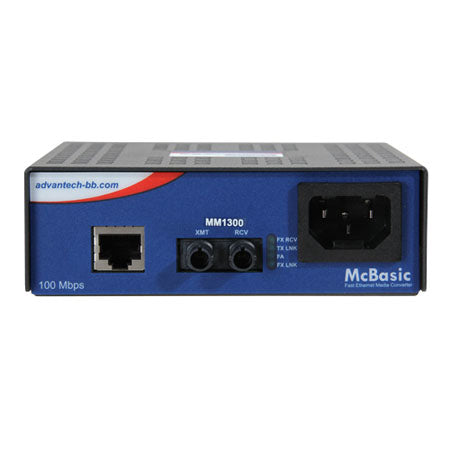

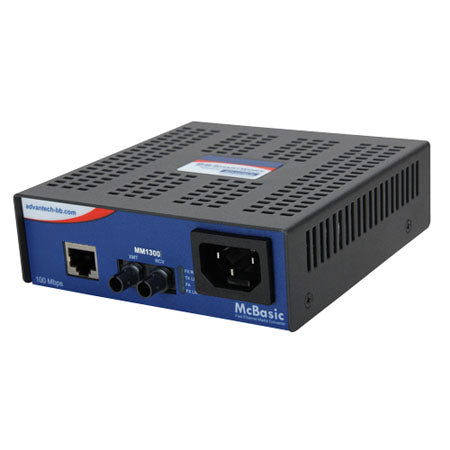

Standalone Media Converter, 100Mbps, Single mode 1310nm, 80km, ST, AC adapter
Advantech
Advantech IMC-450-SLST-US-A network media converter 100 Mbit/s 1310 nm Single-mode Black, Blue
Part number:
IMC-450-SLST-US-A
$250.48
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Designed with internal AC power
- Supports diagnostic features including Link Loss and Fiber Alert
- Some models provide two 10/100/1000Mbps copper ports
- Some models support Link Fault Pass Through (LFPT)
- Supports a variety of SFP modules
- Supports multiple mounting options (desktop, DIN rail or wall-mount)
Description
The IMC-450 and 470 series are standalone media converters with an optional internal power security device that make the connection between copper and fiber cables. It can be installed anywhere a network connection is required. In addition, these media converters feature in automatic link restoration. They also increase the scalability of a network by providing rate conversion ,distance extension and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connection. The IMC-450 and 470 support troubleshooting features such as LinkLoss and Fiber Alert which can be enabled/disabled by DIP switches. The diagnostic features allow the network administrator to quickly identify network faults. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port, that is available in an SFP form factor, as well as for fixed-fiber in single-mode and multi-mode. The Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interfaces.Specifications
| Network | |
|---|---|
| Fiber optic connector | ST |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 10000 |
| Converter input interface | 100BASE-FX, 100Base-TX |
| Networking standards | IEEE 802.3u |
| Ethernet LAN data rates | 100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Maximum data transfer rate | 100 Mbit/s |
| Link Fault Pass-through (LFP) | Yes |
| Technical details | |
| Housing material | Metal |
| Wavelength | 1310 nm |
| Maximum transfer distance | 3149606.3" (80000 m) |
| Fiber mode structure | Single-mode |
| Plug and Play | Yes |
| Internal | No |
| Performance | |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Plug and Play | Yes |
| Wavelength | 1310 nm |
| Maximum transfer distance | 3149606.3" (80000 m) |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 1800000 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| Indication | |
| LED indicators | Yes |
| Design | |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black, Blue |
| Certification | CE, FCC Class A, UL/cUL, CSA |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 1800000 h |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| AC input frequency | 50 - 60 Hz |
| Management features | |
| Plug and Play | Yes |
| Colour | |
| Product colour | Black, Blue |
| Weight & dimensions | |
| Width | 4.79" (121.7 mm) |
| Depth | 4.58" (116.4 mm) |
| Weight | 20.5 oz (580 g) |
| Height | 1.65" (42 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Packaging content | |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC Class A, UL/cUL, CSA |
