Mini Media Converter, 100Mbps, Multimode 1300nm, 5km, ST, AC adapter
Advantech

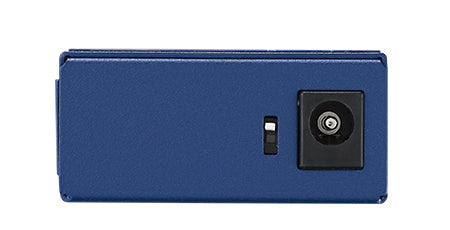

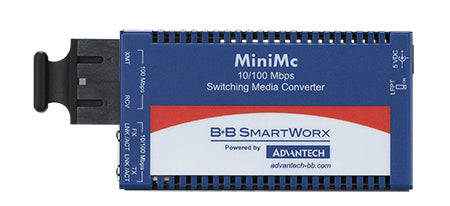

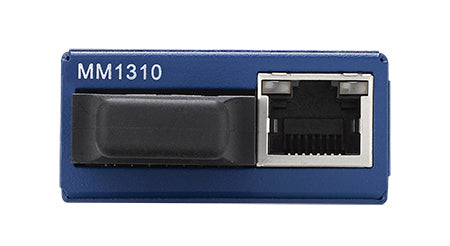

Advantech IMC-350-MMST-PS-A network media converter 100 Mbit/s 1300 nm Multi-mode Blue
Part number:
IMC-350-MMST-PS-A
$95.66
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Metal enclosure with compact size
- Industrial grade design that supports an extended operating temperature(IMC-350I series)
- IEEE802.3af compliant (IMC-350I series as PoE-PD)
- Supports Link Fault Pass Through (LFPT)
- Centralized powered IMC-318I chassis
Description
The IMC-350 series is the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and also 100Mbps full-duplex on the fiber port, the IMC-350 series serves as media and data rate converter. With a variety of model types in terms of its play-n-plug feature and multiple powering options, the IMC-350 series is easy and convenient for any applications. The IMC-350I series is in industrial grade and can operate in wide temperature. The multiple powering options including IEEE802.3af Power-over-Ethernet standard allow IMC-250I series to function as a power device. Its AC adapter and USB connectivity offer an unsurpassed flexibility for a variety of installation needs. The IMC-350 LFPT series supports Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair, copper interface) and FX LinkLoss (Fiber, fiber interface) from both the local and remote IMC Networks media converters, when used in pairs. This feature, when enabled, will pass a link fault through the device at each segment. If a link fails on one interface of the media converter, the media converter will force the link down on its link partner and then forward it to the next interface.Specifications
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 1916 |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Duplex system | Full |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | ST |
| Performance | |
| Wavelength | 1300 nm |
| Maximum transfer distance | 196850.4" (5000 m) |
| Fiber mode structure | Multi-mode |
| Jumbo frames support | Yes |
| Plug and Play | Yes |
| Features | |
| Housing material | Metal |
| Plug and Play | Yes |
| LED indicators | Status |
| Product colour | Blue |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 0.3 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 1.8" (45.7 mm) |
| Depth | 3.35" (85.1 mm) |
| Weight | 11.2 oz (317 g) |
| Height | 0.831" (21.1 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Housing material | Metal |
| Wavelength | 1300 nm |
| Maximum transfer distance | 196850.4" (5000 m) |
| Fiber mode structure | Multi-mode |
| Plug and Play | Yes |
| Internal | No |
| Indication | |
| LED indicators | Status |
| Design | |
| Housing material | Metal |
| LED indicators | Status |
| Product colour | Blue |
| Certification | CE, FCC Class B, UL/cUL, CSA |
| Internal | No |
| Management features | |
| Plug and Play | Yes |
| Colour | |
| Product colour | Blue |
| Certificates | |
| Certification | CE, FCC Class B, UL/cUL, CSA |
