Advantech IMC-751-SSR network media converter Internal 100 Mbit/s 1550 nm Blue
  • Advantech IMC-751-SSR network media converter Internal 100 Mbit/s 1550 nm Blue
  • Advantech IMC-751-SSR network media converter Internal 100 Mbit/s 1550 nm Blue
Advantech IMC-751-SSR network media converter Internal 100 Mbit/s 1550 nm Blue
Advantech

Advantech IMC-751-SSR network media converter Internal 100 Mbit/s 1550 nm Blue

Part number: IMC-751-SSR
$219.69 $371.70
Save $152.01
41% OFF

Taxes & Shipping calculated at checkout

Return & Refunds policy

Shipping time varies based your on location.

Enjoy Free Shipping on orders over $2000 USD

Managed Modular Media Converter, 100Mbps, Single-Strand 1550xmt, 20km, SC

Key Features

  • Variety of choices: multi-mode, single-mode, and single-strand fiber including SFP form factor
  • Modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
  • Provides modules with SFP transceivers that support extended operating temperature
  • SNMP manageable
  • Supports configuration control
  • Supports Link Fault Pass Through (LFPT)

Description

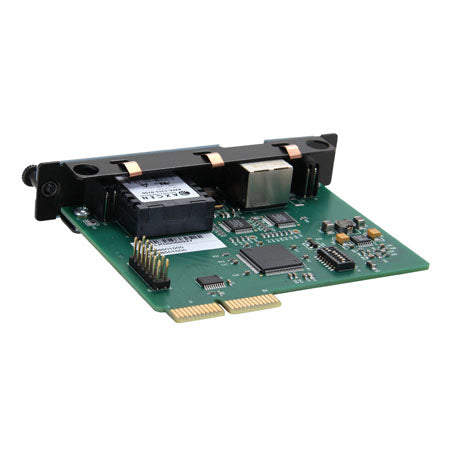

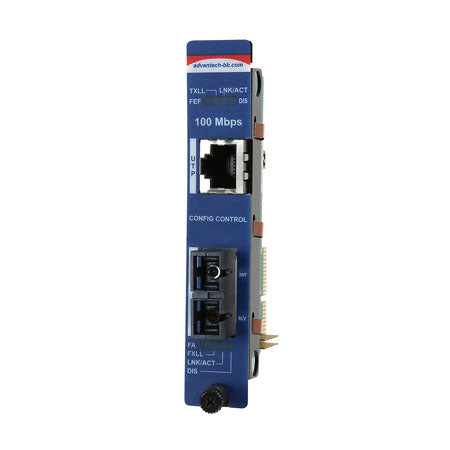

The IMC-750/751 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis, which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. They can be monitored and controlled via a central site with the IMC-710 SNMP management module by iView2, Telnet, or CLI while installed in a IMC-71x series chassis. Link Fault Pass Through (LFPT) is a diagnostic feature that can enable or disable links to assist end users in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was set up. The IMC-750 series can convert a 10/100 ~ 100Mbps copper-to-fiber media rate to auto-negotiation functionality on the twisted pair port for operation, and can fix it at 100Mbps copper-to-fiber with the IMC-751 series.

Specifications

Network
Fiber optic connector SC
Networking standards IEEE 802.3, IEEE 802.3u
Maximum data transfer rate 100 Mbit/s
Technical details
Wavelength 1550 nm
Maximum transfer distance 787401.6" (20000 m)
Internal Yes
Compliance certificates CE, Federal Communications Commission (FCC)
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Fiber optic connector SC
Indication
LED indicators Yes
Performance
Wavelength 1550 nm
Maximum transfer distance 787401.6" (20000 m)
Design
Safety UL/cUL
LED indicators Yes
Product colour Blue
Internal Yes
Colour
Product colour Blue
Weight & dimensions
Width 0.787" (20 mm)
Depth 4.23" (107.4 mm)
Weight 3.88 oz (110 g)
Height 2.78" (70.5 mm)
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Certificates
Safety UL/cUL
