Managed modular media converter, 100Mbps, Single mode 1310nm, 40km, SC
Advantech

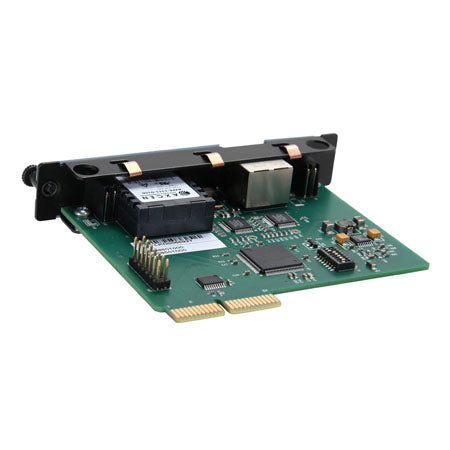

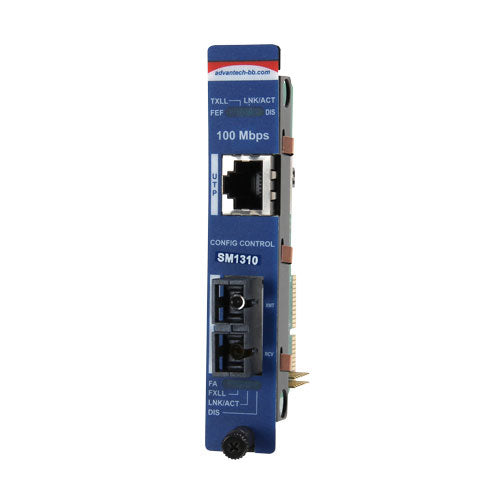

Advantech IMC-751-SE network media converter Internal 100 Mbit/s 1310 nm Single-mode Blue
Part number:
IMC-751-SE
$246.37
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Variety of choices: multi-mode, single-mode, and single-strand fiber including SFP form factor
- Modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
- Provides modules with SFP transceivers that support extended operating temperature
- SNMP manageable
- Supports configuration control
- Supports Link Fault Pass Through (LFPT)
Description
The IMC-750/751 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis, which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. They can be monitored and controlled via a central site with the IMC-710 SNMP management module by iView2, Telnet, or CLI while installed in a IMC-71x series chassis. Link Fault Pass Through (LFPT) is a diagnostic feature that can enable or disable links to assist end users in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was set up. The IMC-750 series can convert a 10/100 ~ 100Mbps copper-to-fiber media rate to auto-negotiation functionality on the twisted pair port for operation, and can fix it at 100Mbps copper-to-fiber with the IMC-751 series.Specifications
| Network | |
|---|---|
| Fiber optic connector | SC |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Maximum data transfer rate | 100 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1574803.1" (40000 m) |
| Fiber mode structure | Single-mode |
| Internal | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Indication | |
| LED indicators | Yes |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 1574803.1" (40000 m) |
| Fiber mode structure | Single-mode |
| Design | |
| Safety | UL/cUL |
| LED indicators | Yes |
| Product colour | Blue |
| Internal | Yes |
| Colour | |
| Product colour | Blue |
| Weight & dimensions | |
| Width | 0.787" (20 mm) |
| Depth | 4.23" (107.4 mm) |
| Weight | 3.88 oz (110 g) |
| Height | 2.78" (70.5 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Safety | UL/cUL |
