x8 RJ-45, 100m, 100Mbps, RTU, 43 x 120 x 84mm, IP30, 500g, 5.2W, 12 - 48VDC
Advantech

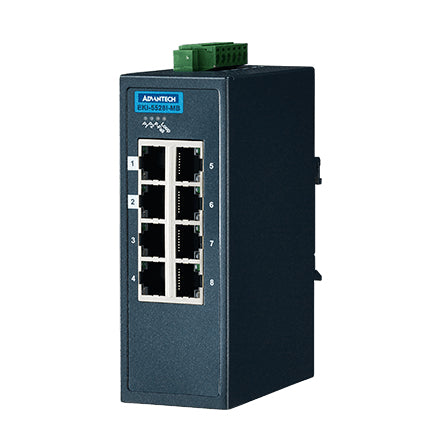

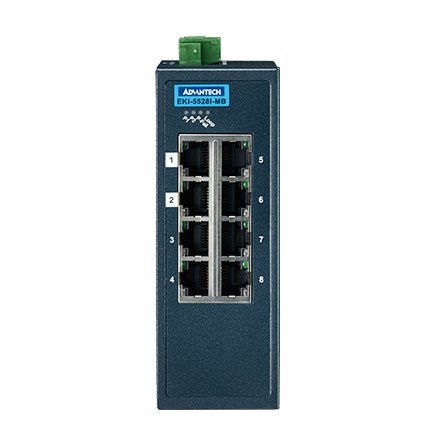

Advantech EKI-5528I-MB Managed Fast Ethernet (10/100) Black
Part number:
EKI-5528I-MB-AE
$407.81
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 ports Fast Ethernet RJ-45 (EKI-5528/I-MB)
- Entry-Level Managed Switch
- IXM function enables fast deployment
- Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
Description
The and EKI-5528/I-MB are a new generation of entry-level managed switch products. They support basic Layer 2 managed function such as Ring, SNMP, IGMP etc. Besides, they support Modbus/TCP and can easily integrate with SCADA. The devices come with a compact metal housing that is IP30 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.8 VDC) is dedicated to operating in areas of unstable power and rugged environments.Specifications
| Technical details | |
|---|---|
| Product colour | Black |
| Mean time between failures (MTBF) | 4176861 h |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Management features | |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 8000 entries |
| Switching capacity | 1.6 Gbit/s |
| Jumbo frames support | Yes |
| Design | |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| Performance | |
| Mean time between failures (MTBF) | 4176861 h |
| Power | |
| Power consumption (typical) | 5.2 W |
| Input current | 0.1 A |
| DC input voltage | 12 - 48 V |
| Power source | DC |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 1.69" (43 mm) |
| Depth | 4.72" (120 mm) |
| Height | 3.31" (84 mm) |
| Weight | 17.6 oz (500 g) |
| Sustainability | |
| Sustainability compliance | Yes |
