4GB mSATA SLC SSD
Only one third the size of a business card, Transcend's mSATA SSDs offer greater design flexibility and cost savings. Despite their compact dimensions, the mSATA SSDs feature a high-bandwidth SATA 3Gb/s interface that helps bring the full performance benefits of SSD technology to tablets, ultra-light notebooks and other embedded storage applications.
Features
- RoHS compliant
- Fully compatible with devices and OS that support the SATA 3Gb/s standard
- Built-in ECC (Error Correction Code) functionality
- Power Shield
- Garbage Collection
- Support S.M.A.R.T. function
- Support Security Command
- Support StaticDataRefresh & EarlyRetirement technology to monitor error bit level and react before data is corrupted
- Advanced Global Wear-Leveling and Block management for reliability
Transcend

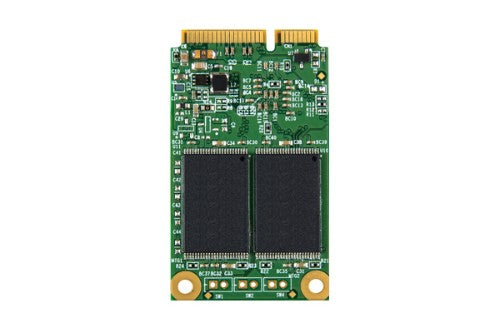

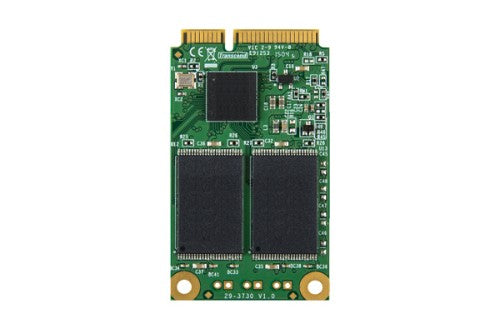

Transcend TS4GMSA520 internal solid state drive 4 GB Serial ATA II SLC
Part number:
TS4GMSA520
$70.89
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
SATA II 3Gb/s mSATA SSDOnly one third the size of a business card, Transcend's mSATA SSDs offer greater design flexibility and cost savings. Despite their compact dimensions, the mSATA SSDs feature a high-bandwidth SATA 3Gb/s interface that helps bring the full performance benefits of SSD technology to tablets, ultra-light notebooks and other embedded storage applications.
Features
- RoHS compliant
- Fully compatible with devices and OS that support the SATA 3Gb/s standard
- Built-in ECC (Error Correction Code) functionality
- Power Shield
- Garbage Collection
- Support S.M.A.R.T. function
- Support Security Command
- Support StaticDataRefresh & EarlyRetirement technology to monitor error bit level and react before data is corrupted
- Advanced Global Wear-Leveling and Block management for reliability
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 4 GB |
| Memory type | SLC |
| Internal | Yes |
| Data transmission | |
| Read speed | 100 MB/s |
| Write speed | 90 MB/s |
| Data transfer rate | 3 Gbit/s |
| Design | |
| Internal | Yes |
| Product colour | Green |
| Endurance | |
| Mean time between failures (MTBF) | 1000000 h |
| Features | |
| Interface | Serial ATA II |
| SSD capacity | 4 GB |
| Read speed | 100 MB/s |
| Write speed | 90 MB/s |
| Memory type | SLC |
| Mean time between failures (MTBF) | 1000000 h |
| Data transfer rate | 3 Gbit/s |
| Power | |
| Power consumption (write) | 1.4 W |
| Power consumption (read) | 1.4 W |
| Power consumption (idle) | 0.65 W |
| Operating voltage | 3.3 V |
| Performance | |
| Interface | Serial ATA II |
| SSD capacity | 4 GB |
| Read speed | 100 MB/s |
| Write speed | 90 MB/s |
| Memory type | SLC |
| Mean time between failures (MTBF) | 1000000 h |
| Data transfer rate | 3 Gbit/s |
| Weight & dimensions | |
| Width | 1.18" (29.9 mm) |
| Weight | 0.353 oz (10 g) |
| Height | 0.138" (3.5 mm) |
| Depth | 2" (50.8 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating shock | 1500 G |
| Operating vibration | 3 G |
| Technical details | |
| Interface | Serial ATA II |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating shock | 1500 G |
| Operating vibration | 3 G |
| Product colour | Green |
| Other features | |
| Product colour | Green |
| Internal | Yes |
