680X RGB ATX, Mini-ITX, MicroATX, ATX E-ATX, 3 x 3.5, 4 x 2.5, White
OUTSTANDING HIGH AIRFLOW COOLING
Four included 120mm cooling fans and a Direct Airflow Path™ layout deliver cool air to your PC’s hottest components.
THREE INCLUDED LL120 RGB FANS
Three award-winning LL series fans light up your system with a total of 48 individually addressable RGB LEDs.
INTELLIGENT CONTROL, UNLIMITED POSSIBILITIES
An included CORSAIR Lighting Node PRO turns the 680X RGB into a smart case. Powerful CORSAIR iCUE software enables dynamic RGB lighting synchronized across all your iCUE compatible products, including fans, RGB LED light strips, DDR4 memory, keyboards, mice and more.
INTELLIGENT CONTROL, UNLIMITED POSSIBILITIES
An included CORSAIR Lighting Node PRO turns the 680X RGB into a smart case. Powerful CORSAIR iCUE software enables dynamic RGB lighting synchronized across all your iCUE compatible products, including fans, RGB LED light strips, DDR4 memory, keyboards, mice and more.
THREE CRYSTAL-CLEAR TEMPERED GLASS PANELS
Fitted in the front, roof, and a hinged side panel door, providing a stunning view of your PC’s high-profile components.
MASSIVE COOLING POTENTIAL
Install up to 8x 120mm or 7x 140mm fans for massive cooling potential, with room to mount up to four radiators.
HIGH-SPEED USB 3.1 GEN-2 TYPE-C PORT
Access high-bandwidth 10Gbit/s via a reversible type-C connector.
FLEXIBLE STORAGE OPTIONS
Easily install up to 3x 3.5in and 4x 2.5in drives in tool-free drive mounts, for high-capacity, flexible storage configurations.
VERTICAL GPU MOUNT
Put your graphics card center stage, perfect for showing off custom GPU cooling or your latest upgrade.
INTELLIGENT CONTROL. UNLIMITED POSSIBILITIES.
Powerful CORSAIR iCUE software brings your system to life with dynamic RGB lighting synchronized across all your iCUE compatible products, including fans, RGB LED light strips, DDR4 memory, keyboards, mice and more.
Corsair

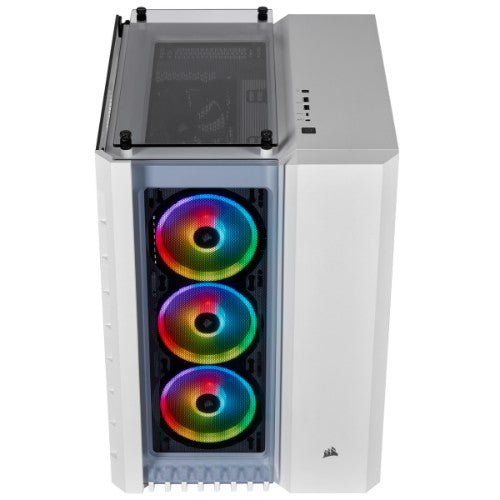

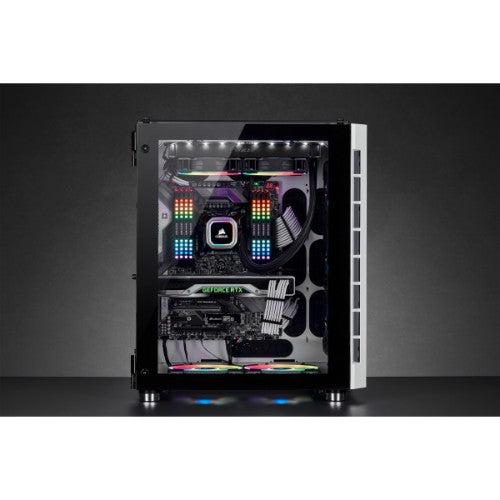

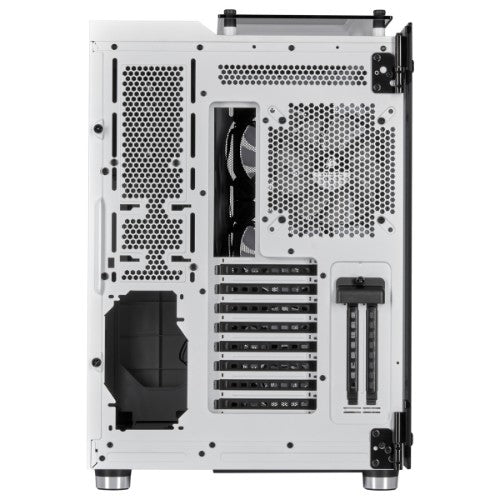

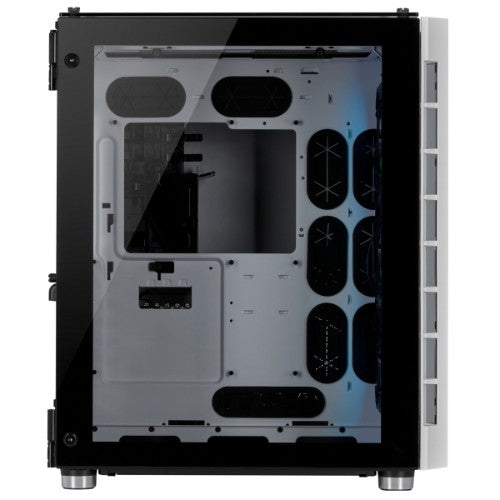

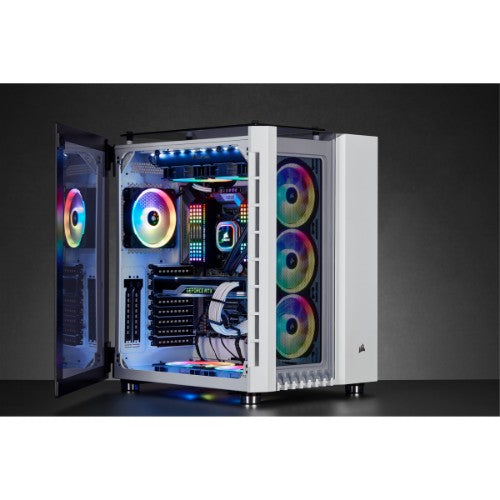

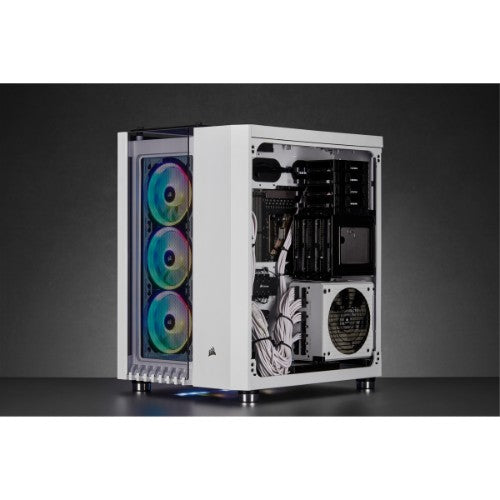

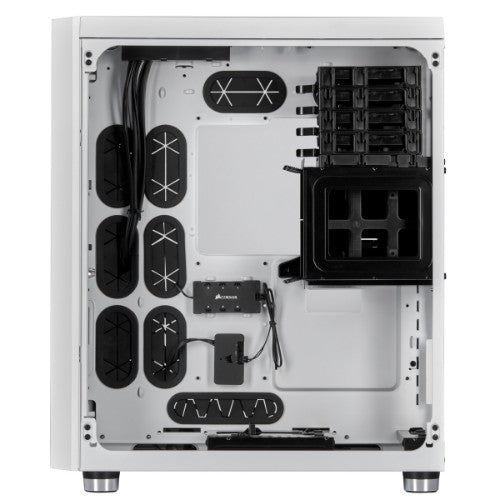

Corsair Crystal 680X RGB Midi Tower White
Part number:
CC-9011169-WW
$277.43
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The CORSAIR Crystal Series 680X RGB is a dual-chamber tempered glass ATX smart case boasting superb airflow and brilliant RGB lighting to efficiently cool and illuminate the most demanding systems.OUTSTANDING HIGH AIRFLOW COOLING
Four included 120mm cooling fans and a Direct Airflow Path™ layout deliver cool air to your PC’s hottest components.
THREE INCLUDED LL120 RGB FANS
Three award-winning LL series fans light up your system with a total of 48 individually addressable RGB LEDs.
INTELLIGENT CONTROL, UNLIMITED POSSIBILITIES
An included CORSAIR Lighting Node PRO turns the 680X RGB into a smart case. Powerful CORSAIR iCUE software enables dynamic RGB lighting synchronized across all your iCUE compatible products, including fans, RGB LED light strips, DDR4 memory, keyboards, mice and more.
INTELLIGENT CONTROL, UNLIMITED POSSIBILITIES
An included CORSAIR Lighting Node PRO turns the 680X RGB into a smart case. Powerful CORSAIR iCUE software enables dynamic RGB lighting synchronized across all your iCUE compatible products, including fans, RGB LED light strips, DDR4 memory, keyboards, mice and more.
THREE CRYSTAL-CLEAR TEMPERED GLASS PANELS
Fitted in the front, roof, and a hinged side panel door, providing a stunning view of your PC’s high-profile components.
MASSIVE COOLING POTENTIAL
Install up to 8x 120mm or 7x 140mm fans for massive cooling potential, with room to mount up to four radiators.
HIGH-SPEED USB 3.1 GEN-2 TYPE-C PORT
Access high-bandwidth 10Gbit/s via a reversible type-C connector.
FLEXIBLE STORAGE OPTIONS
Easily install up to 3x 3.5in and 4x 2.5in drives in tool-free drive mounts, for high-capacity, flexible storage configurations.
VERTICAL GPU MOUNT
Put your graphics card center stage, perfect for showing off custom GPU cooling or your latest upgrade.
INTELLIGENT CONTROL. UNLIMITED POSSIBILITIES.
Powerful CORSAIR iCUE software brings your system to life with dynamic RGB lighting synchronized across all your iCUE compatible products, including fans, RGB LED light strips, DDR4 memory, keyboards, mice and more.
Specifications
| Technical details | |
|---|---|
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 4 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Supported HDD sizes | 2.5,3.5" |
| Suitable for | Gaming |
| Side window | Yes |
| Reset button | Yes |
| Product colour | White |
| Number of expansion slots | 10 |
| Maximum CPU cooler height | 7.09" (18 cm) |
| Maximum graphics card length | 13" (33 cm) |
| Maximum PSU length | 8.86" (22.5 cm) |
| Type | PC |
| Form factor | Midi Tower |
| Harmonized System (HS) code | 84733080 |
| Material | |
| Material | Steel, Tempered glass |
| Indication | |
| Illumination location | Front |
| Illumination | Yes |
| Ergonomics | |
| Reset button | Yes |
| On/off button | Yes |
| Design | |
| Material | Steel, Tempered glass |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 4 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Suitable for | Gaming |
| Side window | Yes |
| Reset button | Yes |
| Illumination location | Front |
| Illumination | Yes |
| Product colour | White |
| Number of expansion slots | 10 |
| Maximum CPU cooler height | 7.09" (18 cm) |
| Maximum graphics card length | 13" (33 cm) |
| Maximum PSU length | 8.86" (22.5 cm) |
| Type | PC |
| Form factor | Midi Tower |
| On/off button | Yes |
| Power supply | |
| Power supply included | No |
| Power supply location | Bottom |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 0 |
| Cooling | |
| Front radiator sizes supported | 280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 240,280 mm |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120,140 mm |
| Bottom radiator sizes supported | 240,280 mm |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 13.5" (344 mm) |
| Depth | 16.7" (423 mm) |
| Height | 19.9" (505 mm) |
| Weight | 25.6 lbs (11.6 kg) |
| Packaging data | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Manual | Yes |
| Harmonized System (HS) code | 84733080 |
