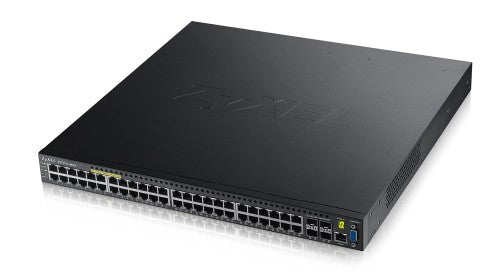

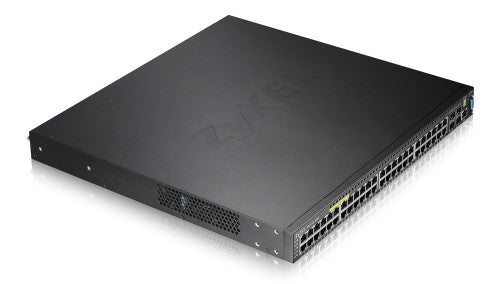

48-port GbE L2+ PoE Switch with 10GbE Uplink

Description

- Layer 2 Plus (Layer 3 Lite) feature set with static routing, policy-based routing, VRRP and ECMP support
- 10GbE SFP+ uplink flexibility

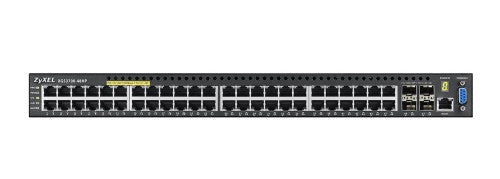

- 48 ports Gigabit Ethernet desktop connectivity

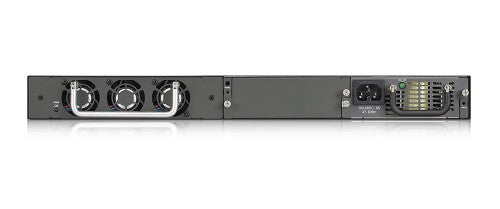

- Hot-swappable power supply and fan modules
- Internal redundant power supply design
- Provides up to 30 W per port with IEEE 802.3at PoE Plus compliance
- 1000 W or 460 W high PoE power budget

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L2+
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Cable length detection	Yes
Networking standards	IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Routing entries	512
Rate limiting	Yes
Port mirroring	Yes
IP address table	512
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Throughput	131 Mpps
Packet buffer memory	2 MB
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Security
Static port security	Yes
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server, DHCP client
Multicast features
Multicast support	Yes
Design
Wall mountable	Yes
Safety	LVB, BSMI
Product colour	Blue
LED indicators	Yes
Electromagnetic compatibility	FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC
Rack mounting	Yes
Certification	RoHS (Level A)
Performance
Plug and Play	Yes
Mean time between failures (MTBF)	200000 h
Packet buffer memory	2 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE)	Yes
Other features
Power LED	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	2046 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	17.3" (440 mm)
Depth	17.2" (437 mm)
Height	1.73" (44 mm)
Weight	17.7 lbs (8.02 kg)
Technical details
Product colour	Blue
Mean time between failures (MTBF)	200000 h
Rack mounting	Yes
Certificates
Safety	LVB, BSMI
Electromagnetic compatibility	FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC
Certification	RoHS (Level A)
Memory
Packet buffer memory	2 MB
Indication
Power LED	Yes
LED indicators	Yes
Logistics data
Harmonized System (HS) code	85176990
