NWA1123-AC Pro - Dual optimised, 802.11ac, 1300Mbps, 3x3 Multiple-Input Multiple-Output (MIMO)
Struggling between performance and environment cohesion when deploying business wireless APs is in past. The stylish exterior of NWA1120 series is suitable for any interior that not only outperforms but also blends into the interior better as well prevents equipment theft.
Optimize for what you need
To create a thoroughly enhanced Wi-Fi experience, NWA1120 series made a big move on optimized antennas and RF design via fine-tune software and innovative hardware. Featuring with DCS and load-balance, NWA1120 series delivers smooth and superior Wi-Fi experience in workplaces.
Blending multi-operation flexibility with practical business features
NWA1120 series provides repeater/root-AP mode compatibility with Zyxel Unified Pro and Unified APs, that users can extend wireless connectivity via enterprise grade WDS to difficult cabling locations without the bother of troublesome cabling. Also, as an ideal solution, NWA1120 series offers an array of practical features like multiple SSID and solid Wi-Fi security.
Setup and forget
The refreshed NWA1120 series features streamline controller-less deployment. Out of the box and finish three steps configuration with ZON then NWA1120 series capable of operating autonomously without extra computer or special management tool as well as allowing administrator easy monitor via any SNMP tool in hand, even not a networking expert can handle it easily.
Zyxel

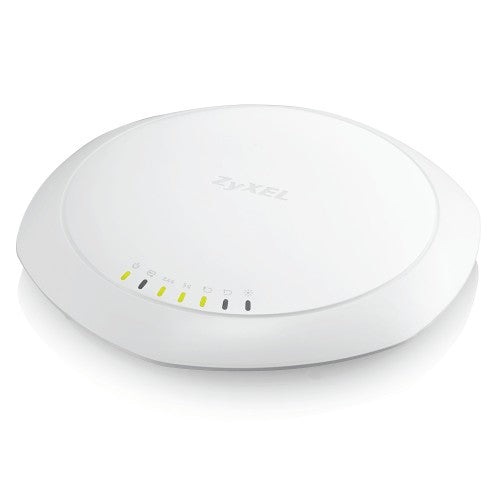

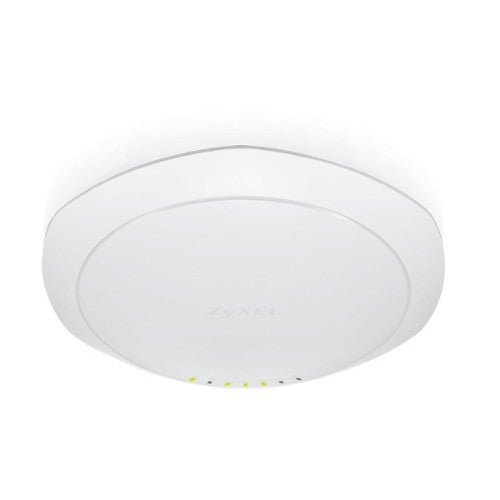

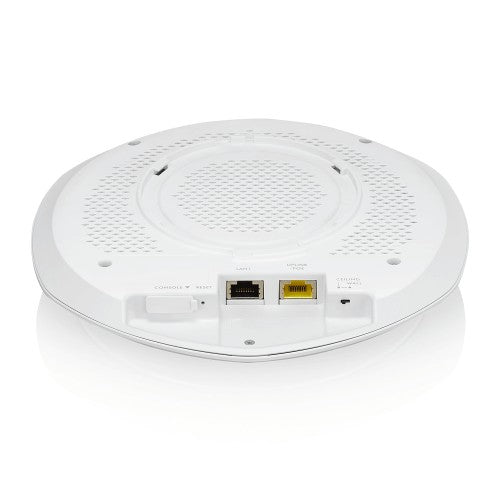

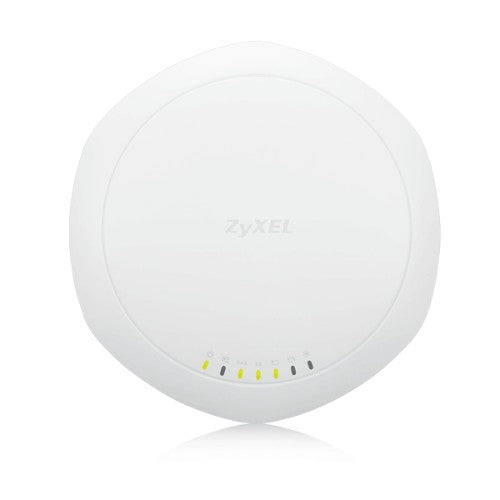

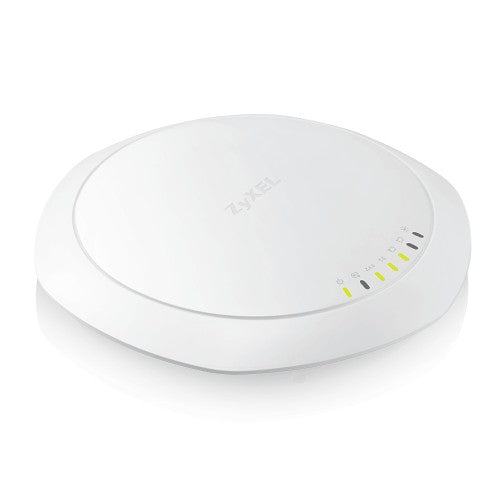

Zyxel NWA1123-AC Pro 1300 Mbit/s White Power over Ethernet (PoE)
Part number:
NWA1123-ACPRO
$163.47
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Best interior Wi-Fi performance in styleStruggling between performance and environment cohesion when deploying business wireless APs is in past. The stylish exterior of NWA1120 series is suitable for any interior that not only outperforms but also blends into the interior better as well prevents equipment theft.
Optimize for what you need
To create a thoroughly enhanced Wi-Fi experience, NWA1120 series made a big move on optimized antennas and RF design via fine-tune software and innovative hardware. Featuring with DCS and load-balance, NWA1120 series delivers smooth and superior Wi-Fi experience in workplaces.
Blending multi-operation flexibility with practical business features
NWA1120 series provides repeater/root-AP mode compatibility with Zyxel Unified Pro and Unified APs, that users can extend wireless connectivity via enterprise grade WDS to difficult cabling locations without the bother of troublesome cabling. Also, as an ideal solution, NWA1120 series offers an array of practical features like multiple SSID and solid Wi-Fi security.
Setup and forget
The refreshed NWA1120 series features streamline controller-less deployment. Out of the box and finish three steps configuration with ZON then NWA1120 series capable of operating autonomously without extra computer or special management tool as well as allowing administrator easy monitor via any SNMP tool in hand, even not a networking expert can handle it easily.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1300 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Firmware upgradeable | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.3ab, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DPSK, DQPSK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Certification | FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002 |
| Maximum data transfer rate | 1300 Mbit/s |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DPSK, DQPSK, QPSK |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.3ab, IEEE 802.3u |
| Bandwidth | |
| Channel bandwidth | 80 MHz |
| Management features | |
| VLAN support | Yes |
| Firmware upgradeable | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.3ab, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DPSK, DQPSK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Maximum data transfer rate | 1300 Mbit/s |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | 802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, SNMP, SSH, WEP, WPA, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Protocols | |
| DHCP client | Yes |
| Ports & interfaces | |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Internal | No |
| Certification | FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002 |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 3 |
| Antenna gain level (max) | 5 dBi |
| Technical details | |
| Firmware upgradeable | Yes |
| Certificates | |
| Certification | FCC part 15C, FCC part 15E, ETSI EN 300 328, EN 301 893, LP0002 |
| Weight & dimensions | |
| Width | 8.03" (203.9 mm) |
| Depth | 7.55" (191.7 mm) |
| Weight | 15.7 oz (445 g) |
| Height | 1.37" (34.7 mm) |
| Package width | 9.45" (240 mm) |
| Package depth | 9.25" (235 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 2.67 lbs (1.21 kg) |
| Packaging data | |
| Package width | 9.45" (240 mm) |
| Package depth | 9.25" (235 mm) |
| Package height | 3.94" (100 mm) |
| Package weight | 2.67 lbs (1.21 kg) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
