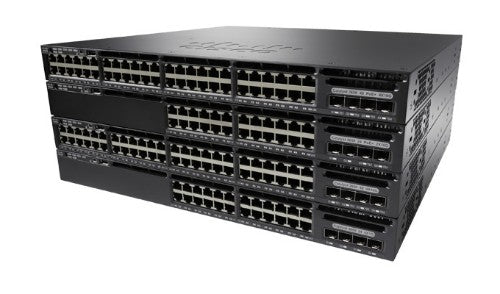

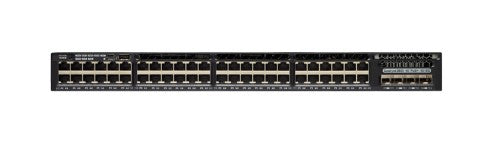

Catalyst 3650-48PD-L, Standalone, 1U, 48 x 10/100/1000 Ethernet PoE+, 2x10G Uplink ports, DRAM 4GB, Flash 2GB, 640W, LAN Base

Description

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Number of VLANs	4094
Link aggregation	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	176 Gbit/s
Jumbo frames support	Yes
Number of VLANs	4094
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Multicast features
Multicast support	Yes
Design
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Certification	47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A) AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A KCC CNS13438 Class A EN55024 CISPR24 KN24
Performance
Noise level	48 dB
Memory type	DRAM
Mean time between failures (MTBF)	383760 h
Internal memory	4096 MB
Flash memory	2000 MB
Stackable	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	97.45 W
Redundant power supply (RPS) support	Yes
Number of power supply units	1
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	390 W
Power over Ethernet (PoE)	Yes
Other features
Bandwidth	160 Gbit/s
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-5 - 50 °C
Operating relative humidity (H-H)	5 - 96%
Operating altitude	0 - 59055.1" (0 - 1500 m)
Non-operating altitude	0 - 196850.4" (0 - 5000 m)
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Weight & dimensions
Width	17.5" (445 mm)
Depth	17.6" (448 mm)
Height	1.73" (44 mm)
Weight	16.8 lbs (7.6 kg)
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Noise level	48 dB
Mean time between failures (MTBF)	383760 h
Rack mounting	Yes
Certificates
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Certification	47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A) AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A KCC CNS13438 Class A EN55024 CISPR24 KN24
Memory
Memory type	DRAM
Internal memory	4096 MB
Flash memory	2000 MB
Indication
LED indicators	Yes
