Intel Xeon E3 Quad-core, 4 GB DDR3 ECC RAM, 512 MB DOM, 16 x 2.5"/3.5" SATA3 SSD/HDD, 2 x 10 GbE (SFP+), 4 x GbE, 4x USB 3.0, 4x USB 2.0, 3U
- Built-in 10GbE, highly-efficient storage solution for HD video editing and sharing
- 3,500+ MB/s throughput and 390,000+ IOPS
- Two internal cache ports and up to 4 SSDs for caching
- Scalable design, up to 864TB raw capacity
- Virtualization-ready, centralized data storage, backup, sharing and disaster recovery
QTS - Simple and efficient
Thanks to QTS’s intuitive user interface, system operations of the TS-EC1680U R2 are smooth and handy. Its intelligent desktop allows you to find the desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.
Qsirch – A smarter, faster way to search
Quickly and easily find documents, photos, videos, and music with Qsirch, QNAP's new built-in NAS search application lets you find what you need by real-time, natural search. Simply type in as much as you know about what you are trying to find, including bits of the file name or even words/phrases in the document, and Qsirch will display a list of matches, complete with thumbnails, as you type. Qsirch even remembers your search history so you can quickly navigate to files you've previously searched for. Qsirch is a huge productivity boost – it greatly reduces the amount of time spent looking for files on the NAS so you can focus on other tasks.
Breakthrough performance
The TS-EC1680U R2 supports 6Gbps hard drives driving over 3,500 MB/s throughput and 390,000 IOPS. Featuring with Intel® Xeon® E3 v3 Quad-Core Processor and 4 GB DDR3 ECC RAM, the TS-EC1680U R2 greatly enhances efficiency of CPU-consuming tasks and serves more concurrent tasks at the same time.
Internal cache port for IO acceleration
The TS-EC1680U R2 supports two on-board mSATA internal cache ports, and up to 4 SSDs can be used for caching. By installing mSATA flash modules (optional purchase), the IOPS performance of storage volumes can remarkably boost. It is perfect for improving overall workflow of random IOPS demanding applications such as database and virtualization. The internal cache port design reserves the space of hard drive tray for more storage capacity.
Removable motherboard drawer for easy maintenance
With the TS-EC1680U R2's removable motherboard drawer, IT administrators have easier access in upgrading/installing components such as RAM, the internal cache and 10GbE adapter. The motherboard itself can be removed and replaced without needing to remove the heavy TS-EC1680U R2 from the rack cabinet, making it especially useful in maintaining the TS-EC1680U R2 in data centers with multiple rack cabinets.
QNAP

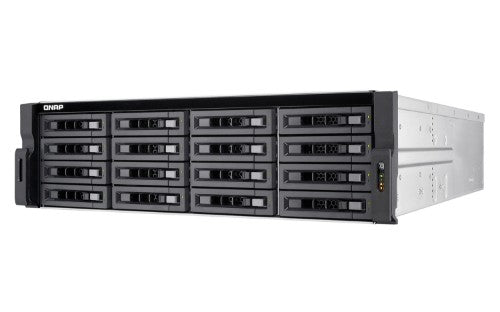

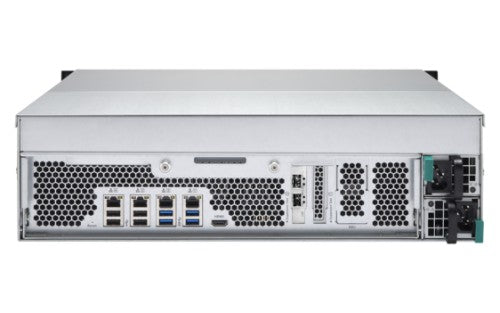

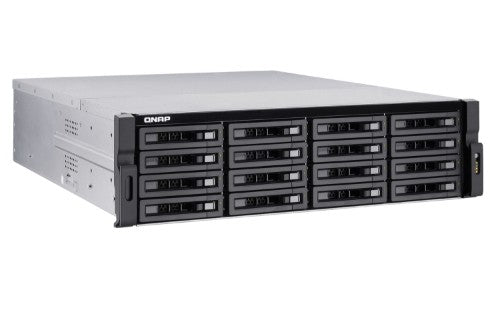

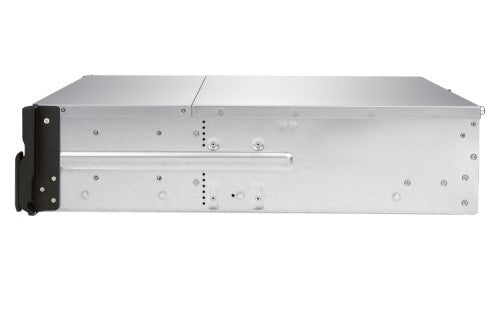

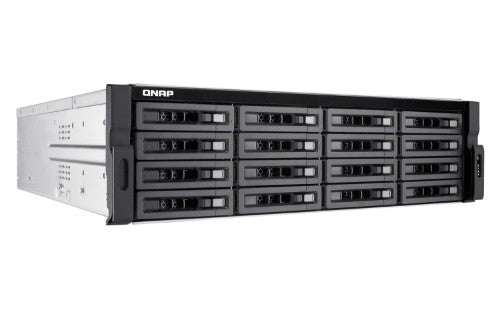

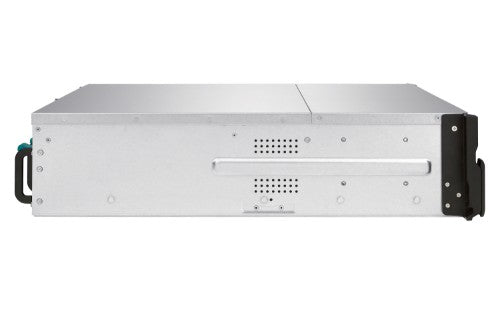

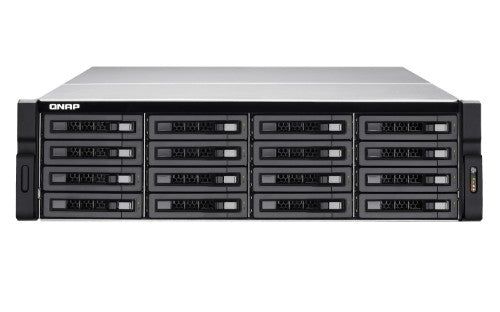

QNAP TS-EC1680U R2 NAS Rack (3U) Ethernet LAN Black, Gray E3-1246V3
Part number:
TS-EC1680U-E3-4GE-R2
$4,303.03
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
QNAP TS-EC1680U R2, featuring the easy-to-use QTS operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TS-EC1680U R2 is 10GbE-ready, delivers exceptional performance, and supports cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many practical business functions, making it the ideal choice for SMBs to secure important business data. It also includes abundant multimedia applications backed by its powerful hardware specifications.- Built-in 10GbE, highly-efficient storage solution for HD video editing and sharing
- 3,500+ MB/s throughput and 390,000+ IOPS
- Two internal cache ports and up to 4 SSDs for caching
- Scalable design, up to 864TB raw capacity
- Virtualization-ready, centralized data storage, backup, sharing and disaster recovery
QTS - Simple and efficient
Thanks to QTS’s intuitive user interface, system operations of the TS-EC1680U R2 are smooth and handy. Its intelligent desktop allows you to find the desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.
Qsirch – A smarter, faster way to search
Quickly and easily find documents, photos, videos, and music with Qsirch, QNAP's new built-in NAS search application lets you find what you need by real-time, natural search. Simply type in as much as you know about what you are trying to find, including bits of the file name or even words/phrases in the document, and Qsirch will display a list of matches, complete with thumbnails, as you type. Qsirch even remembers your search history so you can quickly navigate to files you've previously searched for. Qsirch is a huge productivity boost – it greatly reduces the amount of time spent looking for files on the NAS so you can focus on other tasks.
Breakthrough performance
The TS-EC1680U R2 supports 6Gbps hard drives driving over 3,500 MB/s throughput and 390,000 IOPS. Featuring with Intel® Xeon® E3 v3 Quad-Core Processor and 4 GB DDR3 ECC RAM, the TS-EC1680U R2 greatly enhances efficiency of CPU-consuming tasks and serves more concurrent tasks at the same time.
Internal cache port for IO acceleration
The TS-EC1680U R2 supports two on-board mSATA internal cache ports, and up to 4 SSDs can be used for caching. By installing mSATA flash modules (optional purchase), the IOPS performance of storage volumes can remarkably boost. It is perfect for improving overall workflow of random IOPS demanding applications such as database and virtualization. The internal cache port design reserves the space of hard drive tray for more storage capacity.
Removable motherboard drawer for easy maintenance
With the TS-EC1680U R2's removable motherboard drawer, IT administrators have easier access in upgrading/installing components such as RAM, the internal cache and 10GbE adapter. The motherboard itself can be removed and replaced without needing to remove the heavy TS-EC1680U R2 from the rack cabinet, making it especially useful in maintaining the TS-EC1680U R2 in data centers with multiple rack cabinets.
Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 16 |
| Storage drive interface | Serial ATA II, Serial ATA III |
| Storage drive size | 2.5/3.5" |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Processor | |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 84 W |
| System bus rate | 5 GT/s |
| Stepping | C0 |
| Scalability | 1S |
| Processor threads | 8 |
| Processor socket | LGA 1150 (Socket H3) |
| Processor series | Intel Xeon E3-1200 v3 |
| Processor package size | 37.5 x 37.5 mm |
| Processor operating modes | 32-bit, 64-bit |
| Processor lithography | 22 nm |
| Processor codename | Haswell |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Processor boost frequency | 3.9 GHz |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| On-board graphics card model | Intel® HD Graphics P4600 |
| ECC supported by processor | Yes |
| CPU configuration (max) | 1 |
| Bus type | DMI2 |
| Maximum internal memory supported by processor | 32 GB |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Conflict-Free processor | No |
| Processor ARK ID | 80916 |
| Processor frequency | 3.5 GHz |
| Processor family | Intel® Xeon® E3 V3 Family |
| Processor model | E3-1246V3 |
| Processor cores | 4 |
| L3 cache | 8 MB |
| Memory | |
| Internal memory type | DDR3 |
| Internal memory | 4 GB |
| Maximum RAM supported | 32 GB |
| Memory slots | 4 |
| Flash memory | 512 MB |
| Network | |
| Link aggregation | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Supported network protocols | CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 4 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Graphics | |
| On-board graphics card model | Intel® HD Graphics P4600 |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 11.2 |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| Design | |
| Cooling type | Active |
| Fan diameter | 3.15" (8 cm) |
| Drive bay locking | Yes |
| Built-in display | No |
| Product colour | Black, Gray |
| Number of fans | 4 fan(s) |
| LED indicators | Yes |
| Chassis type | Rack (3U) |
| Cable lock slot | No |
| Technical details | |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Built-in display | No |
| Built-in optical drive | No |
| Card reader integrated | No |
| Product colour | Black, Gray |
| Noise level | 40.1 dB |
| Multilingual support | Yes |
| LED indicators | Yes |
| Chassis type | Rack (3U) |
| Buzzer | Yes |
| Number of fans | 4 fan(s) |
| Performance | |
| Built-in UPnP AV media server | Yes |
| Built-in FTP server | Yes |
| System log | Yes |
| Share folder access right management | Yes |
| Share folder | CIFS/SMB |
| S.M.A.R.T. support | Yes |
| Password authentication | Yes |
| Hot spare | Yes |
| Browser supported | Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Built-in optical drive | No |
| Card reader integrated | No |
| On/off switch | Yes |
| Server operating systems supported | Windows Server 2003 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Web-based management | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS |
| Reset button | Yes |
| Operating system installed | QNAP Turbo NAS System |
| Noise level | 40.1 dB |
| Multilingual support | Yes |
| Buzzer | Yes |
| Access Control List (ACL) | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 3.15" (8 cm) |
| Number of fans | 4 fan(s) |
| Security | |
| Drive bay locking | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS |
| Cable lock slot | No |
| Access Control List (ACL) | Yes |
| Software | |
| Server operating systems supported | Windows Server 2003 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operating system installed | QNAP Turbo NAS System |
| Management features | |
| On/off switch | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 650 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 166.58 W |
| Power consumption (sleep) | 82.4 W |
| Number of power supply units | 1 |
| Power management | Yes |
| Weight & dimensions | |
| Width | 17.4" (442.5 mm) |
| Depth | 20.9" (530.5 mm) |
| Height | 5.12" (130 mm) |
| Weight | 40.3 lbs (18.3 kg) |
| Package weight | 53.4 lbs (24.2 kg) |
| Packaging content | |
| Number of screws | 128 |
| Quick installation guide | Yes |
| Cables included | AC, LAN (RJ-45) |
| Processor special features | |
| Thermal solution specification | PCG 2013D |
| Thermal Monitoring Technologies | Yes |
| Number of execution units | 20 |
| Maximum number of PCI Express lanes | 16 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Smart Cache | Yes |
| Intel® Secure Key | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel I/O Acceleration Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Enhanced Halt State | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Graphics & IMC lithography | 22 nm |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3-SDRAM |
| System requirements | |
| Server operating systems supported | Windows Server 2003 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package weight | 53.4 lbs (24.2 kg) |
| Cables included | AC, LAN (RJ-45) |
| Other features | |
| Processor ARK ID | 80916 |
| Power management | Yes |
