InFocus Core II Series INL176
SAY NO TO LAMPS – NO TO FILTERS – SAY HELLO QUANTUM LASER CORE II
Lamp Free Environmentally Friendly Laser Technology.
They are designed for maintenance-free continuous 24/7 operation, delivering powerful image performance, flexible installation, extensive features, and connectivity in an ultra-compact design.
Engage more in the classroom and have peace of mind that you and your students or classmates are using the latest cutting-edge, environmentally friendly, energy-efficient display technology on the market. The Core II Series projectors offer up to a 50% reduction in energy usage and footprint compared to our lamp-based and former laser series models.
The environmentally friendly Core II Series projectors offer up to 30,000 hours of laser life, and 99% recyclable packaging materials with an IP6X dust resistance rating deliver outstanding dust resistance for 24/7 maintenance-free operation in virtually all environments.
For the corporate installation, all models come with an RS232 connectivity for monitoring and controlling solution support.

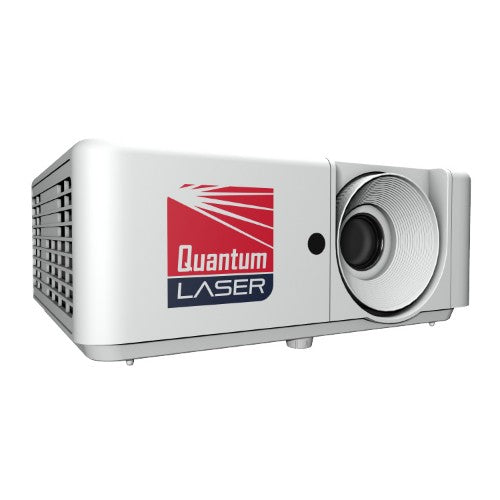

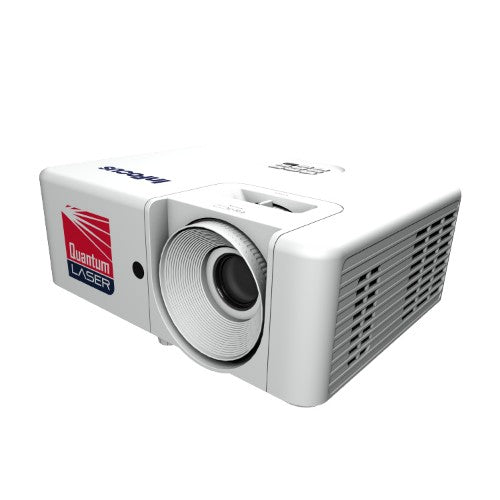

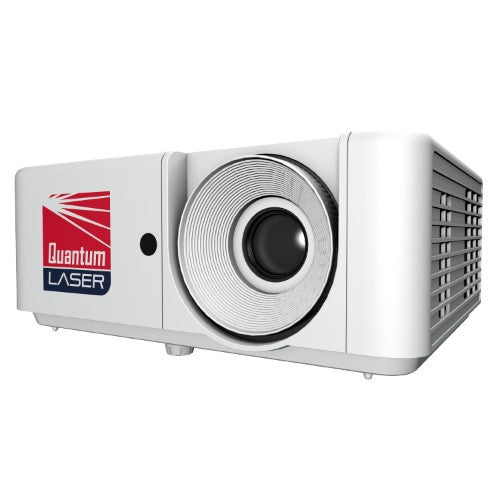

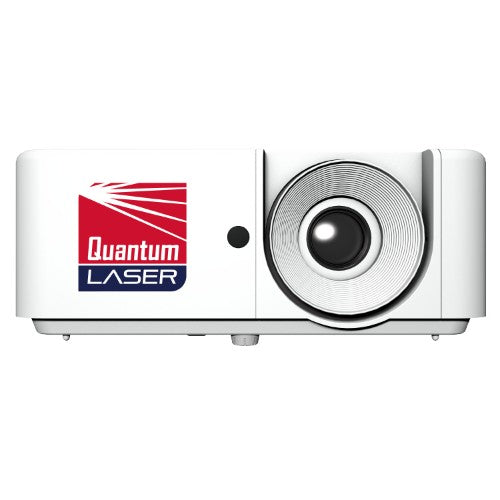

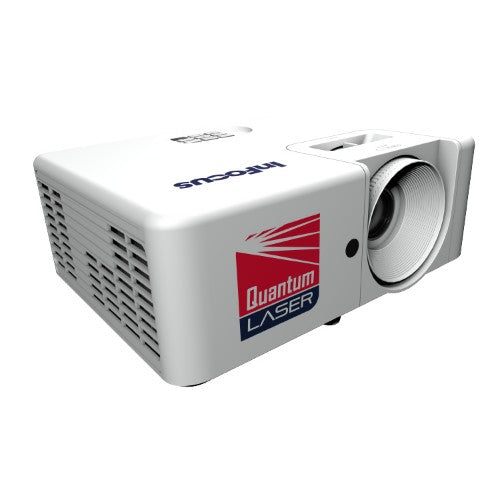

InFocus INL176 data projector Standard throw projector 4200 ANSI lumens DLP WXGA (1280x800) 3D White
Infocus
InFocus INL176 data projector Standard throw projector 4200 ANSI lumens DLP WXGA (1280x800) 3D White
Part number:
INL176
$890.04
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Environmentally-Friendly Laser Technology - The Core II Series, part of our Quantum Laser line of projectors, are deployed with solid-state laser light source technology. The complete Quantum Laser range is lamp, filter, mercury, and maintenance-free. The ultra-low energy usage for its class and long-standing durability and performance offers outstanding value and low cost of ownership
- 4K Support - Simply stunning image quality with up to 1920 x 1080 native resolution and HDMI 2.0 (HDCP 2.2) 4K support on Full HD models. HDR compatible for like life texture details and improved image depth perception
- SuperSmartProject - Our SuperSmartProject suite of power-saving, power optimisation, and utilisation features and functions combine ease of use and energy saving for your everyday use. Instant power on, signal power on, instant power off, auto power-off, 10 step illumination reduction, and Dynamic Black optimization all enhance your viewing experience while optimizing energy usage
- Flexible Installation - Flexibility for almost every surface with front, rear, and ceiling placement as well as floor to ceiling and ceiling to floor projection, full 360-degree placement across the horizontal axis and not forgetting both landscape and portrait modes ideal for retail display purposes, fixed installations, bars, clubs, and restaurants
Description
Quantum Laser Core II Series - The new benchmark in laser projection for value, performance and portability!SAY NO TO LAMPS – NO TO FILTERS – SAY HELLO QUANTUM LASER CORE II
Lamp Free Environmentally Friendly Laser Technology.
They are designed for maintenance-free continuous 24/7 operation, delivering powerful image performance, flexible installation, extensive features, and connectivity in an ultra-compact design.
Engage more in the classroom and have peace of mind that you and your students or classmates are using the latest cutting-edge, environmentally friendly, energy-efficient display technology on the market. The Core II Series projectors offer up to a 50% reduction in energy usage and footprint compared to our lamp-based and former laser series models.
The environmentally friendly Core II Series projectors offer up to 30,000 hours of laser life, and 99% recyclable packaging materials with an IP6X dust resistance rating deliver outstanding dust resistance for 24/7 maintenance-free operation in virtually all environments.
For the corporate installation, all models come with an RS232 connectivity for monitoring and controlling solution support.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.07 billion colors |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 25 - 300" |
| Projection distance | 39.4 - 393.7" (1 - 10 m) |
| Contrast ratio (typical) | 2200:1 |
| Contrast ratio (dynamic) | 3500000:1 |
| Vertical synchronization (min) | 24 kHz |
| Vertical synchronization (max) | 120 kHz |
| Uniformity | 85% |
| Keystone correction, vertical | 30° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 100 kHz |
| Projection technology | DLP |
| Projector brightness | 4200 ANSI lumens |
| Smart projector | No |
| Light source | |
| Light source type | Laser |
| Service life of light source | 30000 h |
| Lens system | |
| Zoom ratio | 1.1:1 |
| Zoom capability | Yes |
| Focus | Manual |
| Focal length range | 21.85 - 24.00 mm |
| Throw ratio | 1.54 - 1.72 |
| Offset | 112.4% |
| Zoom type | Manual |
| Interchangeable lens | No |
| Video | |
| Supported 3D formats | Frame packing, Side by side, Top and bottom |
| Analog signal format system | NTSC, PAL |
| Full HD | Yes |
| 3D | Yes |

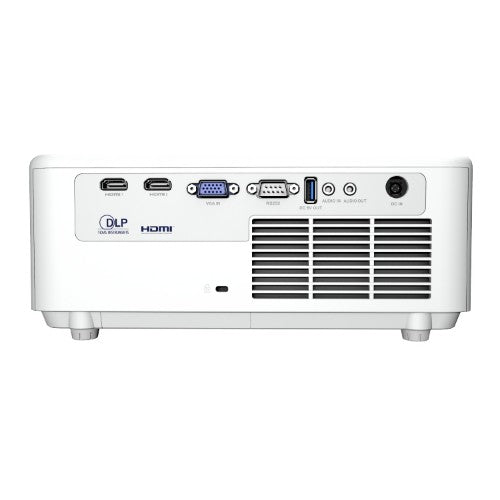

| Ports & interfaces | |
| HDMI connector type | Full-size |
| HDBaseT port | No |
| PC in (D-Sub) | Yes |
| DC-in jack | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| Microphone in | No |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| PC Audio in | Yes |
| HDMI version | 1.4 |
| DVI port | No |
| AUX in | No |
| AC (power) in | No |
| S/PDIF out port | No |
| Service port type | USB Type-A |
| USB 2.0 Type-A ports quantity | 1 |
| Network | |
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
| Bluetooth Low Energy (BLE) | No |
| Miracast | No |
| Web browser | No |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Noise level | 30 dB |
| Number of OSD languages | 23 |
| Auto signal detection | Yes |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| TV tuner integrated | No |
| RMS rated power | 15 W |
| Equalizer | No |
| Built-in microphone | No |
| Design | |
| Market positioning | Business |
| Product type | Standard throw projector |
| Housing material | Plastic |
| Cable lock slot type | Kensington |
| Product colour | White |
| Cable lock slot | Yes |
| Placement | Ceiling, Desktop, Wall |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 -240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 139 W |
| Power source | AC |
| Power consumption (typical) | 120 W |
| Power consumption (standby) | 0.5 W |
| Auto power off | Yes |
| Processor | |
| Built-in processor | No |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Weight & dimensions | |
| Package width | 110.2" (2800 mm) |
| Package depth | 61" (1550 mm) |
| Package height | 157.5" (4000 mm) |
| Weight | 6.39 lbs (2.9 kg) |
| Width | 109.4" (2780 mm) |
| Depth | 85" (2160 mm) |
| Height | 45.7" (1160 mm) |
| Package weight | 9.7 lbs (4.4 kg) |
| Packaging content | |
| 3D glasses included | No |
| Tripod included | No |
| Remote control included | Yes |
| Remote control type | IR |
| Mounting brackets included | No |
| Manual | Yes |
| Carrying case | No |
| Cables included | HDMI, Power |
| Batteries included | No |
| AC adapter included | Yes |
| Interactive pen included | No |
| Technical details | |
| Sustainability compliance | Yes |
| Introduction year | 2023 |
| Introduction month | May |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), REACH, RoHS, cTUVus, WEEE |
