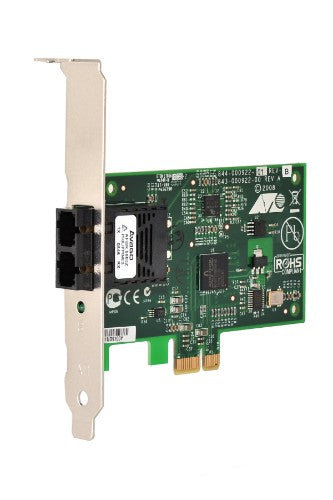

100FX (SC), PCIe x 1, secure network interface card - TAA

Description

The AT-2712FX/SC Network Interface Card is an ideal fit for fiber to the desktop networks that depend on secure and reliable systems. With a small form factor PCIe x 1 Bus the AT-2712FX is an ideal fit for government, education or other networks dependent on highly secure capabilities.

- Advanced centralized power management
- NDIS 6 IPSec task offload compliant (Vista Logo Compliant)
- 32 security associations
- DASH manageability complaint with v1.1 as defined by the Desktop and Mobile Workgroup
- IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO)
- Wake on LAN (WoL) support meeting ACPI requirements
- Statistics for SNMP MIB II
- Broadcom TruManage™: Allows remote management of PC when powered on and/or off

Specifications

Ports & interfaces
Internal	Yes
Connector(s)	SC
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	100 Mbit/s
Wireless LAN features
Wi-Fi	No
Network
Wi-Fi	No
Ethernet LAN	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Fiber ethernet cabling technology	100BASE-FX
Maximum data transfer rate	100 Mbit/s
Design
Certification	FCC CE TAA
Internal	Yes
LED indicators	Yes
Form factor	LP
Software
Windows operating systems supported	Yes
Power
Power consumption	760 mA
Indication
Link/Act LED	Yes
LED indicators	Yes
System requirements
Windows operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Operating altitude	0 - 120000" (0 - 3048 m)
Weight & dimensions
Width	4.21" (107 mm)
Height	2.2" (56 mm)
Weight	1.41 oz (40 g)
Performance
Windows operating systems supported	Yes
Certificates
Certification	FCC CE TAA
Other features
Form factor	LP
Link/Act LED	Yes
Connector(s)	SC
Technical details
Compliance certificates	RoHS
