10,000-Lumen Professional Installation Projector w/ 4K support
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Dual Computer Inputs
Ensures quick switching between presentations.
Edge Blending
Blend multiple projectors together to create not standard images
PIP/POP/Side-by-Side
Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.
Motorized Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.
Quick Startup and Quick Power-Off
Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
TileMatrix™
Allows users to customize a video wall configuration using advanced On Screen Display controls.
VORTEX Technology Plus
Improves white level, color accuracy, dynamic range and varying levels of black in an image.
Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Stacking Capabilities
Allows the projectors to boost an image’s brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Geometric Correction
Allows you to project on spheres, cylinders, corner angles and more.
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
4K Ready
Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.
Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
Sharp

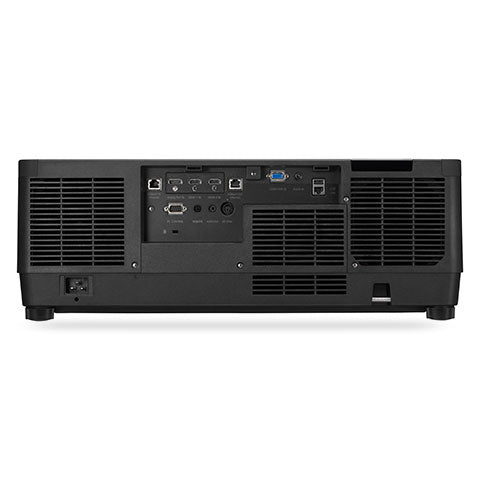

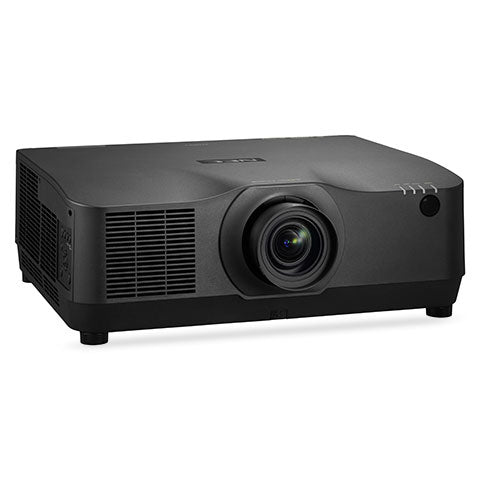

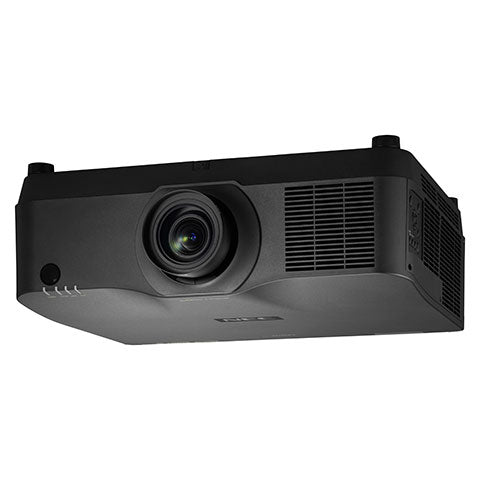

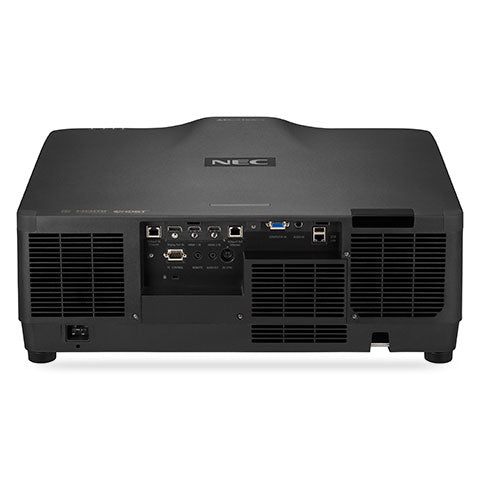

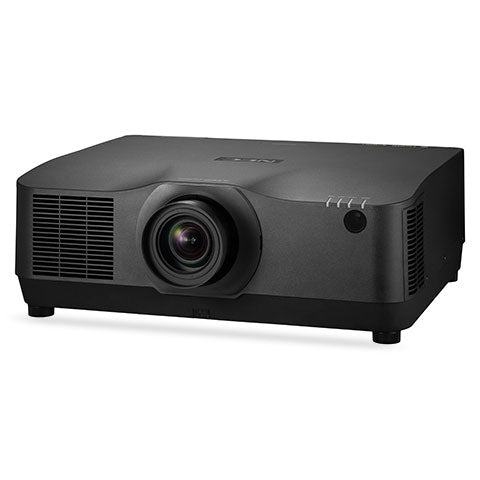

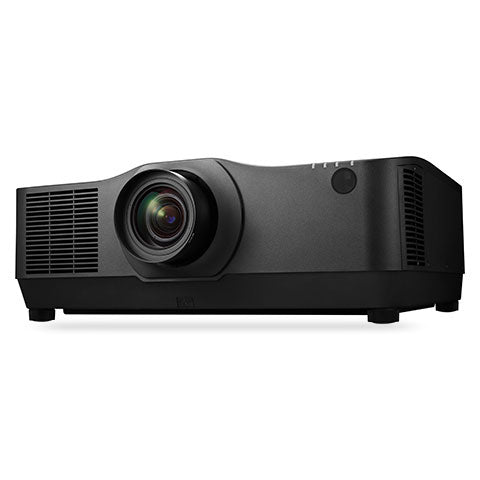

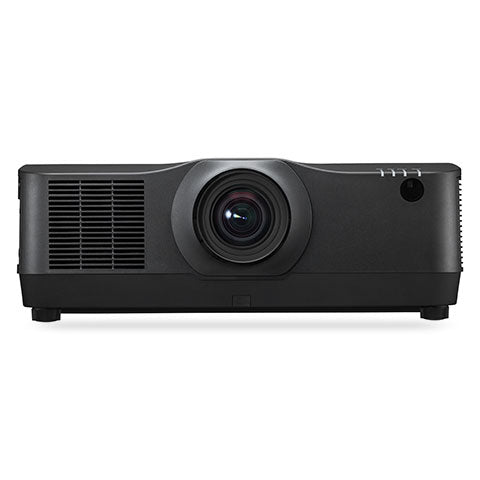

Sharp NP-PA1004UL-B data projector Standard throw projector 10000 ANSI lumens LCD WUXGA (1920x1200) Black
Part number:
NP-PA1004UL-B
$12,194.37
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs
- Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
- TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Repeater
- Cinema Quality video processing/scaling creates life-like images
- Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
- 10,000-lumen brightness enhances images for most applications
- ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space
Description
NEC's PA1004UL is a 10,000-lumen LCD laser projector (Black cabinet) with advanced professional installation features for higher education and corporate users. A new sealed LCD cooling system developed for the PA Series installation projectors delivers a filter/maintenance free projector with while delivering almost whisper quiet operation. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities along with built-in edge blending and stacking. The HDBaseT input and seperate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Dual Computer Inputs
Ensures quick switching between presentations.
Edge Blending
Blend multiple projectors together to create not standard images
PIP/POP/Side-by-Side
Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.
Motorized Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.
Quick Startup and Quick Power-Off
Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
TileMatrix™
Allows users to customize a video wall configuration using advanced On Screen Display controls.
VORTEX Technology Plus
Improves white level, color accuracy, dynamic range and varying levels of black in an image.
Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Stacking Capabilities
Allows the projectors to boost an image’s brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Geometric Correction
Allows you to project on spheres, cylinders, corner angles and more.
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
4K Ready
Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.
Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
Specifications
| Projector | |
|---|---|
| Projector native resolution | WUXGA (1920x1200) |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 40 - 500" |
| Projection distance | 29.1 - 822.8" (0.74 - 20.9 m) |
| Contrast ratio (typical) | 3000000:1 |
| Vertical synchronization (min) | 24 kHz |
| Vertical synchronization (max) | 120 kHz |
| Keystone correction, vertical | -40 - 40° |
| Keystone correction, horizontal | -40 - 40° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 153 kHz |
| Projection technology | LCD |
| Projector brightness | 10000 ANSI lumens |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lens system | |
| Focus | Motorized |
| Aperture range (F-F) | 2 - 6.27 |
| Throw ratio | 0.8:1 Manual Fixed Lens , 1.16 – 1.56:1 Manual Zoom Lens w/lens shift , 1.46 – 3.02:1 Manual Zoom Lens w/lens shift , 2.90 – 4.79:1 Manual Zoom Lens w/lens shift , 4.59 – 7.02:1 Manual Zoom Lens w/lens shift , 0.32:1 Ultra-Short Throw Lens / 0.79 to 1.11:1 Motorized Zoom Lens / 1.30 to 3.02:1 Motorized Zoom Lens / 2.99 to 5.93:1 Motorized Zoom Lens |
| Video | |
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Ports & interfaces | |
| HDBaseT port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| DisplayPorts quantity | 1 |
| Serial interface type | RS-232 |
| HDMI version | 2.0 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Sync-on-green (SOG) | Yes |
| Separate H/V sync | Yes |
| Composite sync | Yes |
| HDCP | Yes |
| Noise level | 35 dB |
| Noise level (economic mode) | 32 dB |
| Multimedia | |
| Built-in speaker(s) | No |
| Design | |
| Market positioning | Education |
| Product type | Standard throw projector |
| Product colour | Black |
| Placement | Ceiling, Floor |
| Display | |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 0.76" |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Power consumption (max) | 635 W |
| Power source | AC |
| Power consumption (typical) | 515 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (PowerSave) | 0.22 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 25 - 85% |
| Storage temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating altitude | 0 - 143700.8" (0 - 3650 m) |
| Weight & dimensions | |
| Package width | 28.9" (735 mm) |
| Package depth | 14.1" (359 mm) |
| Package height | 24.8" (631 mm) |
| Weight | 53.8 lbs (24.4 kg) |
| Width | 23.6" (599 mm) |
| Depth | 8.62" (219 mm) |
| Height | 19.3" (490 mm) |
| Package weight | 63.7 lbs (28.9 kg) |
