INF6555 - JTouch 55 Series
Cutting-edge technology at a competitive price point. For a more connected and engaging collaboration experience in class and meeting rooms. InFocus JTouch 55 Series offers ease of use bringing the capability to the room without complexity for a proven return on your technology investment. It is simple to deploy and support, leading to a lower total cost of ownership.
LIGHTMANAGER™ command and control software is included with all 55 Series models. Administrators can use the software to manage the deployment of apps, release firmware updates, deploy settings, and schedule alert messages all remotely over multiple displays.
Our most advanced JTouch running Android 11 is controlled by the MediaTek™ 9950 SoC with the ARM Cortex™ A73 Quad Core 1.8Ghz. This powerful combination increases computing performance by up to 68% and delivers flawless 4K video performance.
Infocus
InFocus INF6555 interactive whiteboard 65" 3840 x 2160 pixels Touchscreen Black HDMI
Part number:
INF6555
$1,504.90
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Designed and built with 2nd generation zero bonding technology and 3mm hardened anti-glare glass. Elegant narrow bezels, concealed snap-in wireless module, magnetic pen holders and stereo 20-watt speakers all provide an outstanding crystal clear audio-visual and multi-touch experience more significant than ever before
- Upgrade the 55 series with a Windows 11 PC module with additional accessories and be ready for Zoom, Google Meet™, Microsoft Teams™, and more
- The dual-band MU-MIMO wireless module provides the latest WiFi-6 standard supporting multiple device connections, reduced latency and throughput speeds of up to 9.6 Gigabits per second. This latest technology provides the base connection for seamless casting and collaboration capabilities of the LightCast3 software for meetings over a local network or via the Jtouch hotspot for additional security
- Easily connect USB-C devices through the 55 series's USB-C port with up to 65-watt power delivery. USB-C supports video, audio, touch, data, and power output for charging laptop devices quickly over a single cable
- Users can easily search for and install from a curated selection of apps in the InFocus LightStore or use the built-in Cloud Drive app for accessing documents on OneDrive™ or Google Drive™. Creative meetings and classroom lessons are enhanced with annotation anywhere, viewing Office files, creating whiteboards, and so much more. Administrators can use the InFocus LightManager software to manage the deployment of apps, release firmware updates, deploy settings, schedule alert messages all remotely
Description
Our new flagship interactive touch displays for education and the workplace - now running Android 11 with 8 RAM and 64GB ROMCutting-edge technology at a competitive price point. For a more connected and engaging collaboration experience in class and meeting rooms. InFocus JTouch 55 Series offers ease of use bringing the capability to the room without complexity for a proven return on your technology investment. It is simple to deploy and support, leading to a lower total cost of ownership.
LIGHTMANAGER™ command and control software is included with all 55 Series models. Administrators can use the software to manage the deployment of apps, release firmware updates, deploy settings, and schedule alert messages all remotely over multiple displays.
Our most advanced JTouch running Android 11 is controlled by the MediaTek™ 9950 SoC with the ARM Cortex™ A73 Quad Core 1.8Ghz. This powerful combination increases computing performance by up to 68% and delivers flawless 4K video performance.
Specifications
| Display | |
|---|---|
| Display diagonal | 65" |
| Working area | 56.2 x 31.7" (1428 x 804 mm) |
| Contrast ratio (typical) | 1200:1 |
| Touchscreen | Yes |
| Technology | Infrared (IR) |
| Accuracy touch | 1 mm |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 20 |
| Touch system response time | 10 ms |
| Panel type | IPS |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Response time | 8 ms |
| Touch technology | Multi-touch |
| Screen glass thickness | 0.126" (3.2 mm) |
| Display brightness | 450 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 1.073 billion colors |
| HD type | 4K Ultra HD |
| LED backlighting type | Direct-LED |
| Contrast ratio (dynamic) | 5000:1 |
| Anti-glare screen | Yes |
| Touch object size (min) | 0.118" (3 mm) |
| Surface material | Tempered glass |
| Native aspect ratio | 16:9 |
| Hardness | 7H |
| Palm rejection | Yes |
| LED backlight | Yes |
| Features | |
| Display diagonal | 65" |
| Working area | 56.2 x 31.7" (1428 x 804 mm) |
| Contrast ratio (typical) | 1200:1 |
| Touchscreen | Yes |
| Technology | Infrared (IR) |
| Accuracy touch | 1 mm |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 20 |
| Touch system response time | 10 ms |
| Panel type | IPS |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Response time | 8 ms |
| Touch technology | Multi-touch |
| Screen glass thickness | 0.126" (3.2 mm) |
| Display brightness | 450 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 1.073 billion colors |
| HD type | 4K Ultra HD |
| LED backlighting type | Direct-LED |
| Contrast ratio (dynamic) | 5000:1 |
| Anti-glare screen | Yes |
| Touch object size (min) | 0.118" (3 mm) |
| Surface material | Tempered glass |
| Native aspect ratio | 16:9 |
| Hardness | 7H |
| Palm rejection | Yes |
| LED backlight | Yes |
| Product colour | Black |
| Graphics card | Mali G52 |
| Operating system installed | Android |
| Country of origin | China |
| Computer system | |
| Graphics card | Mali G52 |
| Operating system installed | Android |
| Maximum internal memory | 8 GB |
| Built-in processor | Yes |
| Processor frequency | 1.8 GHz |
| RAM capacity | 64 GB |
| Processor architecture | ARM Cortex-A73 |
| Operating system version | 9 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 20 W |
| Built-in subwoofer | No |
| Built-in microphone | No |
| Projector | |
| Aspect ratio | 16:9 |
| Built-in projector | No |
| Contrast ratio (typical) | 1200:1 |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | No |
| Wi-Fi | Yes |
| Near Field Communication (NFC) | No |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ports & interfaces | |
| Interface | HDMI |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 3 |
| HDCP | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232 ports | 1 |
| USB Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | No |
| USB 2.0 Type-B Touch ports quantity | 2 |
| HDMI version | 2.0 |
| HDMI output ports quantity | 1 |
| S/PDIF out port | Yes |
| HDCP version | 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Audio output | 1 |
| USB Power Delivery up to | 65 W |
| USB Power Delivery | Yes |
| AV input | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | No |
| Wi-Fi | Yes |
| Near Field Communication (NFC) | No |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| Product colour | Black |
| VESA mounting | Yes |
| Performance | |
| Proximity sensor | No |
| Temperature sensor | No |
| Ambient light sensor | Yes |
| Card reader integrated | No |
| Remote control included | Yes |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 2 W |
| Power consumption (off) | 0.5 W |
| USB powered | No |
| Power consumption (max) | 450 W |
| Energy efficiency scale | A+++ to G |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | MacOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Working area | 56.2 x 31.7" (1428 x 804 mm) |
| Touchscreen | Yes |
| Technology | Infrared (IR) |
| Accuracy touch | 1 mm |
| Panel type | IPS |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Response time | 8 ms |
| Country of origin | China |
| Sustainability compliance | Yes |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, RoHS, WEEE |
| Remote control included | Yes |
| Weight & dimensions | |
| Width | 58.6" (1488 mm) |
| Depth | 3.39" (86 mm) |
| Height | 35.3" (897 mm) |
| Weight | 83.8 lbs (38 kg) |
| Packaging data | |
| Package width | 64.1" (1628 mm) |
| Package depth | 8.19" (208 mm) |
| Package height | 39.6" (1005 mm) |
| Package weight | 106.9 lbs (48.5 kg) |

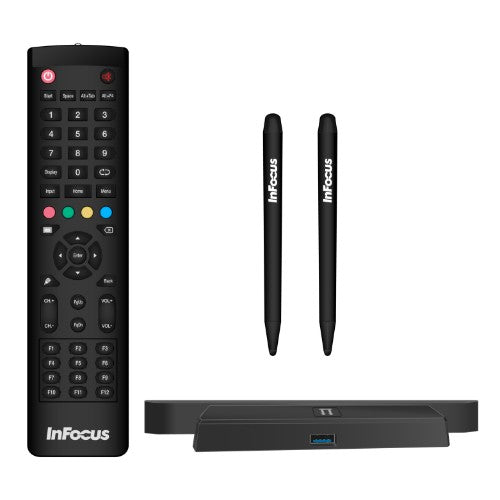

| Stylus included | Yes |
| Packaging content | |
| Cables included | HDMI, Power, USB Type-A to USB Type-B |
| Stylus included | Yes |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| Batteries included | No |
| Bundled software | Whiteboard, Browser, Finder, LightCast3, Annotation, WPS Office, Stopwatch, Screen Capture, LightServer, LightManager, LightStore, Palette, Keeper, Visulizer, Welcome, Cloud Drive, SpotLight, Screen Recording, Timer |
| Manual | Yes |
| OPS specifications | Custom PC Module |
| Open Pluggable Specification (OPS) included | No |
| Antenna included | Yes |
| Stylus pen type | Passive |
| Number of stylus pens | 2 |
| Processor | |
| Built-in processor | Yes |
| Processor frequency | 1.8 GHz |
| Processor architecture | ARM Cortex-A73 |
| Sustainability | |
| Sustainability compliance | Yes |
| Memory | |
| Maximum internal memory | 8 GB |
| RAM capacity | 64 GB |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Country of origin | China |
| Warranty period | 3 year(s) |
