SP228 Genesis II
- Perfect images.
- Vibrant colors.
- Outstanding readability and contrast.
- Compact and lightweight form.
- Versatile portable display solution.
Short-throw models for education for use with interactive whiteboards add further versatility to Genesis II.
Infocus
ScreenPlay MULTIMEDIA PROJECTOR data projector Standard throw projector 4000 ANSI lumens DLP 1080p (1920x1080) 3D White
Part number:
SP228
$614.19
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Full 3D - Display 3D content from almost any 3D source, including 3D Blu-ray players and the latest game consoles
- Industry-leading Lamp Life - An unprecedented 15,000 hours of lamp life when used in Dynamic Mode. With no filters to replace
- 24/7 Operation - They are designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use are required
- USB-A Power for Devices - Power your external devices like Google Chromecast with Amazon TV with the convenient USB-A input on the projector
- High Brightness - Get better, brighter images on any surface, in any light, with 4000 lumens on the standard throw models and 3800 lumens on short throw models
- Advanced Digital Image Correction - With the new digital edge masking and image shift features – we make getting those final image adjustments perfect
- Direct Power On/ Direct Power off - Instant power up when the projector receives an electric current, ideal for use in rooms with a “master” power switch. When you are finished power the unit down and go, no need for lengthy cooling period before your projector can be packed away
- Low Latency Gaming Mode - Improved communication time from the input source to your projector allows for an enhanced gaming experience
Description
The ScreenPlay Genesis II DLP projectors offer outstanding ultra-long lamp life, high brightness, and superb connectivity, which includes 2x HDMI ports. Designed for classroom, office, and home use, they provide:- Perfect images.
- Vibrant colors.
- Outstanding readability and contrast.
- Compact and lightweight form.
- Versatile portable display solution.
Short-throw models for education for use with interactive whiteboards add further versatility to Genesis II.
Specifications
| Projector | |
|---|---|
| Number of colours | 1.073 billion colors |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 28 - 300" |
| Projection distance | 39.4 - 385.8" (1 - 9.8 m) |
| Contrast ratio (typical) | 30000:1 |
| Vertical scan range | 56 - 85 Hz |
| Horizontal scan range | 31.469 - 97.551 kHz |
| Projector brightness (economic mode) | 2720 ANSI lumens |
| Vertical synchronization (min) | 54 kHz |
| Vertical synchronization (max) | 85 kHz |
| Uniformity | 80% |
| Matrix type | DMD |
| Keystone correction, vertical | ± 40° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 97 kHz |
| Projection technology | DLP |
| Projector brightness | 4000 ANSI lumens |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 8000 h |
| Lamp type | UHP |
| Lamp power | 203 W |
| Service life of light source (economic mode) | 15000 h |
| Lens system | |
| Zoom ratio | 1.1:1 |
| Zoom capability | Yes |
| Focus | Manual |
| Throw ratio | 1.47:1 - 1.62:1 |
| Offset | 116% |
| Zoom type | Manual |
| Video | |
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported video modes | 480i, 480p, 576i, 720p, 1080i, 1080p |
| Supported graphics resolutions | 800 x 600 (SVGA), 854 x 480 (WVGA), 1024 x 600, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Adjustable colour temperature | Yes |

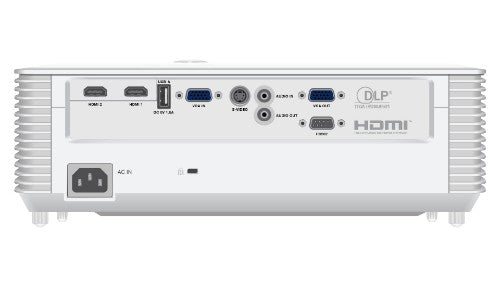

| Ports & interfaces | |
| Mobile High-Definition Link (MHL) | No |
| HDMI connector type | Full-size |
| HDBaseT port | No |
| PC in (D-Sub) | Yes |
| DC-in jack | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Microphone in | No |
| S-Video inputs quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| PC Audio in | Yes |
| HDMI version | 1.4a |
| DVI port | No |
| AUX in | No |
| AC (power) in | Yes |
| S/PDIF out port | No |
| Common interface Plus (CI+) | No |
| Audio Return Channel (ARC) | No |
| Consumer Electronics Control (CEC) support | No |
| Network | |
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
| Bluetooth Low Energy (BLE) | No |
| Miracast | No |
| Web browser | No |
| Features | |
| Sync-on-green (SOG) | No |
| Separate H/V sync | Yes |
| Composite sync | No |
| Password protection | Yes |
| Electronic Programme Guide (EPG) | No |
| HDCP | Yes |
| Preset modes | Presentation, Bright, Cinema, sRGB, Blackboard, Custom, 3D |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Hindi, Hungarian, Indonesian, Italian, Norwegian, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Noise reduction | No |
| Noise level | 30 dB |
| Noise level (economic mode) | 26 dB |
| Certification | UL and c-UL, FCC, CE, CCC+CECP, NOM, PCT/CU/EAC, CB, Nemco/GS |
| Air filter | No |
| Trumotion technology | No |
| HID support | No |
| Teletext function | No |
| Hybrid Broadcast Broadband TV (HbbTV) | No |
| Hotel mode | No |
| High Dynamic Range (HDR) supported | No |
| 4K Ultra HD upscaling | No |
| Eye protection | No |
| Projection modes | Ceiling, Front, Rear |
| Screen mirroring | No |
| Sleep timer | Yes |
| Number of OSD languages | 27 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| Video formats supported | 3GP, AVI, MOV, MP4, MPEG, MPG, RM, RMVB |
| Image formats supported | BMP, JPEG XR, JPG, PNG |
| Audio formats supported | AAC, MP3, WAV, WMA |
| TV tuner integrated | No |
| RMS rated power | 10 W |
| Logical Channel Number (LCN) | No |
| Equalizer | No |
| Built-in microphone | No |
| Design | |
| Market positioning | Home cinema |
| Product type | Standard throw projector |
| Housing material | Plastic |
| Cable lock slot type | Kensington |
| Product colour | White |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Placement | Desktop, Ceiling |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 267 W |
| Power source | AC |
| Power consumption (typical) | 267 W |
| Power consumption (standby) | 0.5 W |
| Auto power off | Yes |
| Power consumption (economy mode) | 210 W |
| Processor | |
| Built-in processor | No |
| Supplier features | |
| Battery type | AA |
| Recommended gender | Any gender |
| Assembly required | No |
| Batteries required | Yes |
| Invoice unit | Yes |
| Orderable unit | Yes |
| Manual languages (ISO 639 format) | Multi |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Weight & dimensions | |
| Package width | 15.7" (400 mm) |
| Package depth | 13.3" (337 mm) |
| Package height | 6.61" (168 mm) |
| Weight | 5.73 lbs (2.6 kg) |
| Width | 12.3" (312.9 mm) |
| Depth | 9.29" (236 mm) |
| Height | 4.21" (107 mm) |
| Package weight | 8.6 lbs (3.9 kg) |
| Packaging content | |
| 3D glasses included | No |
| Tripod included | No |
| Remote control included | Yes |
| Battery type | AA |
| Remote control type | IR |
| Mounting brackets included | No |
| Manual | Yes |
| Carrying case | No |
| Cables included | AC, VGA |
| Batteries included | No |
| AC adapter included | No |
| Technical details | |
| Sustainability compliance | Yes |
