Intel Xeon D-1528, Intel® Xeon® D, BGA 1667, 14 nm, Tray, Intel, D-1528
Intel

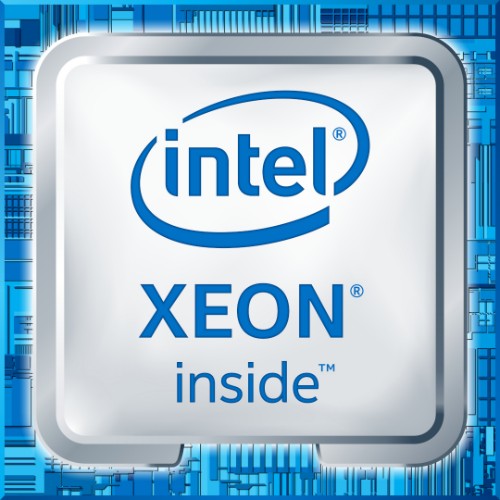

Intel Xeon D-1528 processor 1.9 GHz 9 MB L3 Tray
Part number:
GG8067402569500
$398.41
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Intel Xeon D-1528. Processor family: Intel® Xeon® D, Processor socket: BGA 1667, Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR4-SDRAM, DDR3-SDRAM. Market segment: Server, PCI Express slots version: 2.0, 3.0, PCI Express configurations: 1x16, 1x4, 1x8. USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). Intel® Turbo Boost Technology 2.0 frequency: 2.5 GHzSpecifications
| Processor | |
|---|---|
| Processor base frequency | 1.9 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 35 W |
| Processor cache | 9 MB |
| Processor ARK ID | 91198 |
| Processor model | D-1528 |
| Processor threads | 12 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.5 GHz |
| Stepping | V2 |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor family | Intel® Xeon® D |
| Processor cores | 6 |
| Processor socket | BGA 1667 |
| Processor series | Intel Xeon D-1500 |
| Processor cache type | L3 |
| Memory | |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR3-SDRAM |
| Supported memory types | DDR4-SDRAM, DDR3-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Power | |
| Thermal Design Power (TDP) | 35 W |
| Technical details | |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 2.0, 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Product type | System on Chip |
| Processor cache | 9216 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 35 W |
| Supported memory types | DDR4-SDRAM, DDR3-SDRAM |
| Status | Launched |
| Processor series | Intel Xeon D-1500 |
| Market segment | Server |
| Launch date | Q4'15 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Processor cache type | L3 |
| Maximum memory | 128 GB |
| Intel TSX-NI version | 1.00 |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor D Family |
| Memory speed (max) | 2133 MHz |
| Servicing status | End of Servicing Updates |
| End of servicing updates date | Saturday, December 31, 2022 |
| Features | |
| Maximum number of PCI Express lanes | 32 |
| Thermal Design Power (TDP) | 35 W |
| Processor package size | 37.5 x 37.5 mm |
| Processor ARK ID | 91198 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 2.0, 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 1S |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Market segment | Server |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G071701++ |
| I/O configuration | |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 4 |
| Integrated LAN | Yes |
| Total number of SATA connectors | 6 |
| UART | Yes |
| General Purpose IO | Yes |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| UART | Yes |
| General Purpose IO | Yes |
| Intel® OS Guard | Yes |
| Intel TSX-NI | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® Turbo Boost Technology 2.0 frequency | 2.5 GHz |
| Intel® Transactional Synchronization Extensions | Yes |
| Packaging data | |
| Package type | Tray |
| Logistics data | |
| Harmonized System (HS) code | 8542310001 |
| Weight & dimensions | |
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
| Maximum internal memory | 128 GB |
| Maximum internal memory | 131072 MB |
| CPU configuration (max) | 1 |
