Intel® Ethernet Converged Network Adapter X540-T2, retail bulk
The Intel® Ethernet Converged Network Adapter X520 family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and storage area network (SAN) networking, and proven, reliable performance.
Intel

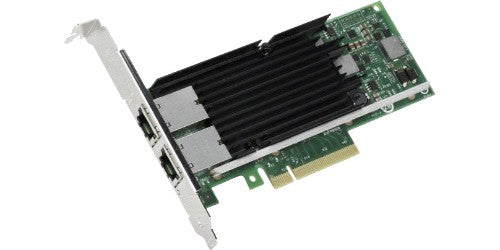

Intel X540T2BLK network card Internal Ethernet 10000 Mbit/s
Part number:
X540T2BLK
$250.62
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Intel’s new family of Intel® Ethernet Converged Network Adapter X520 are the most flexible and scalable Ethernet adapters for today’s demanding data center and cloud environments.The Intel® Ethernet Converged Network Adapter X520 family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and storage area network (SAN) networking, and proven, reliable performance.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Chipset | X540 |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad |
| Maximum operating distance | 3937" (100 m) |
| LAN controller | Intel® X540 |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Antenna | |
| Quality of Service (QoS) support | Yes |
| Technical details | |
| Quality of Service (QoS) support | Yes |
| Interface type | PCIe v2.1 (5.0 GT/s) |
| Thermal power | 13.4 W |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| PCI Card form factor | Full-height (low-profile) |
| On-chip QoS and Traffic Management | Yes |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | No |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G135872 |
| Thermal Design Power (TDP) | 13.4 W |
| Product type | Network Interface Card |
| Status | Launched |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/10-gigabit-network-adapters/ethernet-x540-t2-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q1'12 |
| Last change | 64826822 |
| Design | |
| Chipset | X540 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 500 Series Network Adapters (up to 10GbE) |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Performance | |
| Ethernet adapter ARK ID | 58954 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Thermal power | 13.4 W |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | No |
| Intel Data Direct I/O Technology | Yes |
| Other features | |
| Chipset | X540 |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Thermal Design Power (TDP) | 13.4 W |
| Product type | Network Interface Card |
| Ethernet adapter ARK ID | 58954 |
| Interface type | PCIe v2.1 (5.0 GT/s) |
| Cable type | RJ45 Category 6 up to 55 m; Category 6A up to 100 m |
| Thermal power | 13.4 W |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | No |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Status | Launched |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/10-gigabit-network-adapters/ethernet-x540-t2-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q1'12 |
| Last change | 64826822 |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 500 Series Network Adapters (up to 10GbE) |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G135872 |
| Controller type | Intel® Ethernet Controller X540 |
| Cabling type | RJ45 Category 6 up to 55 m; Category 6A up to 100 m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
