Gigabit Ethernet to Fiber Media Converter
The Ethernet RJ-45 port supports 10/100/1000Mbps Auto-Negotiation and Auto-MDI/MDIX function allowing for an easy and carefree connection to Ethernet devices. The MC-GT/SFP media convertor is designed as a compact, standalone, cost effective and high performance network solution.
Amer Networks

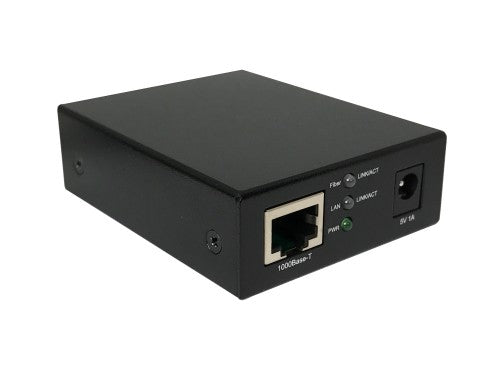

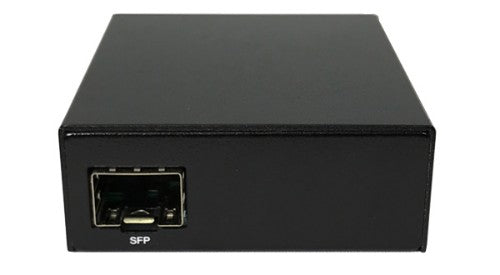

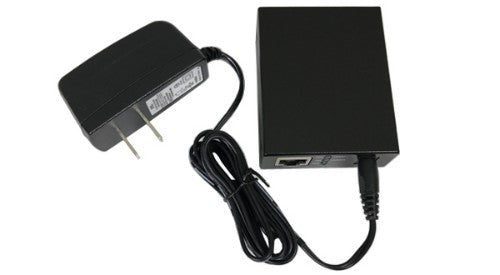

Amer Networks MC-GT/SFP network media converter 4000 Mbit/s Black
Part number:
MC-GT/SFP
$35.15
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The MC-GT/SFP media converter is a highly flexible media conversion device that allows the support of different optics and copper SFP options providing a multitude of applications. The MC-ST/SFP is equipped with 1x Gigabit Ethernet 10/100/1000Base-T RJ-45 port and one SFP Port. With the SFP slot supporting Dual-Speed 100/1000Mbps the MC-GT/SFP may be used with any vendor’s optics (SFP Transceiver) providing added compatibility and flexibility in your application.The Ethernet RJ-45 port supports 10/100/1000Mbps Auto-Negotiation and Auto-MDI/MDIX function allowing for an easy and carefree connection to Ethernet devices. The MC-GT/SFP media convertor is designed as a compact, standalone, cost effective and high performance network solution.
Specifications
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9216 |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 4000 Mbit/s |
| Fiber optic connector | SFP |
| Features | |
| LED indicators | Activity, Link, Power |
| Hot-swap | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Power consumption (typical) | 2 W |
| Weight & dimensions | |
| Width | 2.95" (75 mm) |
| Depth | 3.98" (101.2 mm) |
| Height | 0.89" (22.6 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Hot-swap | Yes |
| Internal | No |
| Compliance certificates | RoHS |
| Performance | |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Hot-swap | Yes |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | CE FCC Class A, cUL |
| Internal | No |
| Management features | |
| Hot-swap | Yes |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE FCC Class A, cUL |
| Compliance certificates | RoHS |
