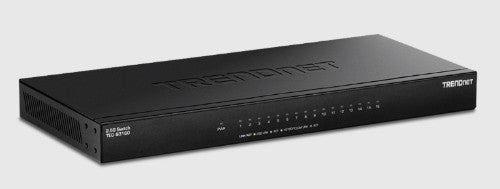

16-Port Unmanaged 2.5G Desktop Switch, Cat5, 16 x 2.5G RJ-45, 80 Gbps, 90-264 V, 47/63 Hz, 0-40° C, Black, 286 x 128 x 27 mm, 982 g
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
Wall Mountable
The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
Fanless
The fanless design of this 16-port 2.5G switch lowers energy consumption costs and eliminates operating noise.
Easy Installation
No configuration needed, simply connect network devices to the 16-port multi-gig switch
2.5G Ports
This 16-port multi-gigabit switch is equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
Switching Capacity
80Gbps switching capacity
Fanless
Fanless design on the 16-port 2.5G switch lowers energy consumption and eliminates operating noise
Housing Design
Sturdy desktop metal housing

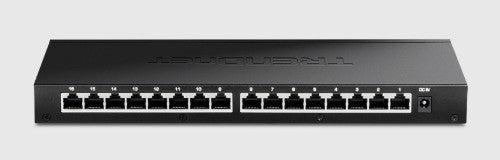

Rear Facing Ports
Hide cable clutter with rear facing ports on your desktop or rack
Wall Mountable
The 16-port 2.5G switch features a convenient wall mountable design for greater installation flexibility
19” Rackmount
Sturdy rack mountable metal housing with mounting kit included
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance
LED Indicators
LED indicators on this 16-port 2.5G switch conveniently convey port status
Trendnet
Trendnet TEG-S3160 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Desktop Black
Part number:
TEG-S3160
Sale price
$329.68
Regular price
$329.99
Save
$0.31
0%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 2.5G Ports
- Wall Mountable
- Fanless
Description
Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. The sturdy metal housing and included rackmount brackets are well-suited for wall mount or 19” 1U rack installations. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
Wall Mountable
The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.
Fanless
The fanless design of this 16-port 2.5G switch lowers energy consumption costs and eliminates operating noise.
Easy Installation
No configuration needed, simply connect network devices to the 16-port multi-gig switch
2.5G Ports
This 16-port multi-gigabit switch is equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
Switching Capacity
80Gbps switching capacity
Fanless
Fanless design on the 16-port 2.5G switch lowers energy consumption and eliminates operating noise
Housing Design
Sturdy desktop metal housing
Rear Facing Ports
Hide cable clutter with rear facing ports on your desktop or rack
Wall Mountable
The 16-port 2.5G switch features a convenient wall mountable design for greater installation flexibility
19” Rackmount
Sturdy rack mountable metal housing with mounting kit included
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance
LED Indicators
LED indicators on this 16-port 2.5G switch conveniently convey port status
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Cable types supported | Cat5e |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 12 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 80 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 59.52 Mpps |
| Design | |
| Wall mountable | Yes |
| Form factor | Desktop |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Redundant fans support | No |
| Performance | |
| Mean time between failures (MTBF) | 223000 h |
| Fanless | Yes |
| Packet buffer memory | 1.5 MB |
| Power | |
| Power consumption (max) | 7.26 W |
| Output voltage | 12 V |
| Output current | 3 A |
| Power supply included | Yes |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47/63 Hz |
| Power source | AC/DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 5.04" (128 mm) |
| Depth | 11.3" (286 mm) |
| Height | 1.06" (27 mm) |
| Weight | 34.6 oz (982 g) |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Technical details | |
| Form factor | Desktop |
| Product colour | Black |
| Mean time between failures (MTBF) | 223000 h |
| Rack mounting | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA) |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA) |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 100 Mbit/s |
