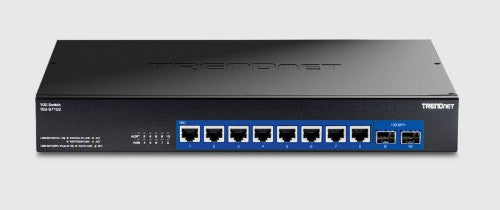

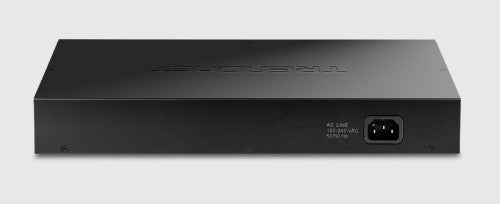

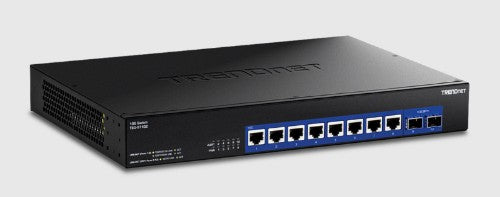

10-Port 10G Unmanaged Switch, Black, 330 x 230 x 44 mm, 2.54 kg

Key Features

• 10G Ports
• Smart Fan
• Jumbo Frame

Description

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s Unmanaged 10G Switches. This 10G switch comes equipped with eight 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over your existing Cat6A or better cabling. The 10G switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The smart fan design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 10G switches are cost-effective solutions to increase your network’s throughput.

10G Ports

Offers eight 10G ports, and two 10G SFP+ ports for high-speed network uplinks or downlink connections for a cost-effective solution in adding 10G link capability.

Smart Fan

The smart fan design lowers power consumption and energy costs, and eliminates distracting operating noise.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance.

Easy Installation

No configuration needed, simply connect network devices to the 10G switch

10G Ports

Equipped with 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over existing Cat6A or better cabling

10G SFP+ Ports

The 10Gb switch features 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G fiber link capability

Smart Fan

Smart fan design lowers energy consumption and eliminates distracting operating noise

Housing Design

Sturdy metal housing

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

LED Indicators

LED indicators on this 10Gb switch conveys port status

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	2
Fiber optic connector	RJ-45, SFP+
Power cables quantity	1
Network
Networking standards	IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Full duplex	Yes
Ethernet LAN data rates	2500 Mbit/s
10G support	Yes
Data transmission
Jumbo frames	12
Packet buffer memory	2 MB
MAC address table	32000 entries
Switching capacity	200 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	148.8 Mpps
Design
Wall mountable	Yes
Form factor	Desktop
Product colour	Black
LED indicators	Yes
Rack mounting	Yes
Number of fans	1 fan(s)
Redundant fans support	Yes
Performance
Noise level	47 dB
Mean time between failures (MTBF)	151765 h
Fanless	No
Packet buffer memory	2 MB
Power
Power consumption (max)	40 W
Power supply included	Yes
AC input voltage	90 - 264 V
AC input frequency	47/63 Hz
Power source	AC/DC
Power cable length	59.1" (1.5 m)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	9.06" (230 mm)
Depth	13" (330 mm)
Height	1.73" (44 mm)
Weight	5.6 lbs (2.54 kg)
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	Power
AC adapter included	Yes
Packaging data
AC adapter included	Yes
Rack mount kit	Yes
Quick start guide	Yes
Cables included	Power
Optical fiber
Fiber optic connector	RJ-45, SFP+
Technical details
Form factor	Desktop
Product colour	Black
Noise level	47 dB
Mean time between failures (MTBF)	151765 h
Rack mounting	Yes
Compliance certificates	CE, ETL, Federal Communications Commission (FCC), Low Voltage Directive (LVD), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA)
Memory
Packet buffer memory	2 MB
Certificates
Compliance certificates	CE, ETL, Federal Communications Commission (FCC), Low Voltage Directive (LVD), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA)
Indication
LED indicators	Yes
Other features
Ethernet LAN data rates	2500 Mbit/s
