28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports
Free up router resources by offloading routing processes to the SFP switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to minimize network traffic, as well as optimize IP surveillance system performance.
TRENDnet’s Layer 2 Managed SFP Switch features four 10GSFP+ slots for high-speed network connections, providing a costeffective solution in adding 10G link capability to an SMB network.
Trendnet

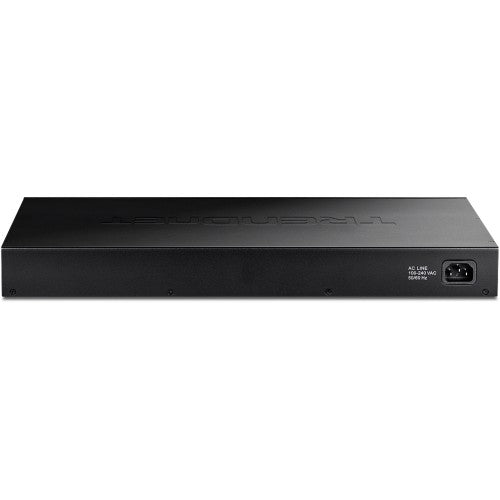

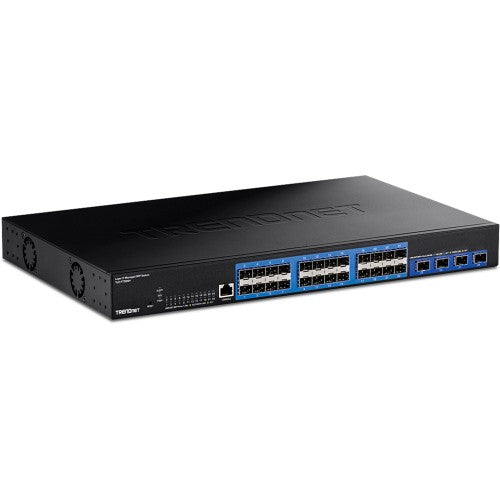

Trendnet TL2-F70284 network switch Managed Black
Part number:
TL2-F70284
Sale price
$543.02
Regular price
$667.10
Save
$124.08
19%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 24 x Gigabit SFP ports (100Mbps/1Gbps)
- 4 x 10G SFP+ ports (1Gbps/10Gbps)
- Supports 100Mbps/1Gbps link speeds on Gigabit SFP ports
- Support 1Gbps/10Gbps link speeds on 10G SFP+ ports
- Web-based and CLI management
- Supports IPv6, LACP, VLAN, and IGMP Snooping
- 802.1Q tagged-based VLAN, GVRP, and Voice VLAN support
- QoS with queue scheduling support
- Supports inter-VLAN routing and IPv4/IPv6 static routing
- Smart fans
- 128Gbps switching capacity
- Supports TRENDnet’s RJ-45 copper and fiber SFP modules
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s 28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports, model TL2-F70284, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed SFP switch comes with an intuitive web-based interface. Advanced management features on this managed SFP switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring; it is fully manageable through the console port, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to the SFP switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to minimize network traffic, as well as optimize IP surveillance system performance.
TRENDnet’s Layer 2 Managed SFP Switch features four 10GSFP+ slots for high-speed network connections, providing a costeffective solution in adding 10G link capability to an SMB network.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Packet buffer memory | 2 MB |
| MAC address table | 32000 entries |
| Switching capacity | 128 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 95.2 Mpps |
| Number of VLANs | 4094 |
| Security | |
| IGMP snooping | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Number of fans | 3 fan(s) |
| Certification | CE FCC ETL |
| Performance | |
| Noise level | 52.9 dB |
| Mean time between failures (MTBF) | 412539 h |
| Packet buffer memory | 2 MB |
| Power | |
| Power consumption (max) | 38.4 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 10.6" (270 mm) |
| Height | 1.73" (44 mm) |
| Weight | 8.42 lbs (3.82 kg) |
| Technical details | |
| Product colour | Black |
| Noise level | 52.9 dB |
| Mean time between failures (MTBF) | 412539 h |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 2 MB |
| Certificates | |
| Certification | CE FCC ETL |
