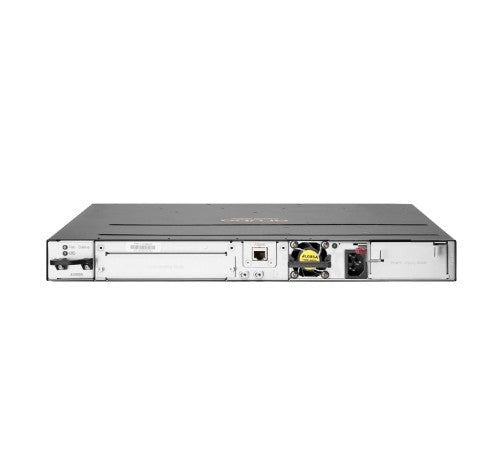

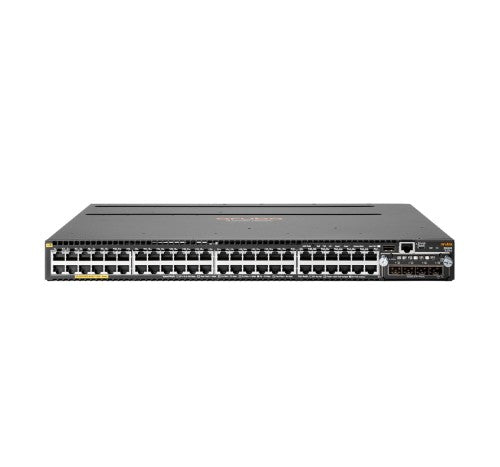

HPE Aruba Networking 3810M 48G PoE+ 4SFP+ 680W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Description

HPE Aruba Networking 3810M 48G PoE+ 4SFP+ 680W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. MAC address table: 64000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
Virtual LAN features
VLAN support	Yes
Performance
Packet buffer memory	13.5 MB
Stackable	Yes
Virtual stacking (units)	10
Processor frequency	1000 MHz
Memory type	DDR3-SDRAM
Internal memory	2048 MB
Built-in processor	Yes
Harmonized System (HS) code	85176990
Technical details
Virtual stacking (units)	10
Form factor	1U
Product colour	Gray
Stackable	Yes
Processor frequency	1000 MHz
Rack mounting	Yes
Built-in processor	Yes
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Network
Auto-sensing	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Link aggregation	Yes
IP routing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Data transmission
Throughput	285.7 Mpps
Latency (1 Gbps)	2.8 µs
Latency (10 Gbps)	1.8 µs
Packet buffer memory	13.5 MB
MAC address table	64000 entries
Switching capacity	480 Gbit/s
Jumbo frames support	Yes
Security
Access Control List (ACL)	Yes
DHCP features	DHCP server
Memory
Packet buffer memory	13.5 MB
Memory type	DDR3-SDRAM
Internal memory	2048 MB
Design
Form factor	1U
Product colour	Gray
Stackable	Yes
Rack mounting	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
Power consumption (typical)	680 W
Number of power supply units	1
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	1440 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Weight & dimensions
Width	17.4" (442.5 mm)
Depth	17" (431.3 mm)
Height	1.73" (43.9 mm)
Weight	13.6 lbs (6.18 kg)
Logistics data
Harmonized System (HS) code	85176990
