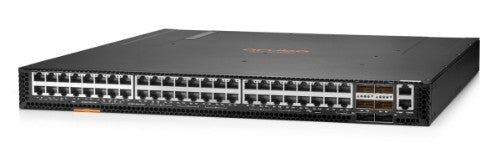

HPE Aruba Networking 8320 48p 1G/10GBASE‑T 6p 40G QSFP+ X472 5 Fans 2 PS, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U
HPE
HPE Aruba Networking 8320 48p 1G/10GBASE‑T 6p 40G QSFP+ X472 5 Fans 2 PS Managed L3 10G Ethernet (100/1000/10000) 1U Black
Part number:
JL581A#ABA
Sale price
$35,895.05
Regular price
$47,295.00
Save
$11,399.95
24%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
HPE Aruba Networking 8320 48p 1G/10GBASE‑T 6p 40G QSFP+ X472 5 Fans 2 PS. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 98304 entries, Switching capacity: 2500 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10GBASE-T |
| QSFP+ module slots quantity | 6 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Network | |
| MLD entries | 4094 |
| IPv6 multicast entries | 4094 |
| IPv4 multicast entries | 4094 |
| Copper ethernet cabling technology | 10GBASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 16 MB |
| Stackable | Yes |
| Processor frequency | 2000 MHz |
| Noise level | 61.1 dB |
| Mean time between failures (MTBF) | 275339 h |
| Internal memory | 16384 MB |
| Flash memory | 8192 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 2000 MHz |
| Noise level | 61.1 dB |
| Mean time between failures (MTBF) | 275339 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Data transmission | |
| Packet buffer memory | 16 MB |
| MAC address table | 98304 entries |
| Switching capacity | 2500 Gbit/s |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 40 Gbit/s |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| MLD entries | 4094 |
| IPv6 multicast entries | 4094 |
| IPv4 multicast entries | 4094 |
| Protocols | |
| Routing protocols | BGP, OSPF |
| Memory | |
| Packet buffer memory | 16 MB |
| Internal memory | 16384 MB |
| Flash memory | 8192 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |

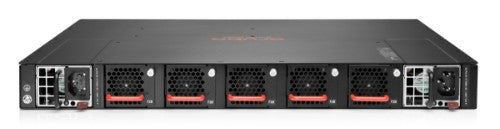

| Airflow direction | Front-to-back airflow |
| Number of fans | 5 fan(s) |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 348 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 18.6" (473 mm) |
| Depth | 17.4" (443 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 20.9 lbs (9.5 kg) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
