2x 10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC), MMF 850nm, 550m, PoE+
AddOn Networks

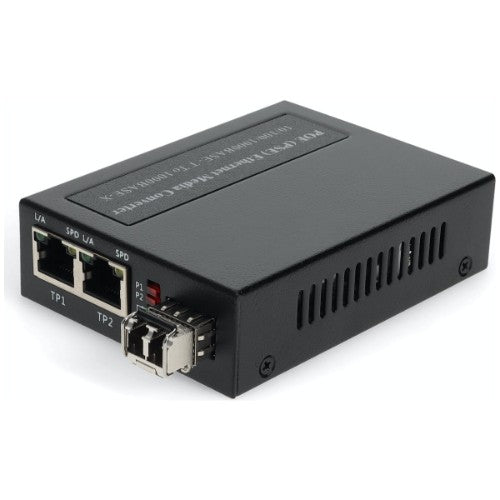

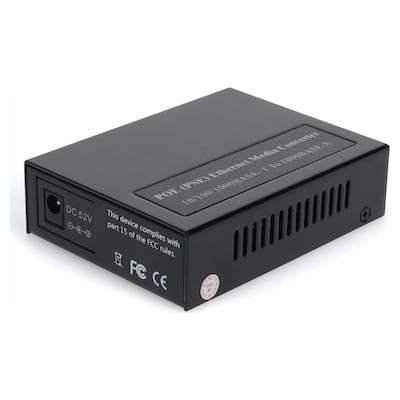

AddOn Networks ADD-GMC-SX-2RJLC-POE+ network media converter 1000 Mbit/s 850 nm Black
Part number:
ADD-GMC-SX-2RJLC-POE+
Sale price
$126.53
Regular price
$215.50
Save
$88.97
41%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
This is a three port media converter that converts and supports two 10/100/1000Base-TX(RJ-45) to one 1000Base-SX via an LC port connector. This media converter provides a cost effective conversion from two 10/100/1000Base-TX(RJ-45) to one 1000Base-SX, while extending the network reach beyond the 100m reach limitation of copper. The two 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transfered over cable with 48V(typical) power supply, providing power to IEEE802.3at powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). The two UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 30 watts (DC 52V/.6A) power into CAT5e twisted-pair cable. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.Specifications
| Network | |
|---|---|
| Fiber optic connector | LC |
| Copper ethernet cabling technology | 1000BASE-SX |
| Fiber ethernet cabling technology | 1000BASE-SX |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-TX |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Converter output interface | 1000Base-SX |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Housing material | Iron |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Internal | No |
| Ports & interfaces | |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
| Indication | |
| LED indicators | Yes |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Design | |
| Housing material | Iron |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Input voltage | 120 V |
| External power adapter | Yes |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 2.8" (71 mm) |
| Depth | 3.7" (94 mm) |
| Weight | 7.05 oz (200 g) |
| Height | 1.02" (26 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
