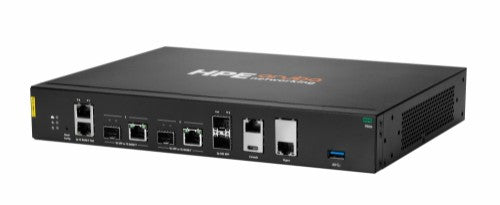

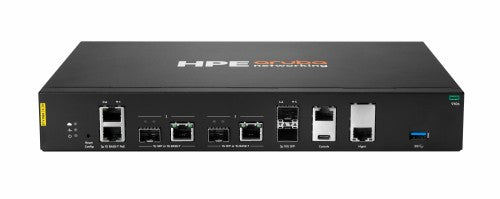

HPE Aruba Networking 9106 Hybrid, Black, 1U, Desktop/Rack mounting, Power, Status, 236076 h, 1000 Mbit/s

Description

HPE Aruba Networking 9106 Hybrid. Product color: Black, Rack capacity: 1U, Mounting type: Desktop/Rack mounting. Mean time between failures (MTBF): 236076 h. Ethernet LAN data rates: 1000 Mbit/s, Firewall throughput: 10000 Mbit/s, 3DES/AES throughput: 10 Gbit/s. Console port: RJ-45. Power consumption (max): 150 W, Input voltage: 100 - 240 V, Input frequency: 50 - 60 Hz

Specifications

Design
LED indicators	Power, Status
Mounting type	Desktop/Rack mounting
Rack capacity	1U
Product colour	Black
Features
Mean time between failures (MTBF)	236076 h
Performance
Control display unit	No
Mounting type	Desktop/Rack mounting
Rack capacity	1U
Product colour	Black
Protocols
DHCP client	Yes
Network
Ethernet LAN data rates	1000 Mbit/s
Firewall throughput	10000 Mbit/s
3DES/AES throughput	10 Gbit/s
Security
MAC address filtering	Yes
Access Control List (ACL)	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Console port	RJ-45
SFP+ ports quantity	2
Combo SFP ports quantity	2
Power
Output voltage	54 V
Power over Ethernet (PoE)	Yes
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Heat dissipation	290 BTU/h
Power consumption (max)	150 W
Weight & dimensions
Weight	5.09 lbs (2.31 kg)
Width	11.6" (294.8 mm)
Height	1.72" (43.7 mm)
Depth	7.92" (201.1 mm)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Technical details
Mean time between failures (MTBF)	236076 h
Indication
LED indicators	Power, Status
Display
Control display unit	No
