12U 600m Depth Wallmount Server Cabinet
Monoprice
Monoprice 10332 rack cabinet 12U Wall mounted rack Black
Part number:
10332
$381.48
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 12U form factor
- 130 lb weight capacity
- Sturdy and rugged welded frame structure

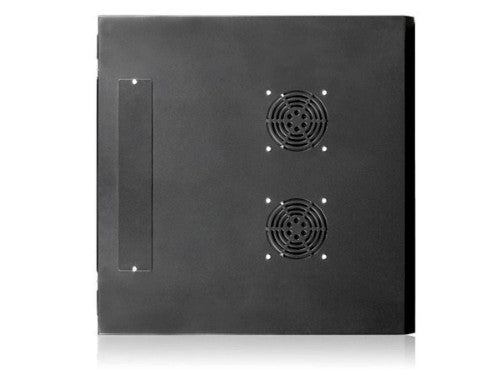

- Excellent air ventilation design with up to two optional cooling fans
- Top, bottom, and rear cabling tunnels
- Wall mountable, desk mountable, or floor standing using optional casters
- Meets IP20 protection grade standard

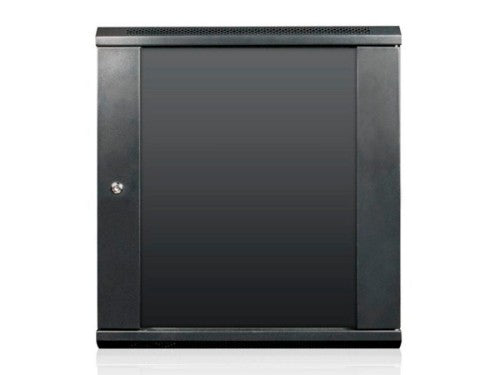

- Reinforced, heat-treated glass front door with security lock
- Removable side panels with security locks
- 2.0mm SPCC high-quality cold roll steel post
- 22" maximum internal depth
- 600mm x 635mm x 600mm (WHD) external dimensions

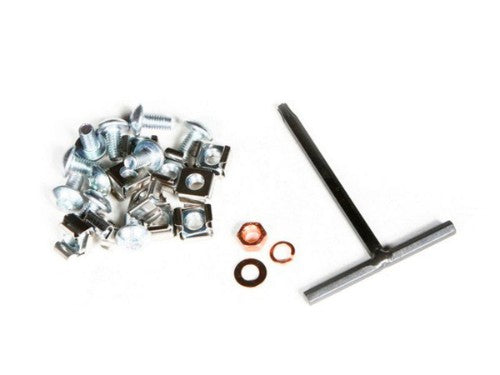

- Includes mounting hardware
- RoHS compliant
Description
This wall, desktop, or floor mounted server cabinet features easy to access lockable side panels and a lockable, heat-treated glass door. It provides 12U of mounting capacity and 600mm mounting depth. Top, bottom, and rear cable tunnels allow for easy cable routing. The partially vented frame structure combines with the two optional top-mounted 120mm cooling fans to provide excellent ventilation.Specifications
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Features | |
| Key lock | Yes |
| Rack capacity | 12U |
| International Protection (IP) code | IP20 |
| Removable side panels | Yes |
| Front door construction | Glass |
| Cable management | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Type | Wall mounted rack |
| Maximum weight capacity | 130.1 lbs (59 kg) |
| Product colour | Black |
| Weight & dimensions | |
| Inner depth | 22" (55.9 cm) |
| Width | 23.6" (600 mm) |
| Depth | 23.6" (600 mm) |
| Height | 25" (635 mm) |
| Maximum weight capacity | 130.1 lbs (59 kg) |
| Packaging data | |
| Mounting kit | Yes |
| Technical details | |
| Type | Wall mounted rack |
| Compliance certificates | RoHS |
| Rack capacity | 12U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Black |
