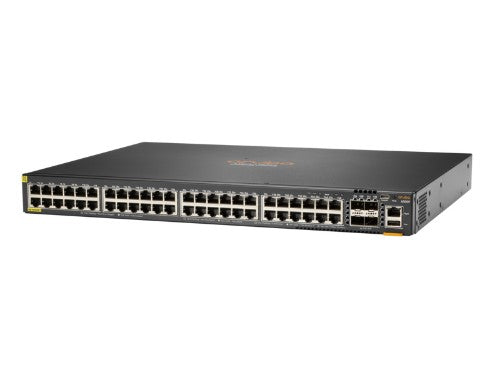

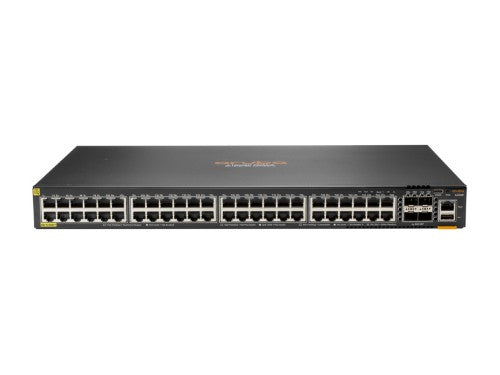

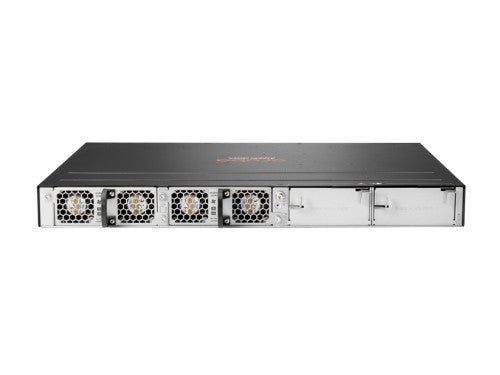

HPE Aruba Networking Aruba 6300F 48-port 1GbE Class 4 PoE & 4-port SFP56, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
HPE
HPE Aruba Networking Aruba 6300F 48-port 1GbE Class 4 PoE & 4-port SFP56 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Gray
Part number:
JL665A#B2E
$10,484.20
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
HPE Aruba Networking Aruba 6300F 48-port 1GbE Class 4 PoE & 4-port SFP56. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP modules quantity: 4. MAC address table: 29490 entries, Switching capacity: 496 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1v, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Number of VLANs | 4094 |
| Throughput | 369 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| MAC address table | 29490 entries |
| Switching capacity | 496 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 8 MB |
| Stackable | Yes |
| Physical stacking (units) | 10 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8192 MB |
| Built-in processor | Yes |
| Technical details | |
| Physical stacking (units) | 10 |
| Form factor | 1U |
| Product colour | Gray |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | BGP, BGP4, IP, OSPF |
| Memory | |
| Packet buffer memory | 8 MB |
| Memory type | DDR4-SDRAM |
| Internal memory | 8192 MB |
| Design | |
| Form factor | 1U |
| Product colour | Gray |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 86 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
| Width | 17.4" (442 mm) |
| Depth | 12.9" (327 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 11.2 lbs (5.1 kg) |
