Hardened Gigabit PoE+ 8-Port Switch
- Provides eight PoE+ PSE 10/100/1000-Mbps RJ-45 ports.
- Power over Ethernet 802.3at compliant. Provides up to 30 watts per port with a total power budget of 60 Watts at 12-24 VDC and 120 Watts at 24-57 VDC.
- Use in industrial networks, such as oil/gas fields, utilities, security/surveillance, SCADA/M2M, and building automation.
- Eliminates worries about powering distant equipment where no power is available.
- Rated for extreme temperatures of -40 to +75° C. IP30 enclosure for use in harsh INDOOR OR OUTDOOR environments.
- Dual 12-57-VDC DC power inputs for redundant power. Generates 50 VDC PSE power output per port.
Black Box

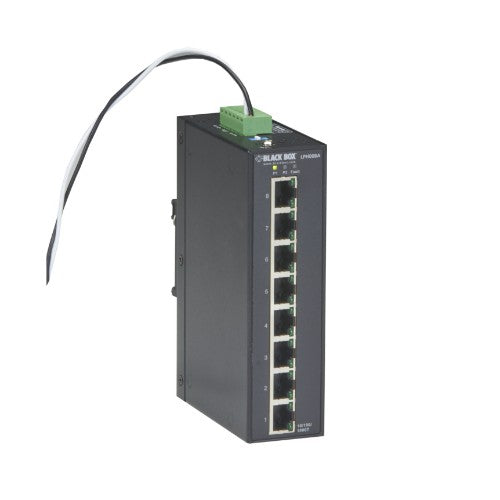

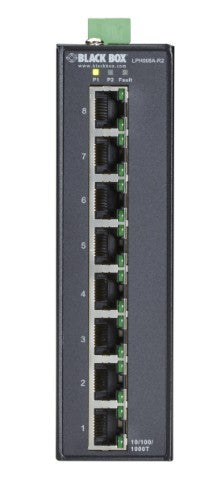

Black Box LPH008A-R2 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Part number:
LPH008A-R2
Sale price
$417.42
Regular price
$536.59
Save
$119.17
22%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Provides eight PoE+ PSE 10/100/1000-Mbps RJ-45 ports
- PoE+ 802.3at compliant, provides up to 30 watts per port with a total power budget of 60 watts at 12-24VDC and 120 watts at 24-57 VDC.
- Power remote PoE+ PDs such as security cameras, wireless access points, traffic control equipment, monitoring devices, and more.
- Use in industrial applications, such as oil/gas fields, utilities, security/surveillance, SCADA/M2M, and building automation.
- Eliminates worries about powering distant equipment where no power is available.
- Rated for extreme temperatures of -40 to +75° C.
- IP30 enclosure for use in harsh INDOOR OR OUTDOOR environments.
- Dual 12-57-VDC DC power inputs for redundant power.
- Generates 50 VDC PSE power output per port.
- Supports jumbo frames up to 9K bytes.
Description
Two different power inputs at the terminal block prevent the power interruptions. When the primary DC power input fails, the backup power input takes over to guarantee non-stop operation.- Provides eight PoE+ PSE 10/100/1000-Mbps RJ-45 ports.
- Power over Ethernet 802.3at compliant. Provides up to 30 watts per port with a total power budget of 60 Watts at 12-24 VDC and 120 Watts at 24-57 VDC.
- Use in industrial networks, such as oil/gas fields, utilities, security/surveillance, SCADA/M2M, and building automation.
- Eliminates worries about powering distant equipment where no power is available.
- Rated for extreme temperatures of -40 to +75° C. IP30 enclosure for use in harsh INDOOR OR OUTDOOR environments.
- Dual 12-57-VDC DC power inputs for redundant power. Generates 50 VDC PSE power output per port.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Terminal block port | Yes |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| LED indicators | Activity, Fault, Link, PoE, Power |
| Power | |
| Power protection features | Overload |
| Power consumption (typical) | 6 W |
| DC input voltage | 12 - 57 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) voltage range | 24 - 57 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Power protection features | Overload |
| Other features | |
| Terminal block port | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 1.61" (41 mm) |
| Depth | 3.74" (95 mm) |
| Height | 5.67" (144 mm) |
| Packaging content | |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Screws included | Yes |
| Dust cap included | Yes |
| DIN rail included | Yes |
| Packaging data | |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Screws included | Yes |
| Dust cap included | Yes |
| DIN rail included | Yes |
| Package weight | 15.9 oz (450 g) |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Indication | |
| LED indicators | Activity, Fault, Link, PoE, Power |
