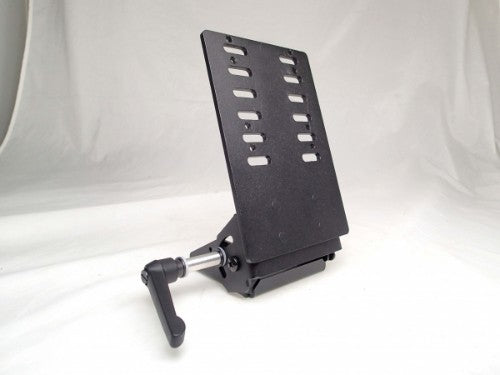

Tilt Swivel Motion Device
- Used to mount Havis, inc. tablet mounts or other products with VESA 75 hole pattern
- Some products can be mounted on both sides for additional positioning options

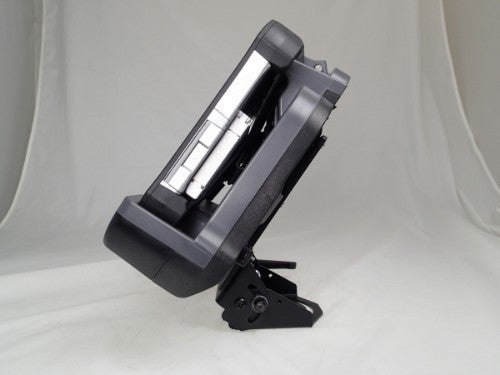

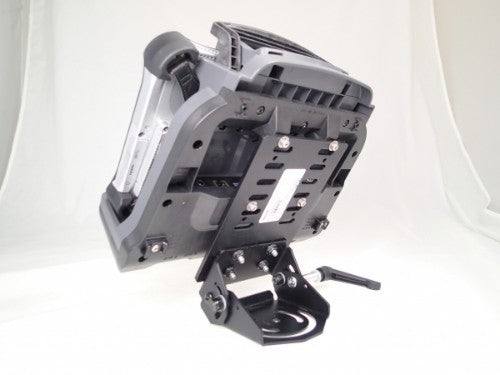

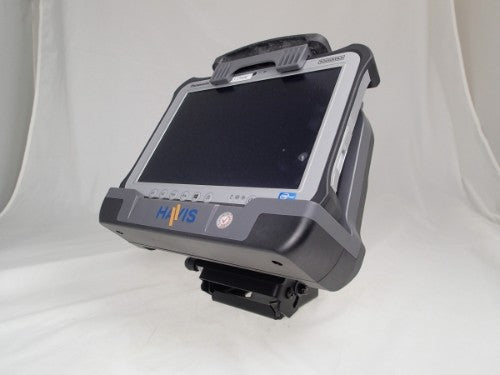

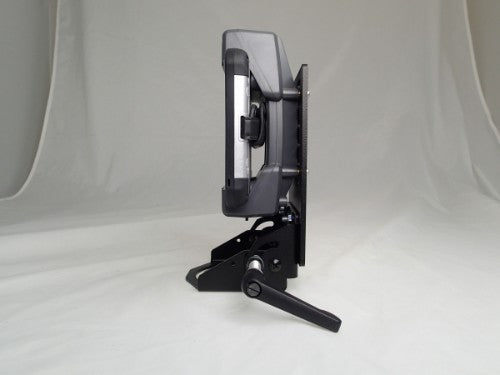

- DS-PAN-800 Series and UT-201 fit on both sides (see photos)
- DS-PAN-700 Series only fit on one side (see photos)
- DS-PAN-600 Series not recommended on this device
- Mounts to C-HDM-300 Series, C-SM-SA, C-3083-1 and other products with motion device hole pattern
- Mounts to C-FLM-101 (see PKG-FLM-103)
- Can be used on C-HDM-305 with C-KBM-100 Series
- 8.50" overall height in open position (at 90°)
- 115° maximum vertical tilt movement
- 90° and 180° horizontal rotation ( limited 180° applications)
- Assembly includes tilt swivel device with C-MM-218
- Includes short locking handle
- Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
Havis
Havis C-MD-207 mounting kit Black Steel
Part number:
C-MD-207
Sale price
$132.81
Regular price
$166.00
Save
$33.19
20%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
- Tilt swivel motion device for compact tablet applications- Used to mount Havis, inc. tablet mounts or other products with VESA 75 hole pattern
- Some products can be mounted on both sides for additional positioning options
- DS-PAN-800 Series and UT-201 fit on both sides (see photos)
- DS-PAN-700 Series only fit on one side (see photos)
- DS-PAN-600 Series not recommended on this device
- Mounts to C-HDM-300 Series, C-SM-SA, C-3083-1 and other products with motion device hole pattern
- Mounts to C-FLM-101 (see PKG-FLM-103)
- Can be used on C-HDM-305 with C-KBM-100 Series
- 8.50" overall height in open position (at 90°)
- 115° maximum vertical tilt movement
- 90° and 180° horizontal rotation ( limited 180° applications)
- Assembly includes tilt swivel device with C-MM-218
- Includes short locking handle
- Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
Specifications
| Technical details | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Material | Steel |
| Product colour | Black |
| Compatibility | DS-PAN-800, DS-PAN-700, DS-PAN-600, C-HDM-300, C-SM-SA, C-3083-1, C-FLM-101, C-HDM-305 |
| Ergonomics | |
| Tilt angle range | 0 - 115° |
| Angle of rotation | 180° |
| Other features | |
| Panel mounting interface | 75 x 75 mm |
| Weight & dimensions | |
| Height | 8.5" (216 mm) |
| Packaging data | |
| Package weight | 3.51 lbs (1.59 kg) |
