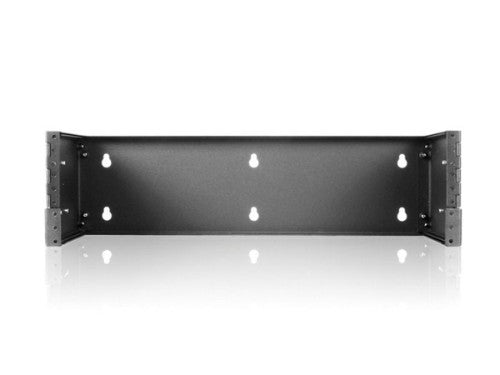

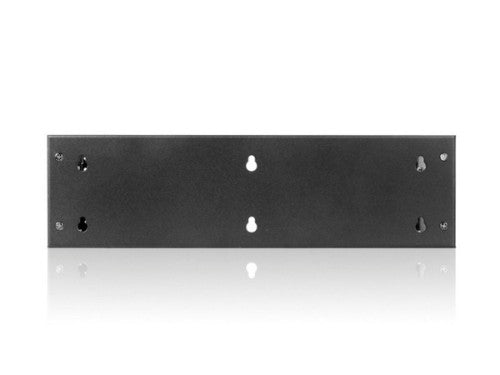

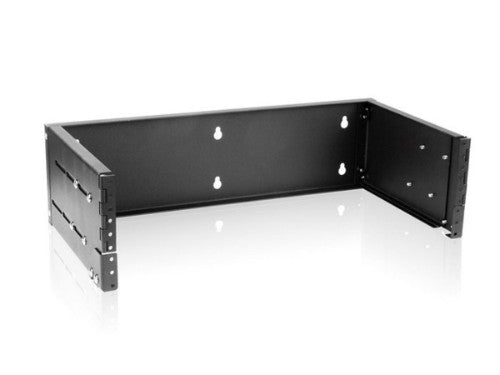

3U Hinged Wallmount Rack, black
This simple rack is designed to sit on a desktop or mount to a wall. The open design allows for easy ambient cooling, while the swing-out hinged rack mount points allow for easy accessibilit without completely removing the panel. It is constructed of 2.0mm cold rolled SPCC steel and can support a total of 11 lbs (5.0 Kg).
The rack provides 3U of space and the internal dimensions are adjustable from 9.9" to 13.5" (25.1 to 34.3 cm). It is RoHS compliant.
- 3U form factor
- 11 lb (5.0 Kg) weight capacity
- Constructed of 2.0mm SPCC cold rolled steel

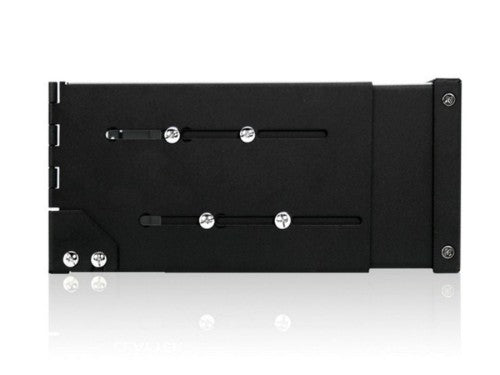

- Swing-out hinged mounting points for easy access
- Can be mounted to a wall or set on a desk or other surface
- Adjustable internal depth from 9.9" to 13.5" (25.1 to 34.3 cm)
- Dimensions (WxHxD): 19.50" x 5.25" x 9.90" (495 x 133 x 251 mm)
- Maximum airflow through open top and bottom
- RoHS compliant
Monoprice
Monoprice 10657 rack cabinet 3U Wall mounted rack Black
Part number:
10657
$83.62
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
There is no need to go for the expense and complexity of a full rack mount chassis when all you need is to mount a couple of panels. Save money, time, and hassles by using this 3U Hinged Wallmount Rack from Monoprice!This simple rack is designed to sit on a desktop or mount to a wall. The open design allows for easy ambient cooling, while the swing-out hinged rack mount points allow for easy accessibilit without completely removing the panel. It is constructed of 2.0mm cold rolled SPCC steel and can support a total of 11 lbs (5.0 Kg).
The rack provides 3U of space and the internal dimensions are adjustable from 9.9" to 13.5" (25.1 to 34.3 cm). It is RoHS compliant.
- 3U form factor
- 11 lb (5.0 Kg) weight capacity
- Constructed of 2.0mm SPCC cold rolled steel
- Swing-out hinged mounting points for easy access
- Can be mounted to a wall or set on a desk or other surface
- Adjustable internal depth from 9.9" to 13.5" (25.1 to 34.3 cm)
- Dimensions (WxHxD): 19.50" x 5.25" x 9.90" (495 x 133 x 251 mm)
- Maximum airflow through open top and bottom
- RoHS compliant
Specifications
| Features | |
|---|---|
| Rack capacity | 3U |
| Type | Wall mounted rack |
| Maximum weight capacity | 11 lbs (5 kg) |
| Material | SPCC |
| Product colour | Black |
| Weight & dimensions | |
| Width | 19.5" (495 mm) |
| Depth | 9.88" (251 mm) |
| Height | 5.24" (133 mm) |
| Maximum weight capacity | 11 lbs (5 kg) |
| Technical details | |
| Type | Wall mounted rack |
| Rack capacity | 3U |
| Colour | |
| Product colour | Black |
| Material | |
| Material | SPCC |
