DKM FX HD Video and Peripheral Matrix Switch DisplayPort Transmitter Interface Card, 1x LC fiber interconnect, 1x DisplayPort F, USB Type B F, 1x mini USB
Extend DisplayPort and USB signals over the DKM HD Video and Peripheral Matrix Switching system.
ACX2MT-DPHS-SM Features
- High-speed fiber transmitter card for DKM FX Extender Modular Housings.
- Supports DisplayPort 1.1 and USB HID.
- Supports resolutions up to 4K, including 4096 x 2160 and 3840 x 2160.
- Compatible with other endpoints, such as HDMI and DVI cards.
For example, a DisplayPort transmitter can be connected to an HDMI receiver; the signal will translate to the correct signal type.
- Supports integrated DisplayPort digital audio.
- High-speed fiber module card.
This is the high-speed fiber interface card, which uses 2.5Gbps. This reduces latency on the USB HID stack.
The DKM FX HD Video and Peripheral Matrix Switching System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.
The DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.
Black Box

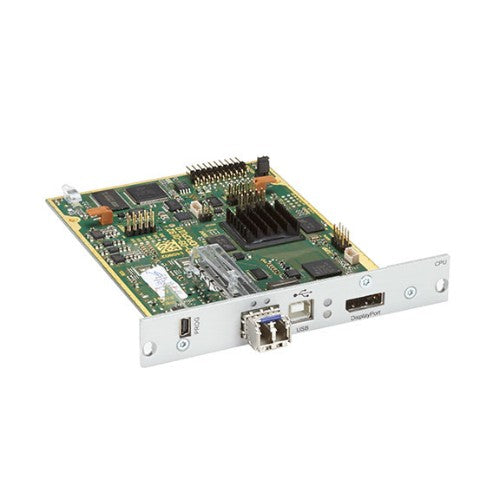

Black Box ACX2MT-DPHS-SM interface cards/adapter Internal USB 2.0
Part number:
ACX2MT-DPHS-SM
Sale price
$2,816.61
Regular price
$3,137.94
Save
$321.33
10%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
DKM FX HD Video and Peripheral Matrix Switch DisplayPort Transmitter Interface Card – High-Speed FiberExtend DisplayPort and USB signals over the DKM HD Video and Peripheral Matrix Switching system.
ACX2MT-DPHS-SM Features
- High-speed fiber transmitter card for DKM FX Extender Modular Housings.
- Supports DisplayPort 1.1 and USB HID.
- Supports resolutions up to 4K, including 4096 x 2160 and 3840 x 2160.
- Compatible with other endpoints, such as HDMI and DVI cards.
For example, a DisplayPort transmitter can be connected to an HDMI receiver; the signal will translate to the correct signal type.
- Supports integrated DisplayPort digital audio.
- High-speed fiber module card.
This is the high-speed fiber interface card, which uses 2.5Gbps. This reduces latency on the USB HID stack.
The DKM FX HD Video and Peripheral Matrix Switching System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.
The DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | USB 2.0 |
| USB 2.0 ports quantity | 1 |
| Technical details | |
| Maximum operating distance | 393700.8" (10000 m) |
| Connector type | LC fiber interconnect, DisplayPort F, USB Type B F, mini USB |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Design | |
| Internal | Yes |
| Certification | CE, FCC, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -25 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 5" (127 mm) |
| Depth | 5.75" (146 mm) |
| Height | 0.709" (18 mm) |
| Weight | 10.6 oz (300 g) |
| Other features | |
| Connector type | LC fiber interconnect, DisplayPort F, USB Type B F, mini USB |
| Maximum operating distance | 393700.8" (10000 m) |
| Maximum analog resolution | 4096 x 2160 pixels |
