Gigabit Media/Mode Converter copper to SFP
- Functions as a switch, a media converter, and a mode converter.
- Features two 10-/100-/1000-Mbps copper Ethernet ports plus two SFP ports.
Quick Facts
- Functions as a switch, a media converter, and a mode converter.
- Features two 10-/100-/1000-Mbps copper Ethernet ports plus two SFP ports.
Further Details
- If a link goes down, 1+1 uplink protection provides failover in under 50 milliseconds.
- Powered through AC, DC, or USB.
- Extended temperature range of -4 to +158° F (-20 to +70° C).
- Supports 155-Mbps and 1250-Mbps SFPs.
- Jumbo frame support up to 10,240 bytes.
- DIN rail mount.
The Media Converter Network Interface Device, (2) 10-/100-/1000-Mbps Copper to (2) SFP is a carrier-class DIN rail switch that has the versatility to handle many applications at the edge of your network. Two autosensing 10-/100/1000-Mbps ports plus two SFP slots in an intelligent switch enable you to use the Media Converter Network Interface Device for managed fiber termination, fiber drop and insert, fiber repeater, fiber mode conversion, and dual independent copper-to-fiber media conversion with automatic failover.
The SFP slots auto detect 100- or 1000-Mbps SFPs and comply with SFP Multi-Source Agreements standards (MSA) for complete compatibility with all standard SFPs.
It’s designed for industrial use, featuring an extended temperature range of -4 to +158° F (-20 to +70° C) plus power options for AC, DC, and USB power. DC power options include -48 VDC for telco applications. You can combine power options for AC/DC redundancy.
The switch is fully manageable and supports active and passive IEEE 802.3ah OAM on all ports, as well as DHCP and SNMP. The switch can also be managed through the RS-232 console port via command line interface (CLI).
Black Box

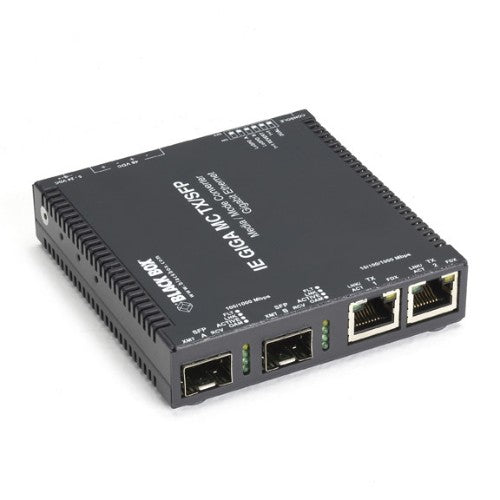

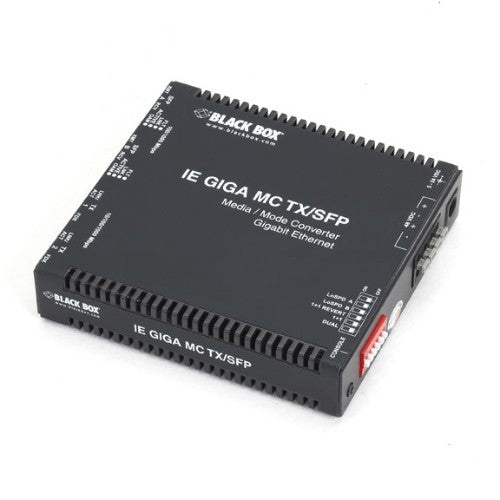

Black Box LGC340A network media converter 1000 Mbit/s
Part number:
LGC340A
Sale price
$687.69
Regular price
$884.01
Save
$196.32
22%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Functions as a switch, a media converter, and a mode converter.
- Features two 10/100/1000Mbps copper Ethernet ports plus two SFP ports.
- If a link goes down, 1+1 uplink protection provides failover in under 50 milliseconds.
- Powered through AC, DC, or USB.
- Extended temperature range of -20 to +70° C.
- Supports 100Mbps and 1Gbps optical SFPs.
- Jumbo frame support up to 10.240 bytes.
- DIN rail mount.
Description
Product Highlights- Functions as a switch, a media converter, and a mode converter.
- Features two 10-/100-/1000-Mbps copper Ethernet ports plus two SFP ports.
Quick Facts
- Functions as a switch, a media converter, and a mode converter.
- Features two 10-/100-/1000-Mbps copper Ethernet ports plus two SFP ports.
Further Details
- If a link goes down, 1+1 uplink protection provides failover in under 50 milliseconds.
- Powered through AC, DC, or USB.
- Extended temperature range of -4 to +158° F (-20 to +70° C).
- Supports 155-Mbps and 1250-Mbps SFPs.
- Jumbo frame support up to 10,240 bytes.
- DIN rail mount.
The Media Converter Network Interface Device, (2) 10-/100-/1000-Mbps Copper to (2) SFP is a carrier-class DIN rail switch that has the versatility to handle many applications at the edge of your network. Two autosensing 10-/100/1000-Mbps ports plus two SFP slots in an intelligent switch enable you to use the Media Converter Network Interface Device for managed fiber termination, fiber drop and insert, fiber repeater, fiber mode conversion, and dual independent copper-to-fiber media conversion with automatic failover.
The SFP slots auto detect 100- or 1000-Mbps SFPs and comply with SFP Multi-Source Agreements standards (MSA) for complete compatibility with all standard SFPs.
It’s designed for industrial use, featuring an extended temperature range of -4 to +158° F (-20 to +70° C) plus power options for AC, DC, and USB power. DC power options include -48 VDC for telco applications. You can combine power options for AC/DC redundancy.
The switch is fully manageable and supports active and passive IEEE 802.3ah OAM on all ports, as well as DHCP and SNMP. The switch can also be managed through the RS-232 console port via command line interface (CLI).
Specifications
| Network | |
|---|---|
| Converter input interface | 1000Base-T, 100Base-TX, 10Base-T |
| Networking standards | IEEE 802.3ah |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
| Power | |
| Input voltage | 120 V |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 0.906" (23 mm) |
| Depth | 3.94" (100 mm) |
| Weight | 7.05 oz (200 g) |
| Height | 3.54" (90 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| User guide | Yes |
| Technical details | |
| Internal | No |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Certification | TAA CE |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | TAA CE |
