AMD RX-421BD (4x 2.1GHz) 64-bit, Radeon R7, 4GB DDR4, 512MB DOM, 2.5"/3.5", SATA III, 4x RJ-45, 4x USB 3.0, 2x PCIe 3.0 x4, 2x HDMI 1.4b
QNAP

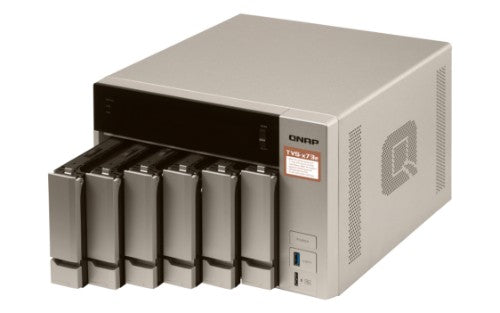

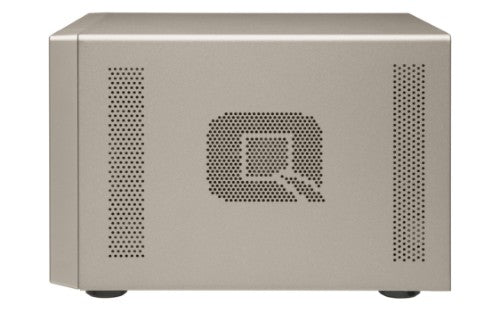

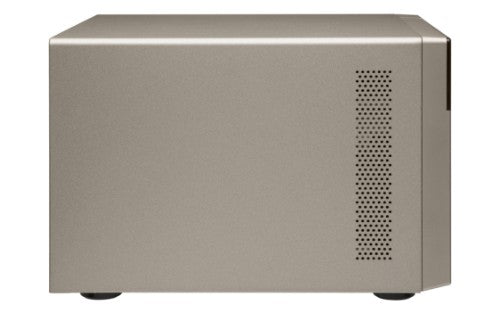

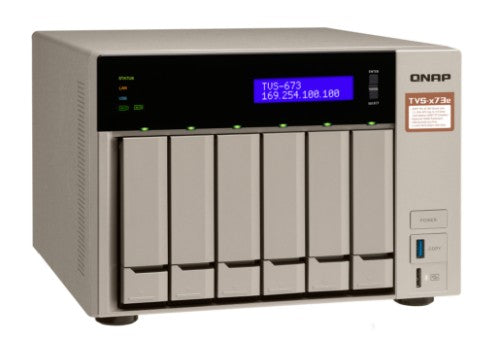

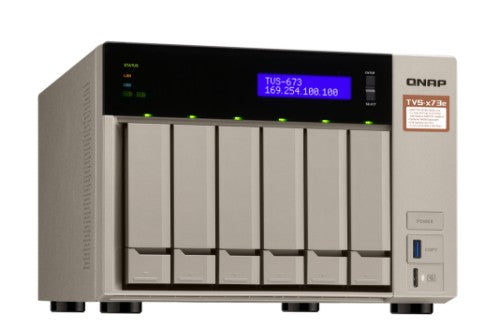

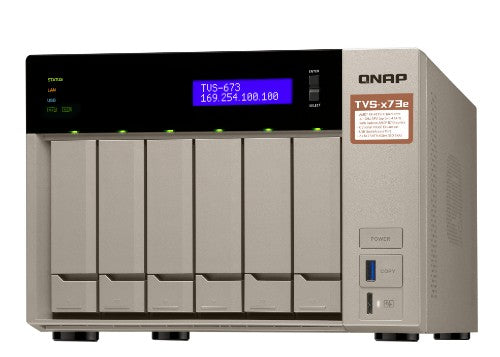

QNAP TVS-673e NAS Tower AMD Embedded R-Series SoC RX-421BD 4 GB DDR4 0 TB QNAP Turbo System Gold
Part number:
TVS-673E-4G-US
$1,146.43
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Integrated Radeon™ R7 GPU for 4K video playback
- Two PCIe slots support 10GbE adapters, QM2 cards, USB 3.1 10Gbps cards, or wireless network cards
- Use the NAS as a PC by attaching a keyboard, mouse, and HDMI display
- Qtier™ auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency
- Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery
- RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance
Description
The TVS-673e is powered by a high-end AMD R-Series APU that incorporates an exceptional CPU with AMD Radeon™ R7 Graphics performance, delivering a high-performance and energy-efficient NAS solution. Built with a state-of-the-art metal design and topped off with a stylish gold finish, the highly-capable TVS-673e provides PCIe expandability, the unique USB QuickAccess port, HDMI 4K@ 30Hz output, and 4K H.264 video decoding and encoding acceleration for an optimum audiovisual experience.Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 6 |
| Storage drive capacity | 0 GB |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of M.2 (M & B) slots | 2 |
| Processor | |
| Processor frequency | 2.1 GHz |
| Processor family | AMD Embedded R-Series SoC |
| Processor model | RX-421BD |
| Processor cores | 4 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 4 GB |
| Maximum RAM supported | 64 GB |
| Memory slots | 4 |
| Flash memory | 512 MB |
| Memory form factor | SO-DIMM |
| Network | |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI version | 1.4b |
| PCI Express x4 (Gen 3.x) slots | 2 |
| 3.5 mm (1/8-inch) out | Yes |
| Microphone in | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 2 |
| Fiber ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| Hard drive | |
| RAID support | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Design | |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Fan diameter 2 | 2.36" (6 cm) |
| Cooling type | Active |
| Fan diameter | 3.54" (9 cm) |
| Built-in display | Yes |
| Display type | LCD |
| Cable lock slot type | Kensington |
| Product colour | Gold |
| Number of fans | 3 fan(s) |
| Chassis type | Tower |
| Cable lock slot | Yes |
| Technical details | |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Built-in display | Yes |
| Display type | LCD |
| Product colour | Gold |
| Multilingual support | Yes |
| Chassis type | Tower |
| Buzzer | Yes |
| Number of fans | 3 fan(s) |
| Performance | |
| Browser supported | Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox |
| Backup button | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| On/off switch | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Security algorithms | 256-bit AES, HTTPS, SNMP, SSH, SSL/TLS |
| Operating system version | 4.3 |
| Operating system installed | QNAP Turbo System |
| Multilingual support | Yes |
| Buzzer | Yes |
| Access Control List (ACL) | Yes |
| Cooling | |
| Cooling type | Active |
| Fan diameter | 3.54" (9 cm) |
| Number of fans | 3 fan(s) |
| Security | |
| Cable lock slot type | Kensington |
| Security algorithms | 256-bit AES, HTTPS, SNMP, SSH, SSL/TLS |
| Cable lock slot | Yes |
| Access Control List (ACL) | Yes |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Operating system version | 4.3 |
| Operating system installed | QNAP Turbo System |
| Management features | |
| On/off switch | Yes |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 10.4" (264.3 mm) |
| Depth | 11" (279.6 mm) |
| Height | 7.41" (188.2 mm) |
| Weight | 12.4 lbs (5.63 kg) |
| Packaging content | |
| Number of screws | 14 |
| Quick installation guide | Yes |
| Cables included | AC, LAN (RJ-45) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Cables included | AC, LAN (RJ-45) |
