Smart-UPS On-Line, 8000 Watts / 10 kVA,Input 208V / Output 120V, 208V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 12U
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
APC

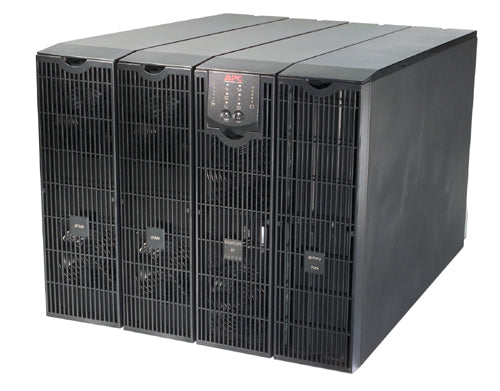

APC Smart-UPS RT 10,000VA 208V w/ (2) 208V to 120V Step-Down Transformer uninterruptible power supply (UPS) 10 kVA 8000 W
Part number:
SURT10000XLT-2TF3
Sale price
$6,760.54
Regular price
$10,440.00
Save
$3,679.46
35%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Automatic internal bypassSupplies utility power to the connected loads in the event of a UPS overload condition or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
| Power | |
|---|---|
| Output power | 8000 W |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 10 kVA |
| Input frequency | 50/60 Hz |
| Performance | |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output power | 8000 W |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 10 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 2.2 h |
| Typical backup time at half load | 14.8 min |
| Typical backup time at full load | 4.9 min |
| Design | |
| Product colour | Black |
| Certification | CSA,FCC Part 15 Class A,UL 1778 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Certificates | |
| Certification | CSA,FCC Part 15 Class A,UL 1778 |
| Weight & dimensions | |
| Weight | 495.2 lbs (224.6 kg) |
| Other features | |
| Interface | DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot |
| Output connections | 16x NEMA 5-20R 2x NEMA L14-30R 6x NEMA L6-20R 3x NEMA L6-30R |
| Input connection type | 3-wire |
| Dimensions (WxDxH) | 20.6 x 29 x 17" (522 x 736 x 432 mm) |
| Output voltage note | Configurable for 208 or 240 nominal output voltage |
| Nominal input voltage | 208 V |
