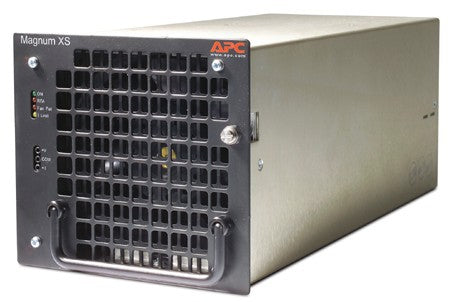

Magnum XS Rectifier Power supply ( rack-mountable ) AC 208/230 V

Description

DCPM28HN54SH0 Features
- Rack Mount
1U rackmountable. Hardware included.
- Paralleling Capability
Increase capacity, run time or redundancy by adding further units in parallel
- Hot-swap rectifiers
Cost of ownership is reduced by the use of light weight, modular, true hot-swappable rectifiers which facilitate easy maintenance
- Wide temperature range
Equipment capable of operating in an extended temperature environment suits a wider range of applications and can reduce or remove the need for HVAC.
- Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
- Serial Connectivity
Provides management of the UPS via a serial port.
- Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
- Hot Expansion Capability
- Modular Rectifiers
- N+1 Redundancy

Magnum XS Rectifier Features & Benefits

Availability
- N+1 Redundancy
System integrity is maintained even in the event of a rectifier failure ensuring maximum uptime and system availability
- Paralleling Capability
Increase capacity, run time or redundancy by adding further units in parallel
- Wide temperature range
Equipment capable of operating in an extended temperature environment suits a wider range of applications and can reduce or remove the need for HVAC.

Adaptability
- Hot Expansion Capability
Protects your investment in DC power by enabling expansion or configuration simply by adding additional rectifiers
- Paralleling Capability
Increase capacity, run time or redundancy by adding further units in parallel
- Input power factor correction
Reduced utility and wiring costs. Increasingly a legislative or specification requirement.

Manageability
- Integrated Control Circuitry
Monitoring and reporting of vital rectifier functions, control of output current and voltage.

Serviceability
- Hot-swap rectifiers
Cost of ownership is reduced by the use of light weight, modular, true hot-swappable rectifiers which facilitate easy maintenance

Convenience
- Input power factor correction
Reduced utility and wiring costs. Increasingly a legislative or specification requirement.

Specifications

Power
Output power	2800 W
Maximum current	16 A
Output power capacity	50 kVA
Features
Output power	2800 W
Maximum current	16 A
Output power capacity	50 kVA
Design
Product colour	Black
Certification	CE,CSA 22.2 No. 950,EN 50081-1,EN 50082-1,EN 55022 Class B,EN 60950,EN 61000-3-2,FCC Part 15 Class A,UL 1950
Packaging data
Package dimensions (WxDxH)	9.02 x 20 x 10" (229 x 508 x 254 mm)
Package weight	14.1 lbs (6.4 kg)
Certificates
Certification	CE,CSA 22.2 No. 950,EN 50081-1,EN 50082-1,EN 55022 Class B,EN 60950,EN 61000-3-2,FCC Part 15 Class A,UL 1950
Weight & dimensions
Weight	11 lbs (5 kg)
Package weight	14.1 lbs (6.4 kg)
Other features

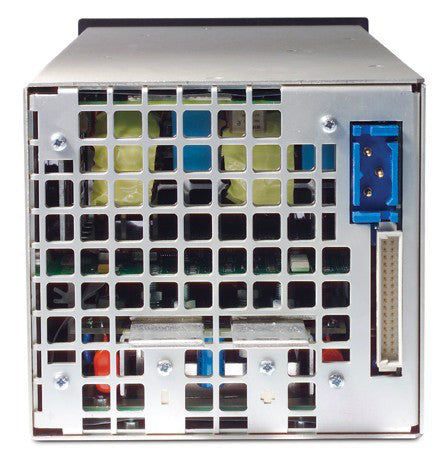

Output connections	Hot plug blind mate rear connector
Input connection type	Hot plug blind mate rear connector
Dimensions (WxDxH)	5.79 x 13 x 5.24" (147 x 330 x 133 mm)
Package dimensions (WxDxH)	9.02 x 20 x 10" (229 x 508 x 254 mm)
