Intel C612, 2xIntel Xeon E5-2620 v3, 32GB DDR4, 2000GB HDD, 4xNvidia GeForce GTX980, 2xIntel I210AT + 1xMgmt LAN, 3xRJ-45, 2xUSB 3.0, 2xUSB 2.0, 1xVGA, 2U
ASUS has made it again in HPC field. The latest ESC4000 G3 based on Intel® Xeon® processor E5-2600 v3 product families, not only offering 4 double-deck GPU support but also featuring mass storage witheight hot-swappable 3.5” SATA HDD bays, 1+1 80 PLUS Platinum 2000W/1620W redundant power supplies and 8+2 PCI-E Gen3 x16 expansion slots. It delivers high density computing power, scalable expansion capability and high power efficiency, making it an ideal choice for the applications in the field of life and medical science, engineering science, financial modeling and virtualization.
8+2 Flexible Expansion Slots for 4 GPUs and diverse high bandwidth interconnection HBA Support
The ESC4000 G3 supports up to eight PCI-E Gen3 x16 slots in 2U for high density computing and high expandability, compatible with versatile expansion cards, especially in supporting up-to-date Intel® Xeon Phi™ series, NVIDIA Tesla and GRIDTM Family, as well as AMD FirePro S Series of GPU accelerators. Initially, high-density computing is designed specifically to pack greater processing power into a rack. In ESC4000 G3, it can carry up to 4 double-deck GPUs offering extreme high density and parallel computing power. In addition, there is also one PCI-E Gen3 x 24 slot which could perform as two slots if riser is applied for Low Profile HBA & proprietary networking cards in FDR and 10G interface.
Intelligent System Fan III for improved airflow and lower running costs
With intelligent system fan III, independent smart fans provide cooling for each area of the GPU and CPU separately, and a redundant fan design for GPU area provides an extra thermal back-up solution. Intelligent system fan III offers dedicated airflow toward CPUs and GPUs as well as offering flexibility in fan allocation. Additionally, adjustable CPU fan duty in BIOS setting enables the user to configure a preferable system fan settings accommodating to different scenarios.
1+1 Platinum Redundant PSUs
The ESC4000 G3 is equipped with a 2000W/1620W 80 PLUS Platinum level redundant power supply with VR power efficiency up to 95% for energy savings, while the hot swappable design reduces power loss, improves power efficiency and saves more TCO for users.
Design for the user
ESC4000 G3 has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process, from the early hardware-awakening stages to the launch of the operating system and beyond. With the features of quick initialization guidance of BIOS, users can realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. Also, the exclusive tool-less rail kit design helps the user to deploy the servers in an easy and simple way.
Comprehensive RAID Solutions
The ESC4000 G3 supports the optional ASUS PIKE II upgrade kit. Just placing the PIKE II card, such as PIKE II 3x08 series, the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution, ESC4000 G3 can immediately expand bandwidth and offer complete RAID functions, upgrade to 12G solution and improve the performance, making it the great upgrade option.
Complete remote server management
The ASMB8-iKVM (IPMI 2.0-compliant) enables remote update BIOS, standalone KVM/Java utility, video recording and BSOD capture. Based on out-of-band management, even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control, and power control, all through a colorful and informative graphical interface. Through ASUS remote management solution, user could save time and effort on server management and trouble-shooting.
ASUS

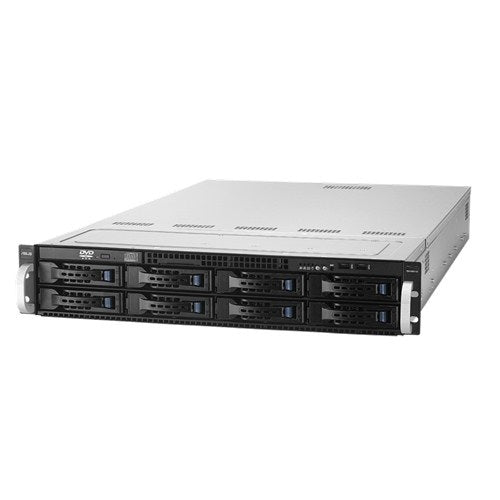

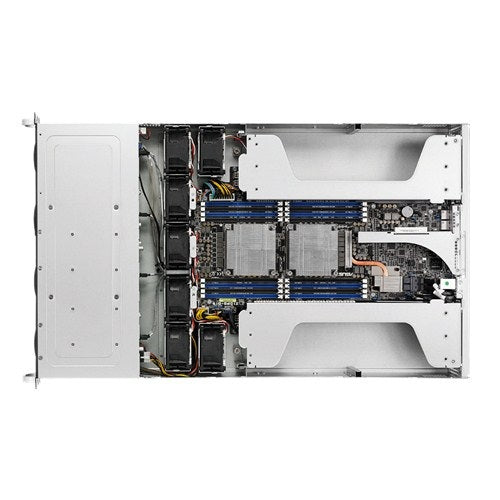

ASUS ESC4000 G3 server 2 TB Rack (2U) Intel Xeon E5 v3 E5-2620V3 2.4 GHz 32 GB DDR4-SDRAM 1620 W
Part number:
ESC4000 G3
$1,884.60
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Green500 Champion SuccessorASUS has made it again in HPC field. The latest ESC4000 G3 based on Intel® Xeon® processor E5-2600 v3 product families, not only offering 4 double-deck GPU support but also featuring mass storage witheight hot-swappable 3.5” SATA HDD bays, 1+1 80 PLUS Platinum 2000W/1620W redundant power supplies and 8+2 PCI-E Gen3 x16 expansion slots. It delivers high density computing power, scalable expansion capability and high power efficiency, making it an ideal choice for the applications in the field of life and medical science, engineering science, financial modeling and virtualization.
8+2 Flexible Expansion Slots for 4 GPUs and diverse high bandwidth interconnection HBA Support
The ESC4000 G3 supports up to eight PCI-E Gen3 x16 slots in 2U for high density computing and high expandability, compatible with versatile expansion cards, especially in supporting up-to-date Intel® Xeon Phi™ series, NVIDIA Tesla and GRIDTM Family, as well as AMD FirePro S Series of GPU accelerators. Initially, high-density computing is designed specifically to pack greater processing power into a rack. In ESC4000 G3, it can carry up to 4 double-deck GPUs offering extreme high density and parallel computing power. In addition, there is also one PCI-E Gen3 x 24 slot which could perform as two slots if riser is applied for Low Profile HBA & proprietary networking cards in FDR and 10G interface.
Intelligent System Fan III for improved airflow and lower running costs
With intelligent system fan III, independent smart fans provide cooling for each area of the GPU and CPU separately, and a redundant fan design for GPU area provides an extra thermal back-up solution. Intelligent system fan III offers dedicated airflow toward CPUs and GPUs as well as offering flexibility in fan allocation. Additionally, adjustable CPU fan duty in BIOS setting enables the user to configure a preferable system fan settings accommodating to different scenarios.
1+1 Platinum Redundant PSUs
The ESC4000 G3 is equipped with a 2000W/1620W 80 PLUS Platinum level redundant power supply with VR power efficiency up to 95% for energy savings, while the hot swappable design reduces power loss, improves power efficiency and saves more TCO for users.
Design for the user
ESC4000 G3 has a visible Q-Code/port 80 LED display LED for simple monitoring of the entire boot process, from the early hardware-awakening stages to the launch of the operating system and beyond. With the features of quick initialization guidance of BIOS, users can realize system initialization state in seconds; furthermore users are able to diagnose system instantly through POST code message in the POST stage. Also, the exclusive tool-less rail kit design helps the user to deploy the servers in an easy and simple way.
Comprehensive RAID Solutions
The ESC4000 G3 supports the optional ASUS PIKE II upgrade kit. Just placing the PIKE II card, such as PIKE II 3x08 series, the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution, ESC4000 G3 can immediately expand bandwidth and offer complete RAID functions, upgrade to 12G solution and improve the performance, making it the great upgrade option.
Complete remote server management
The ASMB8-iKVM (IPMI 2.0-compliant) enables remote update BIOS, standalone KVM/Java utility, video recording and BSOD capture. Based on out-of-band management, even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface via all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control, and power control, all through a colorful and informative graphical interface. Through ASUS remote management solution, user could save time and effort on server management and trouble-shooting.
Specifications
| Processor | |
|---|---|
| Thermal Monitoring Technologies | Yes |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 72.6 °C |
| Supported instruction sets | AVX |
| Stepping | R2 |
| Scalability | 2S |
| Processor threads | 12 |
| Processor package size | 52.5 x 45 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 22 nm |
| Processor codename | Haswell |
| Processor code | SR207 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| PCI Express configurations | x4, x8, x16 |
| Number of QPI links | 2 |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Memory channels supported by processor | Quad |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| Maximum number of PCI Express lanes | 40 |
| Maximum internal memory supported by processor | 768 GB |
| Idle States | Yes |
| FSB Parity | No |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| ECC supported by processor | Yes |
| Bus type | QPI |
| Processor cache type | Smart Cache |
| Processor cache | 15 MB |
| Conflict-Free processor | No |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor frequency | 2.4 GHz |
| Number of processors installed | 2 |
| Processor model | E5-2620V3 |
| Processor boost frequency | 3.2 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 2011-v3 |
| Processor cores | 6 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C612 |
| Compatible processor series | Intel® Xeon® |
| Processor family | Intel Xeon E5 v3 |
| Memory | |
| Internal memory | 32 GB |
| Memory slots | 16 |
| Maximum internal memory | 1.02 TB |
| Internal memory type | DDR4-SDRAM |
| Storage | |
| Supported storage drive interfaces | SAS, Serial ATA III |
| Hot-swap | Yes |
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 2 TB |
| Supported HDD sizes | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| HDD size | 3.5" |
| HDD interface | Serial ATA III |
| Graphics | |
| Thermal Design Power (TDP) | 85 W |
| On-board graphics card model | Not available |
| Graphics card family | NVIDIA |
| Graphics card | AST2400 |
| Network | |
| LAN controller | Intel® I210-AT |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Number of SATA III connectors | 8 |
| InfiniBand | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type | Rack (2U) |
| Processor special features | |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Secure Key | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel Clear Video Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 0.00 |
| Intel FDI Technology | No |
| Intel Dual Display Capable Technology | No |
| Intel Fast Memory Access | No |
| Processor ARK ID | 83352 |
| Intel Rapid Storage Technology | No |
| CPU configuration (max) | 2 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1620 W |
| Operational conditions | |
| Storage temperature (T-T) | 40 - 70 °C |
| Operating temperature (T-T) | 10 - 30 °C |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Rapid Storage Technology | No |
| Supported HDD sizes | 3.5" |
| InfiniBand | Yes |
| CPU configuration (max) | 2 |
| Chassis type | Rack (2U) |
| Weight & dimensions | |
| Width | 29.5" (750 mm) |
| Height | 17.5" (444 mm) |
| Depth | 3.43" (87 mm) |
| Other features | |
| Graphics card family | NVIDIA |
| Graphics card | AST2400 |
| CPU configuration (max) | 2 |
