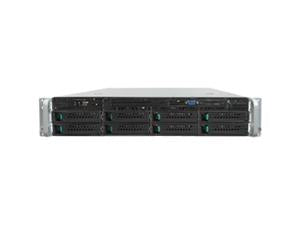

Intel R2308GL4DS9, DDR3-SDRAM, 0 GB, 460 W, Rack (2U)
Intel
Intel R2308GL4DS9 server 0 GB Rack (2U) Intel® Xeon® DDR3-SDRAM 460 W
Part number:
R2308GL4DS9
$1,504.00
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Intel R2308GL4DS9. Processor family: Intel® Xeon®. Internal memory type: DDR3-SDRAM. Total storage capacity: 0 GB, HDD size: 2.5/3.5". Ethernet LAN, Cabling technology: 10/100/1000Base-T(X). Power supply: 460 W, Redundant power supply (RPS) support. Chassis type: Rack (2U)Specifications
| Processor | |
|---|---|
| Thermal Monitoring Technologies | No |
| Processor code | SL8SV |
| Physical Address Extension (PAE) | 32 bit |
| Memory types supported by processor | DDR3-SDRAM |
| Idle States | Yes |
| ECC supported by processor | No |
| Bus type | FSB |
| Conflict-Free processor | No |
| Number of processors installed | 0 |
| Supported processor sockets | LGA 2011 (Socket R) |
| Processor socket | LGA 2011 (Socket R) |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C602 |
| Intelligent Platform Management Interface (IPMI) support | IPMI 2.0 |
| Intel Remote Management Module Support | Yes |
| Compatible processor series | Intel® Xeon® E5 Family |
| Processor family | Intel® Xeon® |
| Memory | |
| Memory slots | 16 |
| Maximum internal memory | 512 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Storage | |
| Hot-swap | Yes |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Optical drive type | No |
| Number of HDDs supported | 8 |
| HDD size | 2.5/3.5" |
| Embedded USB (eUSB) SSD option | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Total number of SATA connectors | 10 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 6 |
| Serial ports quantity | 2 |
| InfiniBand | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
| PCI Express x8 slots | 6 |
| PCI Express x8 (Gen 3.x) slots | 6 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Redundant fans support | Yes |
| Rack rails | No |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Product family | 2U Rack Server Chassis |
| Product series | Intel R2000GL |
| Product codename | Grizzly Pass |
| Supported board | Intel S2600GL |
| Performance | |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Backplanes support | Included |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Rack-Friendly board | Yes |
| Operating system installed | No |
| Integrated BMC with IPMI | Yes |
| Market segment | Server |
| Harmonized System (HS) code | 8473305100 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G145323 |
| Intelligent Platform Management Interface (IPMI) support | IPMI 2.0 |
| Intel Server Management Software | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Software | |
| Operating system installed | No |
| Processor special features | |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel Flex Memory Access | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel Clear Video Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel FDI Technology | No |
| Intel Dual Display Capable Technology | No |
| Intel Fast Memory Access | No |
| Processor ARK ID | 67787 |
| Intelligent Platform Management Interface (IPMI) support | IPMI 2.0 |
| Intel Server Management Software | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| CPU configuration (max) | 2 |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Power | |
| Number of main power supplies | 1 |
| Power supply type | AC |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 460 W |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Heat sink included | Yes |
| Heat sink | 2 |
| Trusted Platform Module (TPM) version | 1.2 |
| Trusted Platform Module (TPM) | Yes |
| Supported processor sockets | LGA 2011 (Socket R) |
| Supported memory types | DDR3-SDRAM |
| Redundant fans support | Yes |
| Rack-Friendly board | Yes |
| Rack rails | No |
| Number of SATA connectors | 10 |
| Number of processors supported | 2 |
| Number of DIMM slots | 16 |
| Intelligent Platform Management Interface (IPMI) support | IPMI 2.0 |
| Intel Server Management Software | Yes |
| Intel Remote Management Module Support | Yes |
| Intel On-Demand Power Redundancy Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Integrated BMC with IPMI | Yes |
| InfiniBand | No |
| Form factor | Custom 16.5" x 16.5" |
| Embedded USB (eUSB) SSD option | Yes |
| CPU configuration (max) | 2 |
| Chassis type | Rack (2U) |
| PCI Express x8 (Gen 3.x) slots | 6 |
| USB ports quantity | 6 |
| Product type | System |
| Packaging content | Integrated Intel Server System supporting 16 DIMMs and 8 SATA ports, Includes: (1) Intel Server Board S2600GL4 in 2U chassis (16 DIMM), (1) Airduct, (1) Standard control panel, (1) Front 1xVGA and 2xUSB in Optical Disk Drive bay, (8) 3.5” Hot Swap Drive Carriers with (1) Hot Swap Backplane, (2) AXXCBL730MSMS SAS cables, (2) CPU heatsinks, (2) Risers: 3x8 PCIe slot on each A2UL8RISER, (1) 460W AC Power Supply |
| Number of 3.5" bays | 8 |
| Number of 2.5" bays | 8 |
| Integrated LAN | 4x 1GbE |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Number of storage drives supported | 8 |
| Intel Server Customization Technology | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Backplanes support | Included |
| Status | Discontinued |
| Redundant fans | Yes |
| Product name | Intel Server System R2308GL4DS9 |
| Market segment | Server |
| Launch date | Q4'12 |
| Chassis dimensions | 16.93 x 27.95 x 3.44" |
| Born on date | Q4 '12 |
| 3.5" HDD support | Supports up to 8 hot-swap 2.5" or 3.5" drives |
| 2.5" HDD support | Supports up to 8 hot-swap 2.5" or 3.5" drives |
| Supported RAID configuration | Software RAID 1,0,10 optional 5 |
| Maximum memory | 512 GB |
| Target market | Small and Medium Business |
| Extended warranty available for purchase (select countries) | Yes |
| Expected discontinuance date | Q1'13 |
| Backplanes | Included |
| Logistics data | |
| Harmonized System (HS) code | 8473305100 |
| Weight & dimensions | |
| Width | 16.9" (430 mm) |
| Height | 3.44" (87.4 mm) |
| Depth | 28" (710 mm) |
| Packaging content | |
| Packaging content | Integrated Intel Server System supporting 16 DIMMs and 8 SATA ports, Includes: (1) Intel Server Board S2600GL4 in 2U chassis (16 DIMM), (1) Airduct, (1) Standard control panel, (1) Front 1xVGA and 2xUSB in Optical Disk Drive bay, (8) 3.5” Hot Swap Drive Carriers with (1) Hot Swap Backplane, (2) AXXCBL730MSMS SAS cables, (2) CPU heatsinks, (2) Risers: 3x8 PCIe slot on each A2UL8RISER, (1) 460W AC Power Supply |
| Heat sink included | Yes |
| Features | |
| Intel Node Manager | Yes |
| Other features | |
| Integrated LAN | 4x 1GbE |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Heat sink | 2 |
| Supported memory types | DDR3-SDRAM |
| Rack-Friendly board | Yes |
| Number of SATA connectors | 10 |
| Number of processors supported | 2 |
| Number of DIMM slots | 16 |
| Integrated BMC with IPMI | Yes |
| Form factor | Custom 16.5" x 16.5" |
| Embedded USB (eUSB) SSD option | Yes |
| CPU configuration (max) | 2 |
| Market segment | Server |
