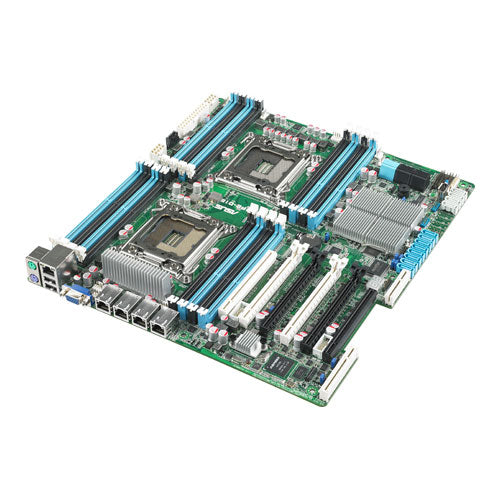

ASUS Z9PE-D16, Intel, LGA 2011 (Socket R), 4, 8, 6.4,7.2 GT/s, DDR3-SDRAM, 512 GB

Description

ASUS Z9PE-D16. Processor manufacturer: Intel, Processor socket: LGA 2011 (Socket R), Processor number of cores supported: 4, 8. Supported memory types: DDR3-SDRAM, Maximum internal memory: 512 GB, Memory channels: Quad-channel. Supported storage drive interfaces: SATA, SATA II, SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2300, On-board graphics card memory: 16 MB. Ethernet interface type: Gigabit Ethernet

Specifications

Technical details
Motherboard chipset	Intel® C602
Serial port headers	0
PCI Express slots quantity	6
Parallel processing technology support	Not supported
On-board graphics card	Yes
Number of processors supported	2
Number of DIMM slots	16
Performance
Motherboard chipset	Intel® C602
RAID levels	0, 1, 5, 10
Certification	US (FCC, CFR47 15 A), Europe (CE, EN55022 / EN55024), Australia (C-TICK)
Processor
Processor manufacturer	Intel
Processor socket	LGA 2011 (Socket R)
Supported QPI	6.4,7.2 GT/s
Processor number of cores supported	4, 8
Memory
Supported memory types	DDR3-SDRAM
Memory channels	Quad-channel
Supported memory clock speeds	1066,1333,1600 MHz
Supported RDIMM clock speeds	1066,1333,1600 MHz
Supported UDIMM clock speeds	1066,1333,1600 MHz
Supported RDIMM module capacity	16GB, 2GB, 4GB, 8GB
Supported UDIMM module capacity	2GB, 4GB, 8GB
Maximum internal memory	512 GB
Maximum RDIMM memory	512 GB
Storage controllers
Supported storage drive interfaces	SATA, SATA II, SATA III
RAID levels	0, 1, 5, 10
Graphics
Parallel processing technology support	Not supported
On-board graphics card	Yes
On-board graphics card model	Aspeed AST2300
On-board graphics card memory	16 MB
Internal I/O
Supported storage drive interfaces	SATA, SATA II, SATA III
USB 2.0 connectors	3
TPM connector	Yes
Serial port headers	0
Parallel connector	No
Number of SATA III connectors	2
Number of SATA II connectors	4
Number of Parallel ATA connectors	0
Number of IEEE1394 connectors	0
Number of COM connectors	2
Number of chassis fan connectors	8
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes

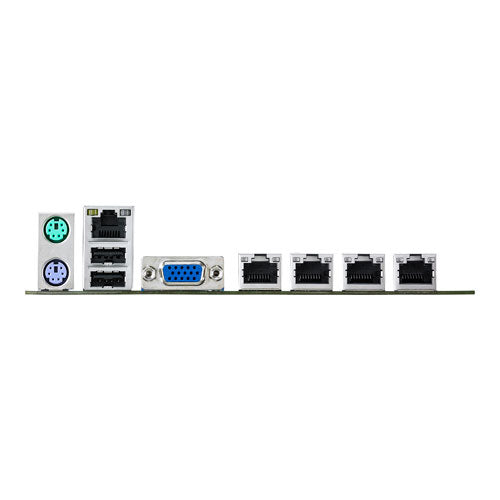

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 2.0 ports quantity	2
eSATA ports quantity	0
VGA (D-Sub) ports quantity	1
Serial ports quantity	0
PS/2 ports quantity	1
Parallel ports quantity	0
Modem (RJ-11) ports	0
Microphone in	No
Firewire (IEEE 1394) ports	0
Headphone outputs	0
Ethernet LAN (RJ-45) ports	4
DVI-I ports quantity	0
DVI-D ports quantity	0
COM ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Features
Motherboard chipset	Intel® C602
Certification	US (FCC, CFR47 15 A), Europe (CE, EN55022 / EN55024), Australia (C-TICK)
Expansion slots
PCI-X slots	0
PCI slots	0
PCI Express x8 slots	0
PCI Express x4 slots	0
PCI Express x16 slots	6
PCI Express x1 slots	0
PCI Express slots version	3.0
PCI Express configurations	1x16
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 90%
Certificates
Certification	US (FCC, CFR47 15 A), Europe (CE, EN55022 / EN55024), Australia (C-TICK)
Weight & dimensions
Width	12" (305 mm)
Depth	13" (330 mm)
Packaging content
Quick installation guide	Yes
Cables included	SATA, USB
Other features
Supported RDIMM clock speeds	1066,1333,1600 MHz
Supported UDIMM clock speeds	1066,1333,1600 MHz
Supported RDIMM module capacity	16GB, 2GB, 4GB, 8GB
Supported UDIMM module capacity	2GB, 4GB, 8GB
Quick installation guide	Yes
PCI Express slots quantity	6
Number of processors supported	2
Number of DIMM slots	16
