140mm, 500-1400 RPM, 1.71 mm-H20, PWM control, Hydraulic bearing, 3 pack, Black
The Riing Quad radiator fan is unique and in its class of its own, combining outstanding reliability, silent operation, unrivaled cooling, and most importantly the fan is engineered with 54 LEDs, split between 4 separate ring’s creating vibrant and gorgeous lighting effects when set through our NeonMaker light editing software.
NeonMaker Light Editing Software
The NeonMaker is a new and innovative approach to adjusting the RGB lighting on the Riing Quad fans, allowing users to customize lighting profiles and orchestrate their own light shows. Personalize the Riing Quad fans with NeonMaker!
SET UP YOUR SPECTACULAR LIGHTING
Create fascinating lighting effects with our NeonMaker Light Editing Software, energize your PC with dynamic RGB lighting across your build.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.
PWM Controlled Fan with 9-Fan Blade Design
Riing Quad’s PWM controlled fan is designed with 9 blades and is engineered to generate higher airflow without compromising on ultra-silent operation.
Extraordinary Cooling Performance
A specially designed fan blade allows even stronger flow, the Riing Quad fans ensure the cooling performance more efficient under intense operation.
Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads allow the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.
Thermaltake

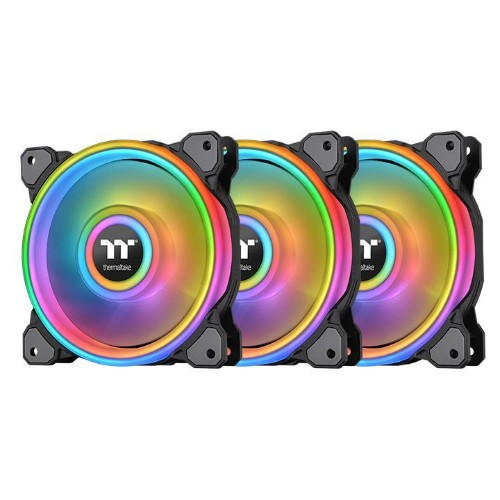

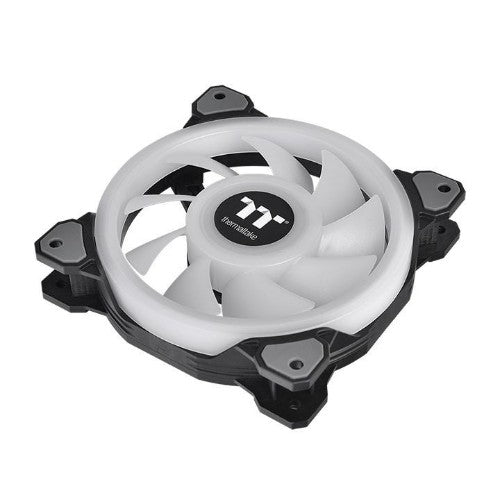

Thermaltake Riing Quad 14 RGB Computer case Fan 5.51" (14 cm) Black 3 pc(s)
Part number:
CL-F089-PL14SW-B
$174.06
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Riing Quad SeriesThe Riing Quad radiator fan is unique and in its class of its own, combining outstanding reliability, silent operation, unrivaled cooling, and most importantly the fan is engineered with 54 LEDs, split between 4 separate ring’s creating vibrant and gorgeous lighting effects when set through our NeonMaker light editing software.
NeonMaker Light Editing Software
The NeonMaker is a new and innovative approach to adjusting the RGB lighting on the Riing Quad fans, allowing users to customize lighting profiles and orchestrate their own light shows. Personalize the Riing Quad fans with NeonMaker!
SET UP YOUR SPECTACULAR LIGHTING
Create fascinating lighting effects with our NeonMaker Light Editing Software, energize your PC with dynamic RGB lighting across your build.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.
PWM Controlled Fan with 9-Fan Blade Design
Riing Quad’s PWM controlled fan is designed with 9 blades and is engineered to generate higher airflow without compromising on ultra-silent operation.
Extraordinary Cooling Performance
A specially designed fan blade allows even stronger flow, the Riing Quad fans ensure the cooling performance more efficient under intense operation.
Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads allow the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 9-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1400 RPM |
| Bearing type | Hydraulic |
| Noise level (low speed) | 18 dB |
| Noise level (high speed) | 26.1 dB |
| Type | Fan |
| Fan diameter | 5.51" (14 cm) |
| Maximum airflow | 60.17 cfm |
| Maximum air pressure | 1.71 mmH2O |
| Number of fans | 3 fan(s) |
| Mean time between failures (MTBF) | 40000 h |
| Quantity per pack | 3 pc(s) |
| Number of fan blades | 9 |
| Design | |
| Fan connector | 9-pin |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Illumination LED | Yes |
| Number of LEDs | 54 |
| Number of fan blades | 9 |
| Technical details | |
| Noise level (low speed) | 18 dB |
| Noise level (high speed) | 26.1 dB |
| Type | Fan |
| Fan diameter | 5.51" (14 cm) |
| Maximum airflow | 60.17 cfm |
| Maximum air pressure | 1.71 mmH2O |
| Number of fans | 3 fan(s) |
| Fan connector | 9-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 9-pin |
| Power | |
| Rated voltage | 12 V |
| Starting voltage | 9 V |
| Rated current | 0.12 A |
| Maximum current | 0.9 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 5.51 x 5.51 x 0.984" (140 x 140 x 25 mm) |
| Fan weight | 8.4 oz (238 g) |
| Endurance | |
| Mean time between failures (MTBF) | 40000 h |
| Indication | |
| Illumination colour | Multi |

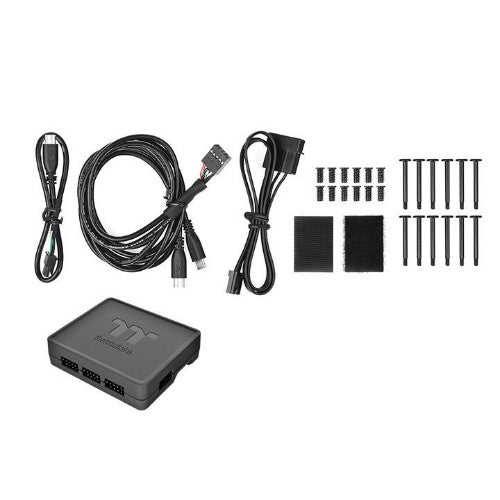

| Packaging content | |
| Screws included | Yes |
| Number of screws | 24 |
| Velcro cable strap | Yes |
