Intel BBS7200APL, Intel, LGA 3647 (Socket P), Intel® Xeon Phi™, Phi, 64, 68, 384 GB
Intel

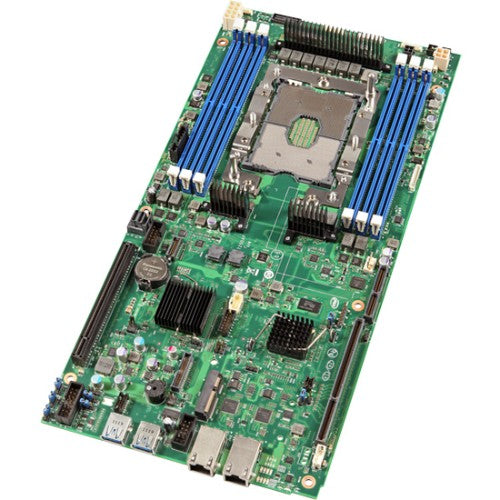

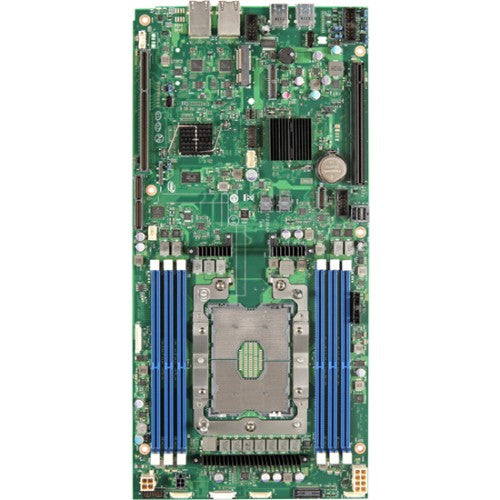

Intel BBS7200APL motherboard Intel® C612 LGA 3647 (Socket P)
Part number:
BBS7200APL
$795.45
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Intel BBS7200APL. Processor manufacturer: Intel, Processor socket: LGA 3647 (Socket P), Compatible processor series: Intel® Xeon Phi™. Supported memory types: DDR4-SDRAM, Maximum internal memory: 384 GB, Memory channels: Hexa-channel. Ethernet interface type: Gigabit Ethernet. Component for: Server, Motherboard chipset: Intel® C612, Market segment: Server. Width: 6.8" (172.7 mm), Depth: 14.2" (360.7 mm)Specifications
| Technical details | |
|---|---|
| Motherboard chipset | Intel® C612 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| On-board graphics card | Yes |
| Number of processors supported | 1 |
| Number of DIMM slots | 6 |
| Intel Trusted Execution Technology | Yes |
| Intel Quiet System Technology (QST) | Yes |
| Intel Quick Resume Technology | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Fast Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Component for | Server |
| Graphics output | Internal RGB Video Header |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 2 |
| Thermal Design Power (TDP) | 215 W |
| Product type | Server/Workstation Board |
| Maximum number of PCI Express lanes | 32 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Memory bandwidth supported by processor (max) | 512 GB/s |
| ECC supported by processor | Yes |
| Total number of SATA connectors | 1 |
| Intel Rapid Storage Technology enterprise | Yes |
| Maximum internal memory supported by processor | 384 GB |
| Memory bandwidth (max) | 512 GB/s |
| Status | Discontinued |
| Market segment | Server |
| Launch date | Q2'16 |
| Supported RAID configuration | Intel® Embedded Server RAID Technology (ESRT2) |
| Maximum memory | 384 GB |
| Last change | 63903513 |
| Expected discontinuance date | Q2'18 |
| Form factor | Custom 6.8" x 14.2" |
| Last receipt attributes date | Sunday, December 30, 2018 |
| Last order date | Sunday, September 30, 2018 |
| End of life date announce | Monday, April 30, 2018 |
| Additional information URL | http://www.intel.com/content/www/us/en/support/server-products/server-boards/single-socket-server-boards/intel-server-board-s7200ap-family.html |
| Riser slot 1 number of lanes | 16 |
| Riser slot 2 number of lanes | 16 |
| Performance | |
| Motherboard ARK ID | 95779 |
| Motherboard chipset | Intel® C612 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel Quiet System Technology (QST) | Yes |
| Intel Quick Resume Technology | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Fast Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Component for | Server |
| Processor | |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 215 W |
| Maximum number of PCI Express lanes | 32 |
| Memory bandwidth supported by processor (max) | 512 GB/s |
| ECC supported by processor | Yes |
| Maximum internal memory supported by processor | 384 GB |
| Compatible processor series | Intel® Xeon Phi™ |
| Intel Xeon series | Phi |
| Processor socket | LGA 3647 (Socket P) |
| Product family | Single-socket server board |
| Product series | Intel® Server Board S7200AP Family |
| Product codename | Adams Pass |
| Processor number of cores supported | 64, 68 |
| Memory | |
| Memory bandwidth (max) | 512 GB/s |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Hexa-channel |
| ECC | Yes |
| Maximum internal memory | 384 GB |
| Graphics | |
| On-board graphics card | Yes |
| Internal I/O | |
| Total number of SATA connectors | 1 |
| Number of SATA connectors | 1 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Motherboard ARK ID | 95779 |
| Motherboard chipset | Intel® C612 |
| Component for | Server |
| Market segment | Server |
| Harmonized System (HS) code | 8473301180 |
| Commodity Classification Automated Tracking System (CCATS) | G074226+ |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Rack-Friendly board | Yes |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
| PCI Express CEM revision | 3.0 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel Rapid Storage Technology enterprise | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel Quiet System Technology (QST) | Yes |
| Intel Quick Resume Technology | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Fast Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Server Management Software | Yes |
| Intel Server Customization Technology | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Quiet Thermal Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel Efficient Power Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Advanced Management Technology | Yes |
| Integrated systems available | No |
| Design | |
| Product family | Single-socket server board |
| Product series | Intel® Server Board S7200AP Family |
| Product codename | Adams Pass |
| Logistics data | |
| Harmonized System (HS) code | 8473301180 |
| Weight & dimensions | |
| Width | 6.8" (172.7 mm) |
| Depth | 14.2" (360.7 mm) |
| Other features | |
| Thermal Design Power (TDP) | 215 W |
| Motherboard ARK ID | 95779 |
| Number of processors supported | 1 |
| Number of DIMM slots | 6 |
| Intel Xeon series | Phi |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Graphics output | Internal RGB Video Header |
| Commodity Classification Automated Tracking System (CCATS) | G074226+ |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| PCI Express CEM revision | 3.0 |
| Packaging content | (10) Intel Server Board S7200APL |
| Chassis type | Rack (2) |
| Intel Node Manager | Yes |
