Intel Xeon Silver 4208 (11MB Cache, 2.1GHz), 16GB DDR4-SDRAM (2933MHz), LAN, 750W
This product guide provides essential technical and pre-sales information on the SR630 server, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 server and consider its use in IT solutions.
Lenovo

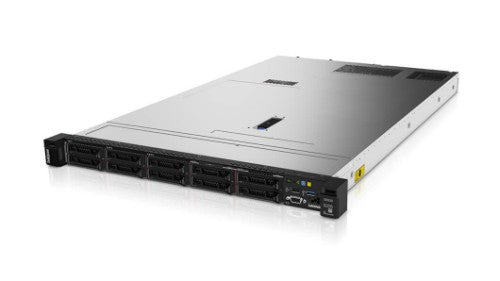

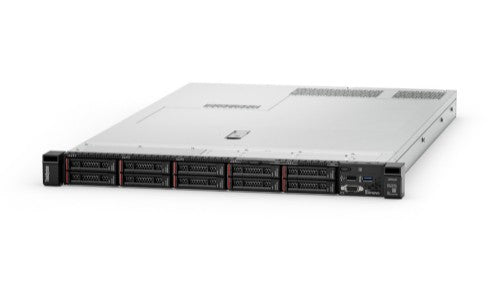

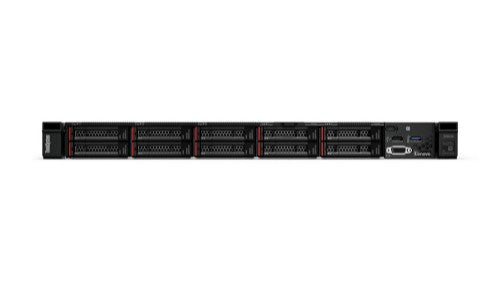

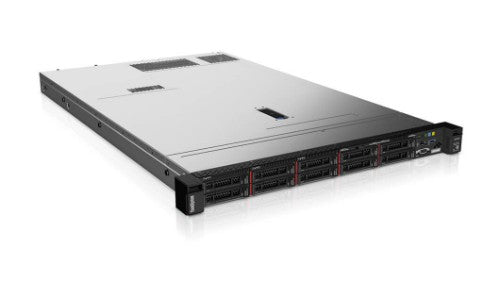

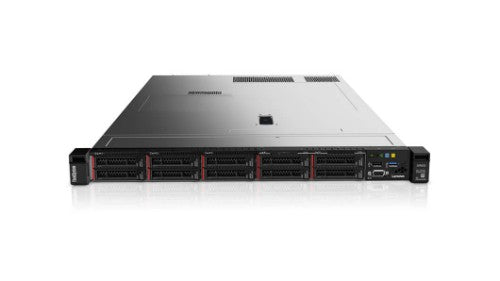

Lenovo ThinkSystem SR630 server Rack (1U) Intel Xeon Silver 4208 2.1 GHz 16 GB DDR4-SDRAM 750 W
Part number:
7X02A0CENA
$2,576.28
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Intel Xeon Silver 4208 (11MB Cache, 2.1GHz)
- 16GB (2933MHz) DDR4-SDRAM (1 x 16)
Description
Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.This product guide provides essential technical and pre-sales information on the SR630 server, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR630 server and consider its use in IT solutions.
Specifications
| Processor | |
|---|---|
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Thermal Design Power (TDP) | 85 W |
| Tcase | 78 °C |
| Supported instruction sets | AVX-512 |
| Scalability | 2S |
| Processor threads | 16 |
| Processor package size | 76.0 x 56.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Cascade Lake |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Maximum number of PCI Express lanes | 48 |
| Maximum internal memory supported by processor | 1.02 TB |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Processor cache type | L3 |
| Processor cache | 11 MB |
| Processor frequency | 2.1 GHz |
| Number of processors installed | 1 |
| Processor model | 4208 |
| Processor boost frequency | 3.2 GHz |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 8 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel® C624 |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 24 |
| Memory clock speed | 2933 MHz |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Storage | |
| Card reader integrated | No |
| Optical drive type | No |
| Graphics | |
| On-board graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Network | |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Expansion slots | |
| PCI Express x8 slots | 1 |
| PCI Express slots version | 3.0 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Rack mounting | Yes |
| Optical drive type | No |
| Chassis type | Rack (1U) |
| Performance | |
| Compatible operating systems | Microsoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64TSP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3 |
| Performance management | XClarity Enterprise |
| Trusted Platform Module (TPM) | Yes |
| Display | |
| Built-in display | No |
| Software | |
| Compatible operating systems | Microsoft Windows Server 2016 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 7.4 Red Hat Enterprise Linux 7.3 Red Hat Enterprise Linux 6.9 Server x64 Edition SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP2 SUSE Linux Enterprise Server 11 for AMD64/EM64TSP4 VMware vSphere 6.5 (ESXi) Update 1 VMware vSphere 6.5 (ESXi) VMware vSphere 6.0 (ESXi) Update 3 |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 193390 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply input frequency | 50 - 60 Hz |
| Power supply | 750 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating altitude | 0 - 120078.7" (0 - 3050 m) |
| Technical details | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Trusted Platform Module (TPM) | Yes |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Rack mounting | Yes |
| Chassis type | Rack (1U) |
| Sustainability certificates | ENERGY STAR |
| Management features | |
| Performance management | XClarity Enterprise |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 17.1" (434 mm) |
| Height | 1.69" (43 mm) |
| Depth | 28.1" (715 mm) |
| Other features | |
| Built-in display | No |
