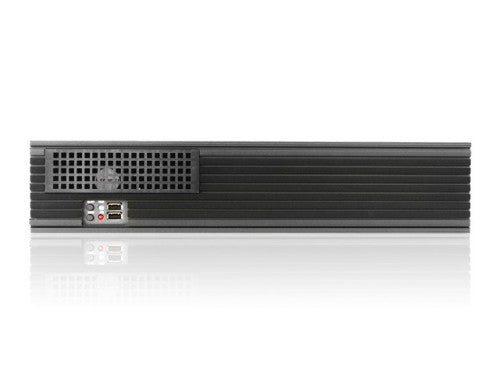

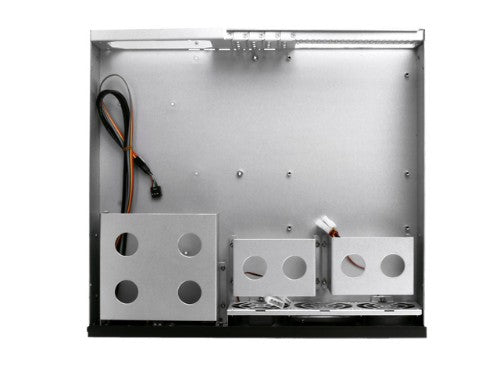

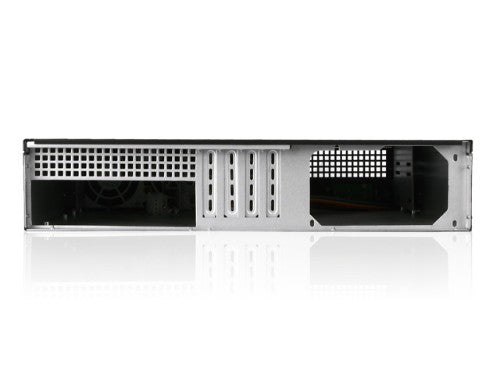

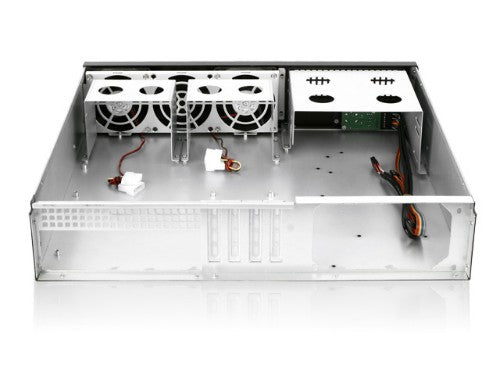

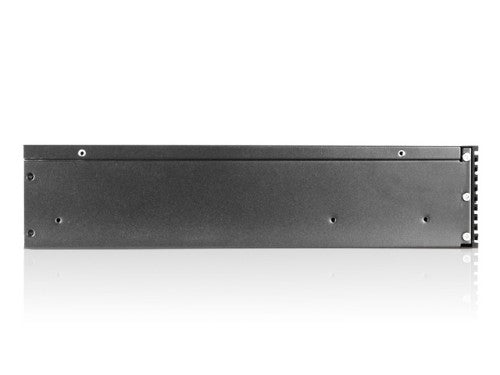

D-300L-B6SA - 2U Compact Server/Desktop microATX Chassis
- Industrial Chassis with 15" in Depth.
- Supports Front Access USB2.0 x2.
- Power and HDD LED.
- Power and Reset Switch.
- Support ATX PS2 Power Supply.
- Support 4 x Low Profile Add-on Cards.
iStarUSA
iStarUSA D-300L-B6SA computer case Desktop Black
Part number:
D-300L-B6SA
Sale price
$511.70
Regular price
$730.43
Save
$218.73
30%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
D-213-MATX is a reliable and stable 2U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 15" deep and has optional two intake 80mm cooling fans at front for air ventilation. In addition, D-213-MATX supports a standard ATX PS2 power supply to meet regular server system applications.- Industrial Chassis with 15" in Depth.
- Supports Front Access USB2.0 x2.
- Power and HDD LED.
- Power and Reset Switch.
- Support ATX PS2 Power Supply.
- Support 4 x Low Profile Add-on Cards.
Specifications
| Design | |
|---|---|
| Material thickness | 0.0472" (1.2 mm) |
| Material | Aluminum, Zinc steel |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Rack mounting | Yes |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Suitable for | Home/Office |
| Side window | No |
| Reset button | Yes |
| LED indicators | HDD, Power |
| Certification | RoHS |
| Product colour | Black |
| Number of expansion slots | 4 |
| Type | Server |
| Form factor | Desktop |
| Rack capacity | 2U |
| Technical details | |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Rack mounting | Yes |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Supported HDD sizes | 3.5" |
| Suitable for | Home/Office |
| Side window | No |
| Reset button | Yes |
| Product colour | Black |
| Number of expansion slots | 4 |
| Type | Server |
| Form factor | Desktop |
| Material | |
| Material | Aluminum, Zinc steel |
| Material thickness | 0.0472" (1.2 mm) |
| Indication | |
| LED indicators | HDD, Power |
| Ergonomics | |
| Reset button | Yes |
| LED indicators | HDD, Power |
| Certificates | |
| Certification | RoHS |
| Power supply | |
| Power supply included | No |
| Ports & interfaces | |
| Audio input | No |
| Audio output | No |
| USB 2.0 ports quantity | 2 |
| Cooling | |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 80 mm |
| Storage | |
| Supported HDD sizes | 3.5" |
| Weight & dimensions | |
| Width | 19" (482.6 mm) |
| Depth | 15.4" (389.9 mm) |
| Height | 3.5" (88.9 mm) |
| Material thickness | 0.0472" (1.2 mm) |
| Other features | |
| On/off switch | Yes |
| Power LED | Yes |
| Dimensions (WxDxH) | 19 x 15.4 x 3.5" (482.6 x 389.9 x 88.9 mm) |
