D-414L-7, 4U, 3.5", 5.25", USB2.0 x2
- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 120mm x3 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- 14 Slot Butterfly Backplane
The iStarUSA industrial computing chassis D-414L-7, 4U chassis with 14 slot backplane support all size standard add-on cards. D-414L-7 has exceptional thermal cooling system with hot-swappable system fans. Ideal solution for telecommunication, industrial automation, control system, and data requisition application. Additional storage with support of BPU series HDD converter cage to mange large data files and improves transfer bandwidth.
iStarUSA

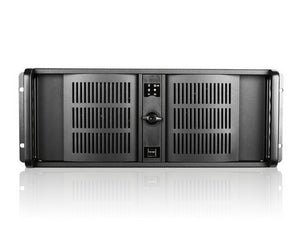

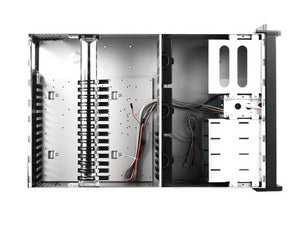

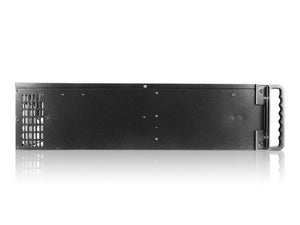

iStarUSA D-414L-7 computer case Rack Black
Part number:
D-414L-7
Sale price
$319.20
Regular price
$455.65
Save
$136.45
30%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
4U 14 Slots Industrial PC Rackmount Chassis- Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
- Front Access USB2.0 x2
- 120mm x3 Cooling Fan
- Removable Air Filter
- Power and HDD LED
- Power and Alarm Reset Switch
- 14 Slot Butterfly Backplane
The iStarUSA industrial computing chassis D-414L-7, 4U chassis with 14 slot backplane support all size standard add-on cards. D-414L-7 has exceptional thermal cooling system with hot-swappable system fans. Ideal solution for telecommunication, industrial automation, control system, and data requisition application. Additional storage with support of BPU series HDD converter cage to mange large data files and improves transfer bandwidth.
Specifications
| Technical details | |
|---|---|
| Number of 5.25" bays | 7 |
| Number of 3.5" bays | 1 |
| Number of internal 3.5" bays | 1 |
| Rack mounting | Yes |
| Supported HDD sizes | 3.5" |
| Side window | No |
| Reset button | Yes |
| Product colour | Black |
| Number of expansion slots | 14 |
| Type | Server |
| Form factor | Rack |
| Material | |
| Material | Aluminum, Zinc steel |
| Indication | |
| LED indicators | Fan fail, HDD, Power, Temperature |
| Ergonomics | |
| Reset button | Yes |
| LED indicators | Fan fail, HDD, Power, Temperature |
| Design | |
| Material | Aluminum, Zinc steel |
| Number of 5.25" bays | 7 |
| Number of 3.5" bays | 1 |
| Number of internal 3.5" bays | 1 |
| Rack mounting | Yes |
| Side window | No |
| Reset button | Yes |
| LED indicators | Fan fail, HDD, Power, Temperature |
| Product colour | Black |
| Number of expansion slots | 14 |
| Type | Server |
| Form factor | Rack |
| Rack capacity | 4U |
| Ports & interfaces | |
| Audio input | No |
| Audio output | No |
| USB 2.0 ports quantity | 2 |
| Cooling | |
| Front fans installed | 3x 120 mm |
| Storage | |
| Supported HDD sizes | 3.5" |
| Weight & dimensions | |
| Width | 19" (482.6 mm) |
| Depth | 27.9" (708.7 mm) |
| Height | 7" (177.8 mm) |
| Other features | |
| On/off switch | Yes |
| Power LED | Yes |
| Dimensions (WxDxH) | 19 x 27.9 x 7" (482.6 x 708.7 x 177.8 mm) |
